2-5 Ton Hydraulic Beam Trolley Weaving Beam Trolley Hydraulic Textile

Minimum Order Quantity : 5 Pieces Price : $2,000.00 - $3,500.00/Pieces
Packaging Details : 1.Steel Pallet&amp;Stretch Wrapping Film for FCL(full container loaded)<br> 2.Wooden Box for LCL(less than container loaded) Supply Ability : 5000 Piece/Pieces per Month
Place of Origin: Jiangsu, China Brand Name: xianchuang
Model Number: BLC-01

Detail Information

Warranty: 13 Months, The Core Components Are Guaranteed For 1 Year Color: Red
Customized Support: OEM Usage: Warp Beam Transport And Lift, Weaving Loom Machine
Material: High-duty Steel Structure Wheel: Four-wheel
Product Name: Cloth Roller For Toyota Air Jet Loom Machine Core Components: Bearing, Gearbox, Motor, Pressure Vessel, Gear
Power: 0.25kw,50 Hz Voltage: According To Actual Condition
Dimension(L*W*H): As Per Customer's Fabric Width Fabric Width: 1.2-4.5meters
Max Winding Diameter: 1500mm (standard:1200mm) Edge Alignment Error: Less Than 5mm
Port: NINGBO/SHANGHAI
High Light:

Weavers Beam Trolley

,

2-5 ton Weaving Beam Trolley

,

Weaving Beam Trolley Hydraulic

Product Description

Top Quality Economic Hydraulic Textile trolley Weaving Beam Trolley

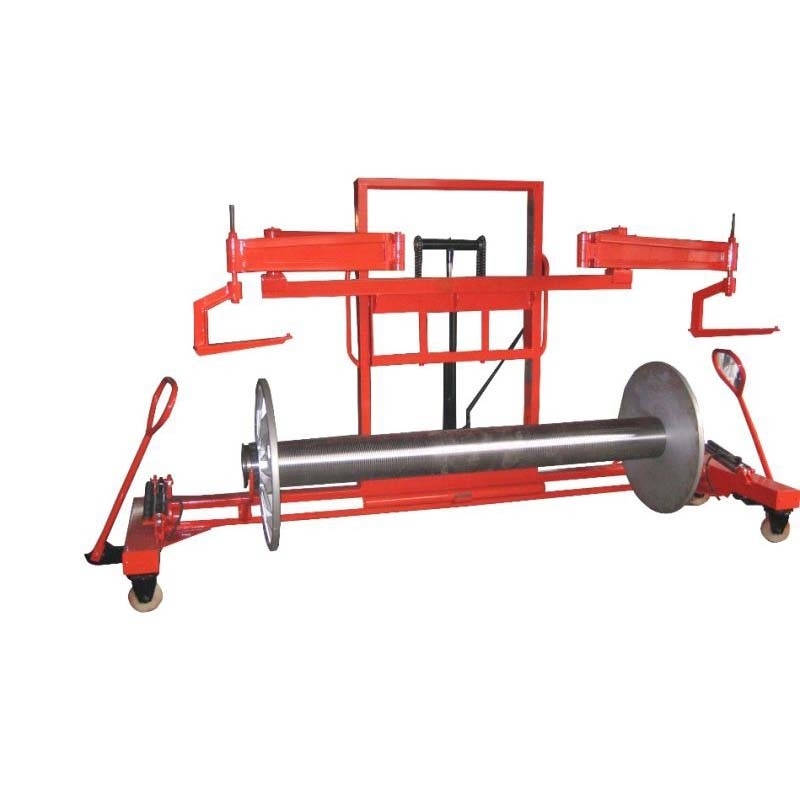

2-5 Ton Hydraulic Beam Trolley Weaving Beam Trolley Hydraulic Textile 0



Brand xianchuang
Omin BLC-01
Name Heald Frame Beam Lifter and Carrier
Material steel
Colour red
Size as customized
Characteristic Convenience And Effective

 1.Alternative materials: mainly use high-quality square tubes, round steel, medium and thick plates, and export standard hydraulic components

 2. Mainly production process: according to the design drawings, precision welded and formed in sheet-metal workshop, with high-performance oil pump in accordance with the export quality standards to enhance the hydraulic performance. The surface is treated with anti-rust paint to meet the customer's production demand

3. Useful:

Suitable for Bottom Beam transporting, inserting in weaving Machines; warp beam weighing up to 1500kgs and an additional loading capacity of 200kgs for the heald frame.

Apply beam barrel Diameter Φ150 -Φ400mm, beam width 1500-3900 mm, Aluminum Flange Diameter Φ800 - Φ1250 mm.

4. Features:

Four wheel synchronization, any Angle to turn and walk

Hydraulic vertical lifting of the heald frame, fast speed, high efficiency

Double cylinder synchronous lifting, balanced and stable, beam with heald frame on the machine at the same time

Lower bracket hook horizontal sliding adjustment of the upper shaft spacing

2-5 Ton Hydraulic Beam Trolley Weaving Beam Trolley Hydraulic Textile 22-5 Ton Hydraulic Beam Trolley Weaving Beam Trolley Hydraulic Textile 42-5 Ton Hydraulic Beam Trolley Weaving Beam Trolley Hydraulic Textile 62-5 Ton Hydraulic Beam Trolley Weaving Beam Trolley Hydraulic Textile 82-5 Ton Hydraulic Beam Trolley Weaving Beam Trolley Hydraulic Textile 102-5 Ton Hydraulic Beam Trolley Weaving Beam Trolley Hydraulic Textile 12

More Products

2-5 Ton Hydraulic Beam Trolley Weaving Beam Trolley Hydraulic Textile 14

Production Line

2-5 Ton Hydraulic Beam Trolley Weaving Beam Trolley Hydraulic Textile 16

Company Information

2-5 Ton Hydraulic Beam Trolley Weaving Beam Trolley Hydraulic Textile 18

Certifications

2-5 Ton Hydraulic Beam Trolley Weaving Beam Trolley Hydraulic Textile 202-5 Ton Hydraulic Beam Trolley Weaving Beam Trolley Hydraulic Textile 22

Packaging & Shipping

2-5 Ton Hydraulic Beam Trolley Weaving Beam Trolley Hydraulic Textile 24

FAQ

2-5 Ton Hydraulic Beam Trolley Weaving Beam Trolley Hydraulic Textile 26

1.Why we can choose you?
1)Reliable-We are a company with independent production workshops,we dedicate in win-win
2)Professional-We have complete manufacturing system and excellent after-sales service



2.What can you buy from us?
Design,Develop and Sell Textile Machinery and Storgage Machinery,Manufacturing and Sales of Textile Machinery and Automation Device



3.How about the price?Can you make it cheaper?
The price depend on the specifications of your product(size,quantity,raw material,etc)
Final quotation according to receiving full description of the product you want.



4.How can we guarantee the quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;



5.What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Cash;
