Automatic Fabric Winding Machine For Inspection Table With Led In Textile Industry

Price :	$2,000.00 - $3,000.00/Pieces	Packaging Details :	Steel Pallet&Stretch Wrapping Film for FCL(full container loaded)
Supply Ability :	100 Piece/Pieces per Month

Place of Origin:	Jiangsu, China	Brand Name:	Xianchuang

Detail Information
Applicable Industries:	Weaving Factory, Textile Factory	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Bearing, Gearbox, Motor, Pressure Vessel, Gear	Condition:	New
Application:	Weaving Loom Machine	Automatic Grade:	Automatic
Voltage:	380v, According To Actual Condition	Dimension(LWH):	As Customized
Warranty:	1 Year	Product Name:	Cloth Roll Winder For Inspection Table With Led
Usage:	Weaving Loom Machine	Power:	0.25kw,50 Hz
Dimension:	As Per Customer's Fabric Width	Fabric Width:	1.2-4.5meters
Max Winding Diameter:	1500mm	Edge Alignment Error:	Less Than 5mm
Speed:	Synchronized With Weaving Machines	Item:	Fabric Roll Winder
After Warranty Service:	Video Technical Support, No Service, Online Support, Spare Parts, Field Maintenance And Repair Service	Local Service Location:	None
After-sales Service Provided:	Free Spare Parts, Video Technical Support, Online Support, Field Maintenance And Repair Service	Port:	NINGBO/SHANGHAI
High Light:	Automatic Fabric Winding Machine , Fabric Winding Machine For Inspection Table , automatic motor winding machine

Product Description

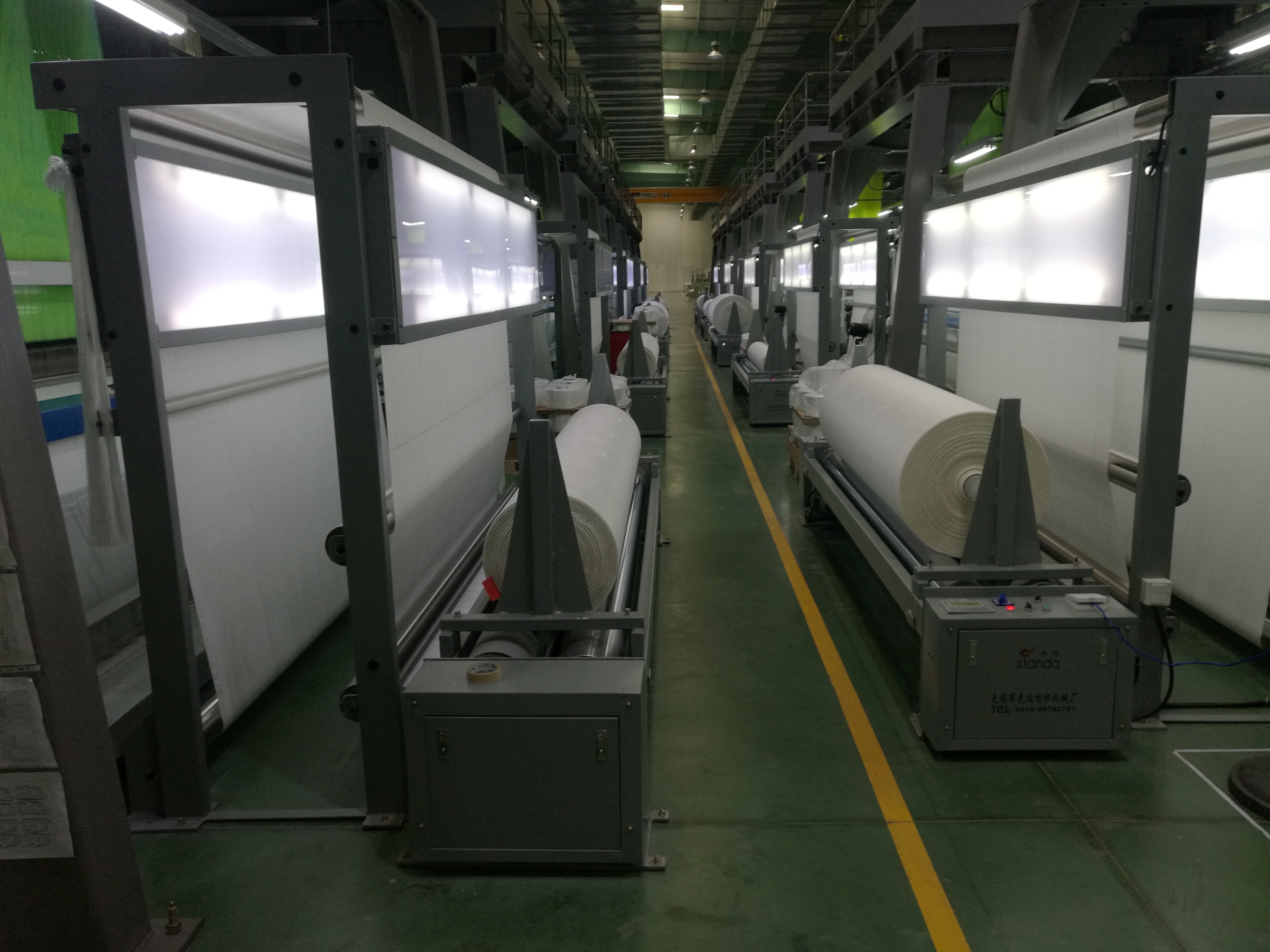

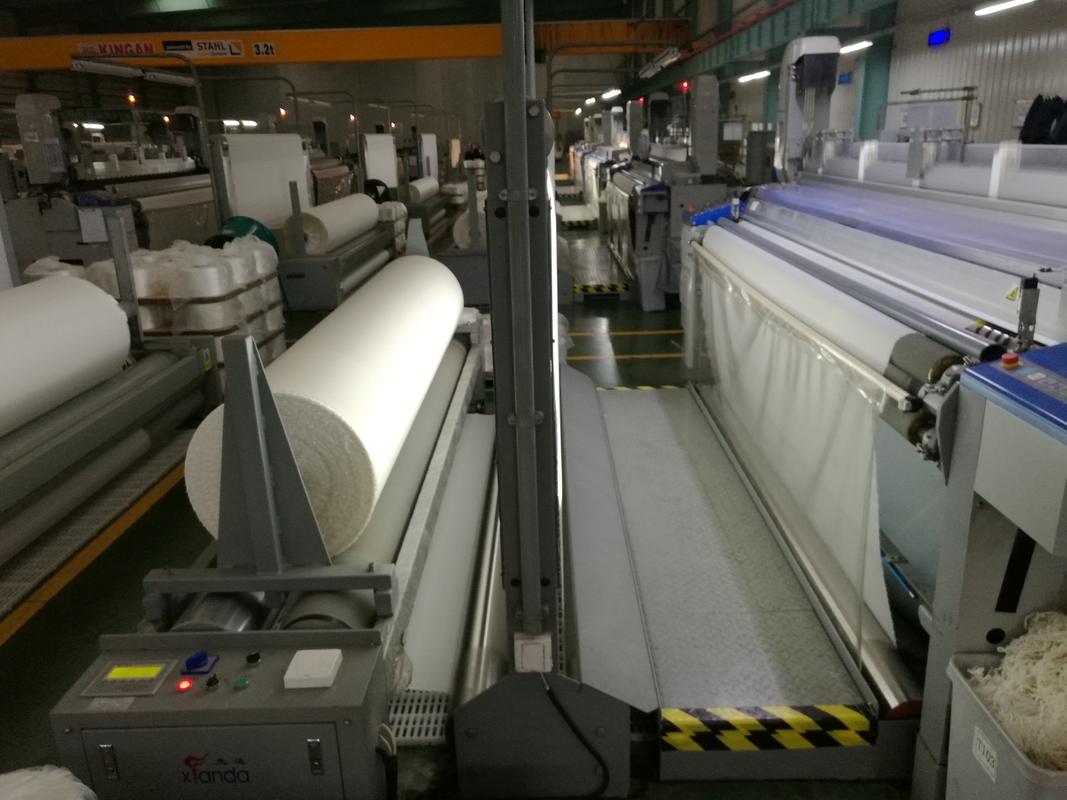

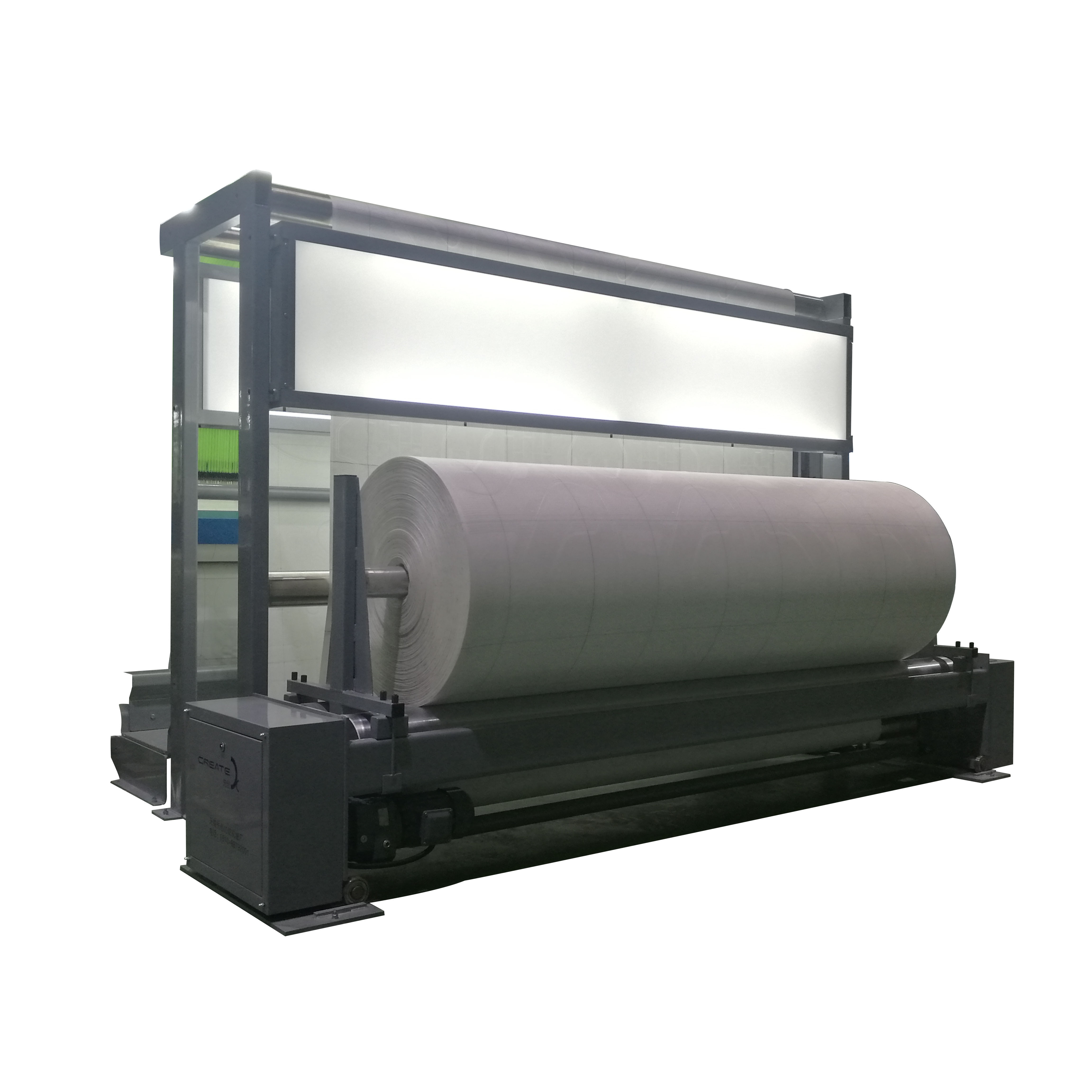

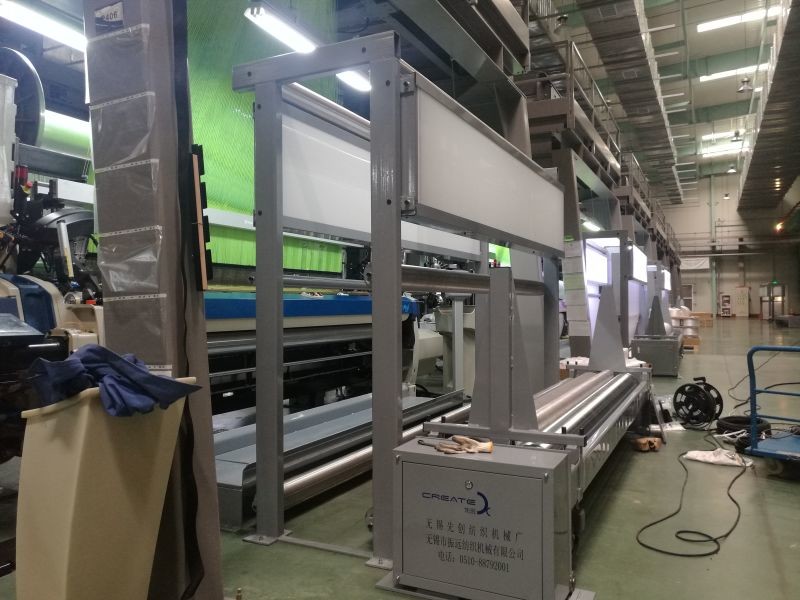

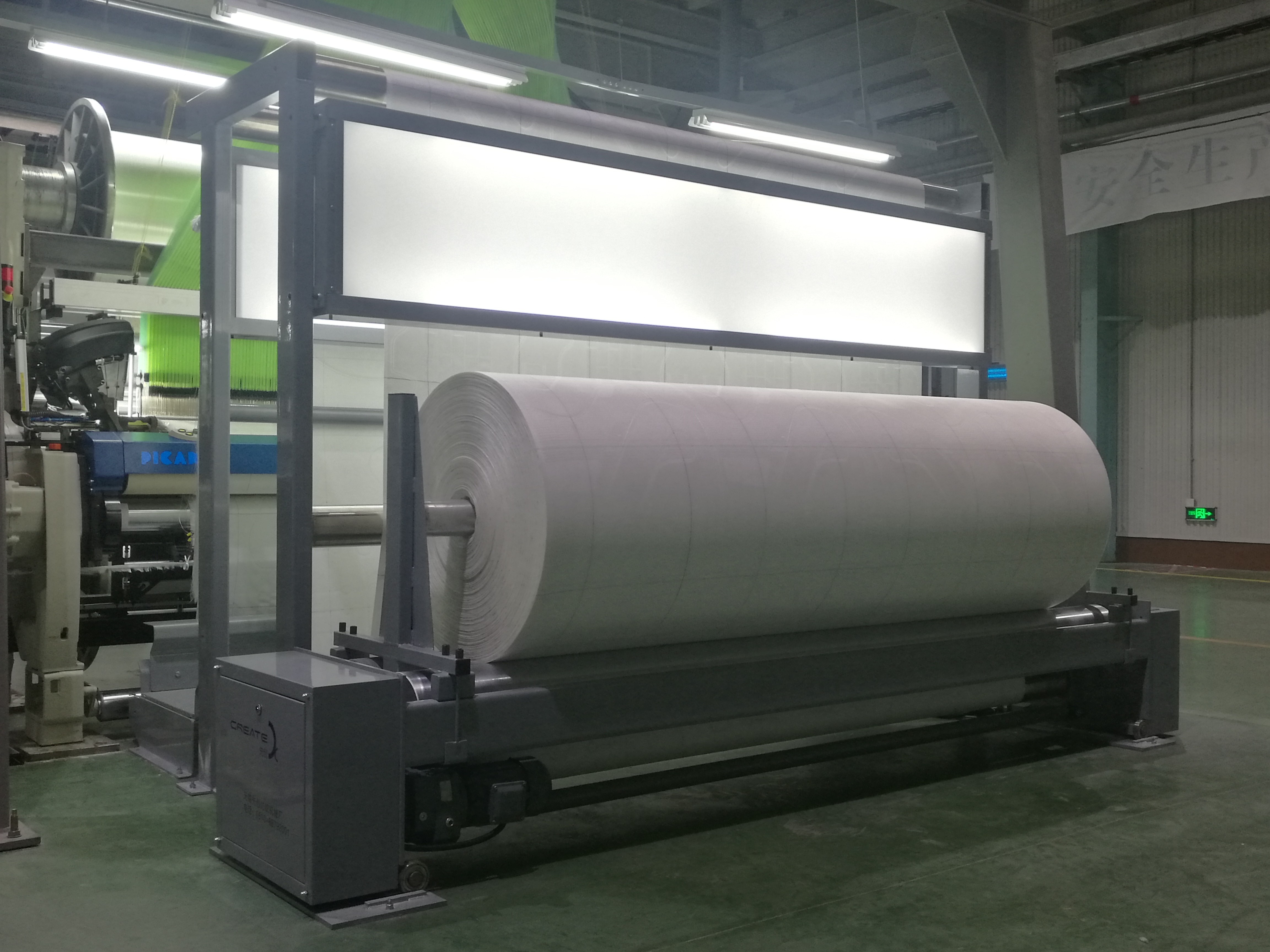

Cloth Roll Winder machine For Inspection Table With Led Used in Textile Industry

Cloth Roll Winder For Inspection Table With Led
Place of Origin	Jiangsu, China
Brand Name	Xianchuang
Warranty	The core components are guaranteed for 1 year
Applicable Industries	Weaving Factory, Textile Factory
Usage	Weaving Loom Machine
Power	0.25kw,50 Hz
Voltage	According to actual condition
Max winding diameter	1500mm (standard:1200mm)
Speed	Synchronized with Weaving Machines
Item	Fabric Roll Winder

Horizontal Cloth Winder can be widely used to connect air jet, rapier, projectile, water

jet and other manufacturers of weaving machines.It can be used for rolling common cotton and chemical fiber fabric, as well as industrial cloth such as glass fiber and geotextile.

1. Less fabric waste and increase efficiency

2. Fast and easily handled, one operator can take care of multiple machines

3. High degree of automation, can automatically track the start, stop and speed changes of the loom, to set the tension for smooth winding.

4. Variable working width is possible

Main Technical Features

Technical Specifications

* Speed:Synchronized with Weaving Machines

* Fabric Width:1.2-4.5meters

* Max winding diameter:1500mm (standard:1200mm)

* Edge-alignment Error:≤5mm

* Dimension(L*W*H):As per customer's fabric width

* Electric Specs:3Phase-380V; 50HZ(can be adjusted to suit for difffferent countries.)

* Frequency converter control electrical mode

* Automatic winding, stop, manual reversal and other operation functions
machine structure

* A-frameplatform with anti-fatigue material

* A power-driven trolley composed of gears, chains and motors

* A Tension control platform

* Non-slip foot pedal

* Option - Inspection tablewith LED

* Option - Man-machine interface operation mode

* Option - Accurate length measuring giving accuracy of ± 0.01%

* Option - Pneumatic press roller device designed for tighter cloth winding
