Customized Cloth Roll Winder for Electric Motor Winding Machine

Minimum Order Quantity : 5 Pieces Price : $2,000.00 - $3,000.00/Pieces
Packaging Details : 1.Steel Pallet&amp;Stretch Wrapping Film for FCL(full container loaded)<br> 2.Wooden Box for LCL(less than container loaded) Supply Ability : 5000 Piece/Pieces per Month
Place of Origin: Jiangsu, China Brand Name: Xianchuang

Detail Information

Condition: New Applicable Industries: Weaving Factory
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Use: Weaving Machinery
Showroom Location: None Product Name: Cloth Roller For Toyota Air Jet Loom Machine
Warranty: The Core Components Are Guaranteed For 1 Year Core Components: Bearing, Gearbox, Motor, Pressure Vessel, Gear
Power: 0.25kw,50 Hz Voltage: According To Actual Condition
Dimension(L*W*H): As Per Customer's Fabric Width Fabric Width: 1.2-4.5meters
Max Winding Diameter: 1500mm (standard:1200mm) Edge Alignment Error: Less Than 5mm
Speed: Synchronized With Weaving Machines After Warranty Service: Video Technical Support, No Service, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None Port: NINGBO/SHANGHAI

Product Description

Customized Cloth Roll Winder for Electric Motor Winding Machine

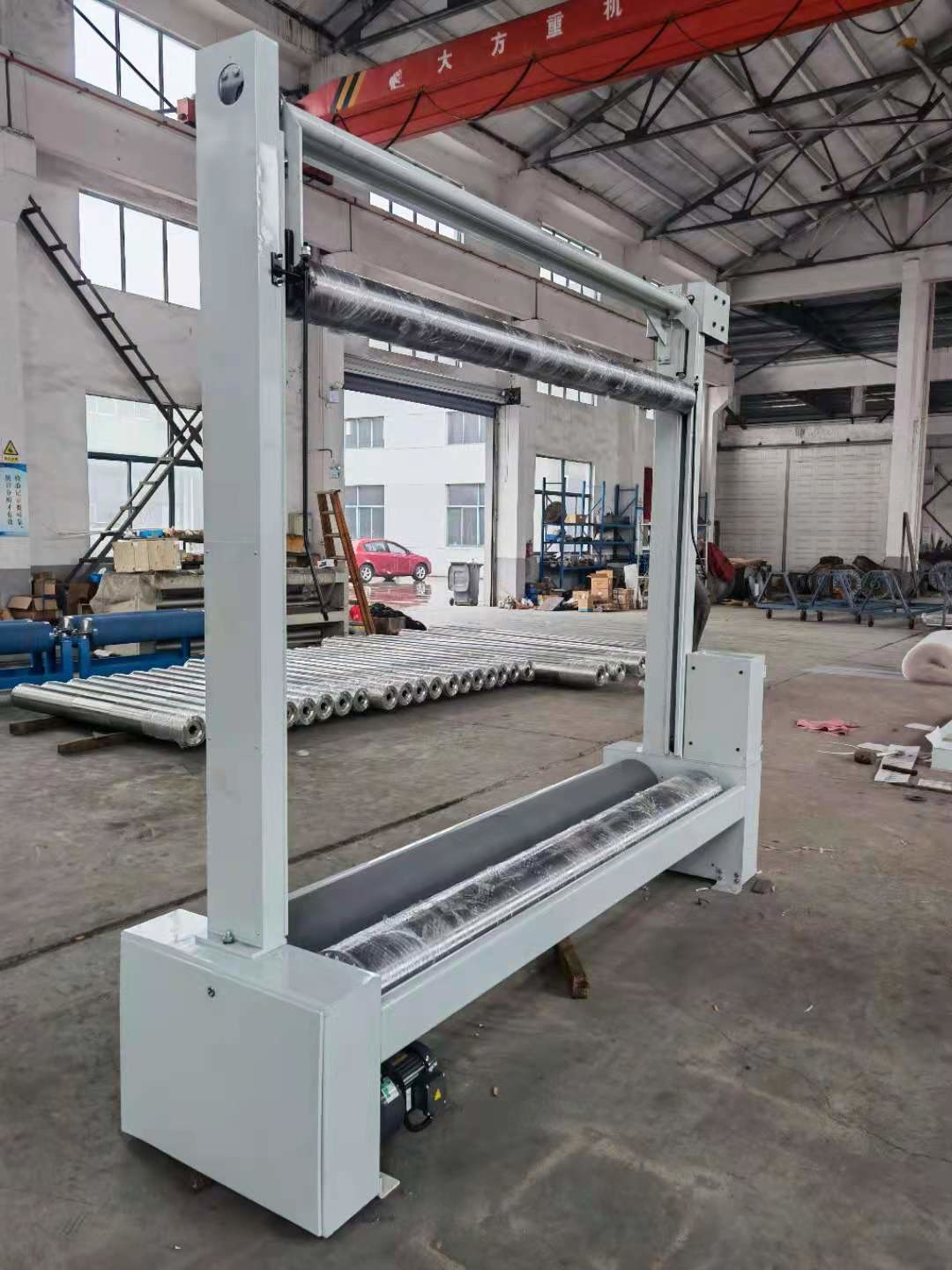

Customized Cloth Roll Winder for Electric Motor Winding Machine 0



Brand xianchuang
Omin CRW-PR
Name Cloth Roll Winder for Electric Press Roller Lifting
Material steel
Colour grey
Size as customized
Characteristic Synchronized



Horizontal Cloth Winder can be widely used to connect air jet, rapier, projectile, water jet and other manufacturers of weaving machines.It can be used for rolling common cotton and chemical fiber fabric, as well as industrial cloth such as glass fiber and geotextile.

1.Less fabric waste and increase efficiency

2.Fast and easily handled, one operator can take care of multiple machines

3.High degree of automation, can automatically track the start, stop and speed changes of the loom, to set the tension for smooth winding.

4.Variable working width is possible



  Technical Specifications

Speed:Synchronized with Weaving Machines

Fabric Width:1.2-4.5meters

Max winding diameter:1500mm (standard:1200mm)

Edge-alignment Error:≤5mm

Dimension(L*W*H):As per customer's fabric width

     Electric Specs:3Phase-380V; 50HZ(can be adjusted to suit for difffferent countries.)

     Frequency converter control electrical mode

    Automatic winding, stop, manual reversal and other operation functions

 machine structure

  The diameter of the two winding rollers is Φ217mm, one roller is covered with anti-skid rubber, the other roller is galvanized or sprayed with plastic.

  Non-slip foot pedal

  Electric press roller lifting device designed for tighter cloth

  Option - Man-machine interface operation mode

  Option - Inspection table with LED

  Option - Accurate length measuring giving accuracy of ± 0.01%

  Option - Semi-automatic doffing device(pneumatic roll ejection device

  Option - Manual doffing device(Manual roll ejection device)

Option - Automatic fabric selvedge shifter for thick selvedge.

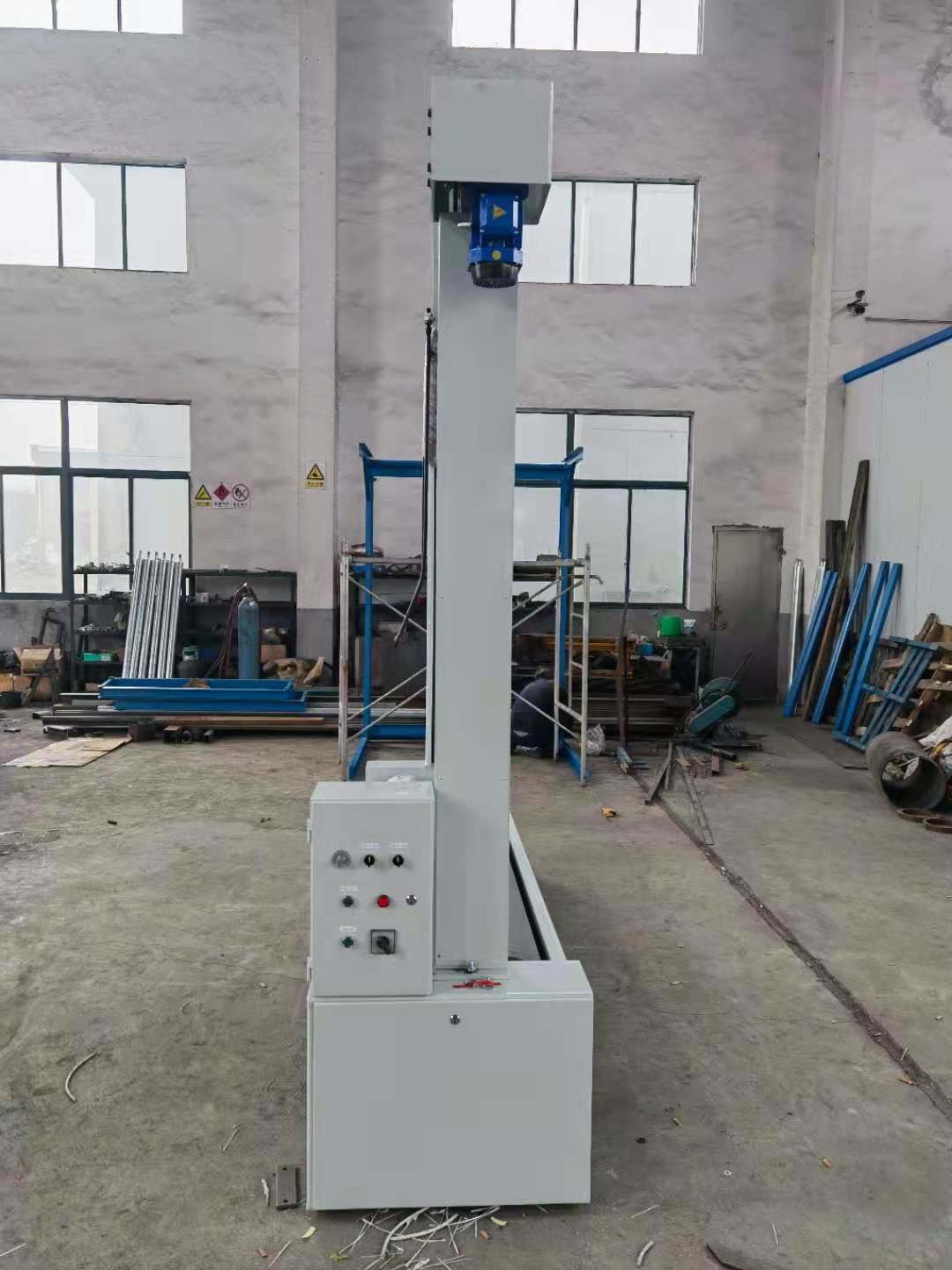

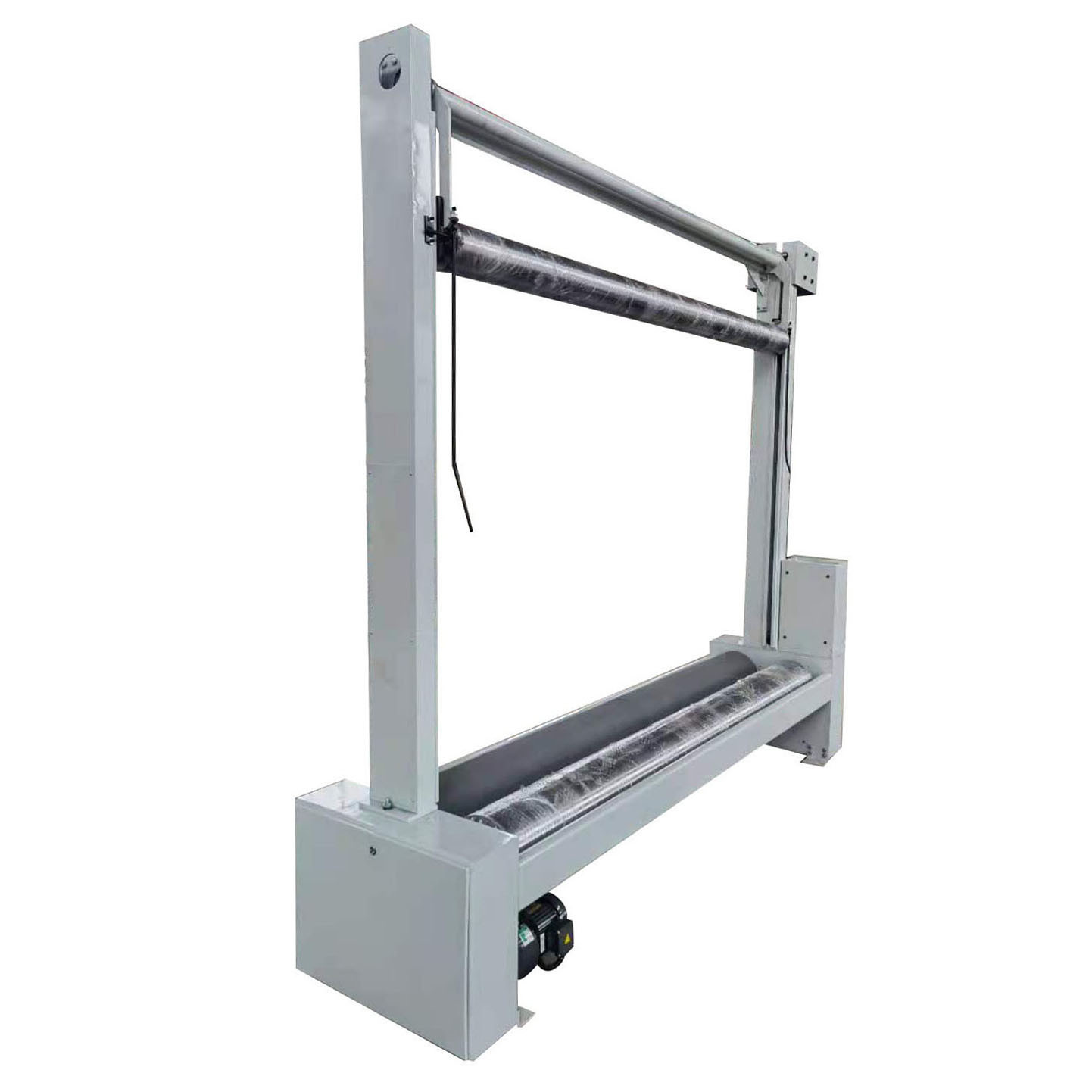

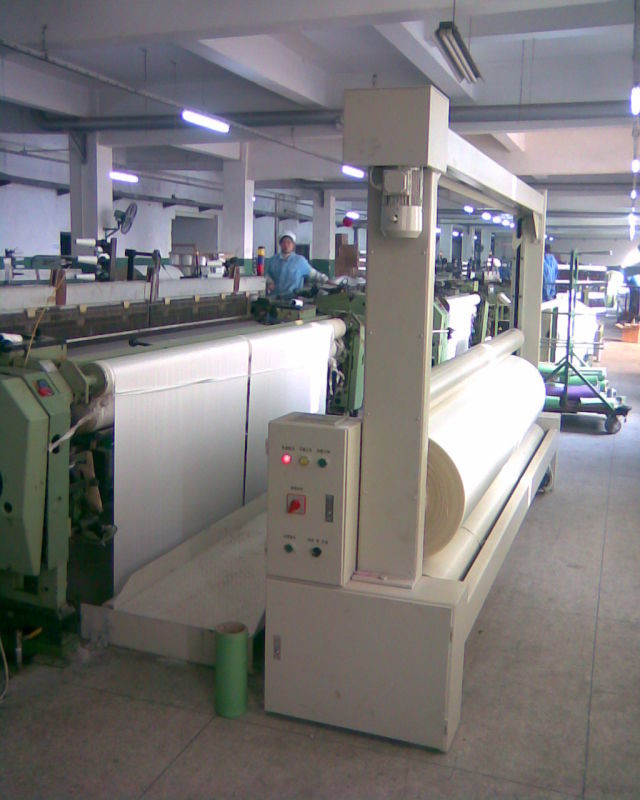

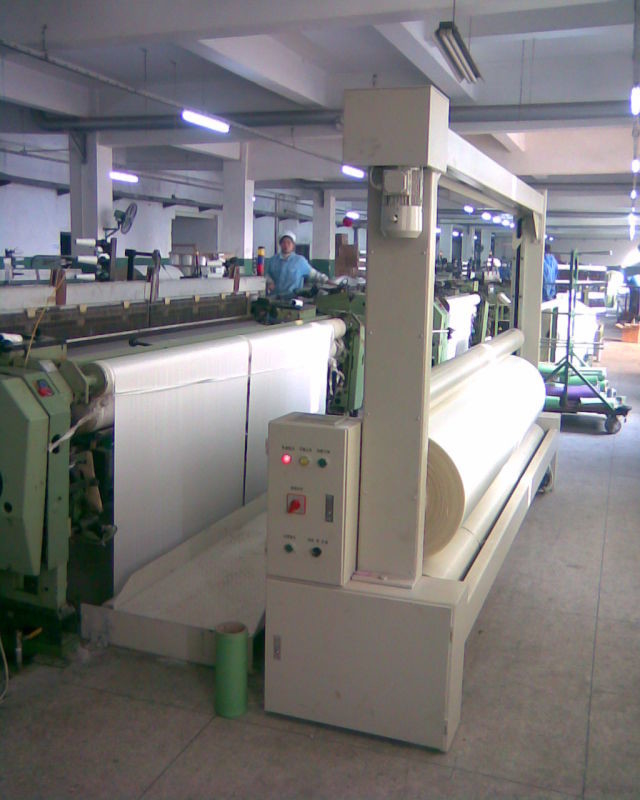

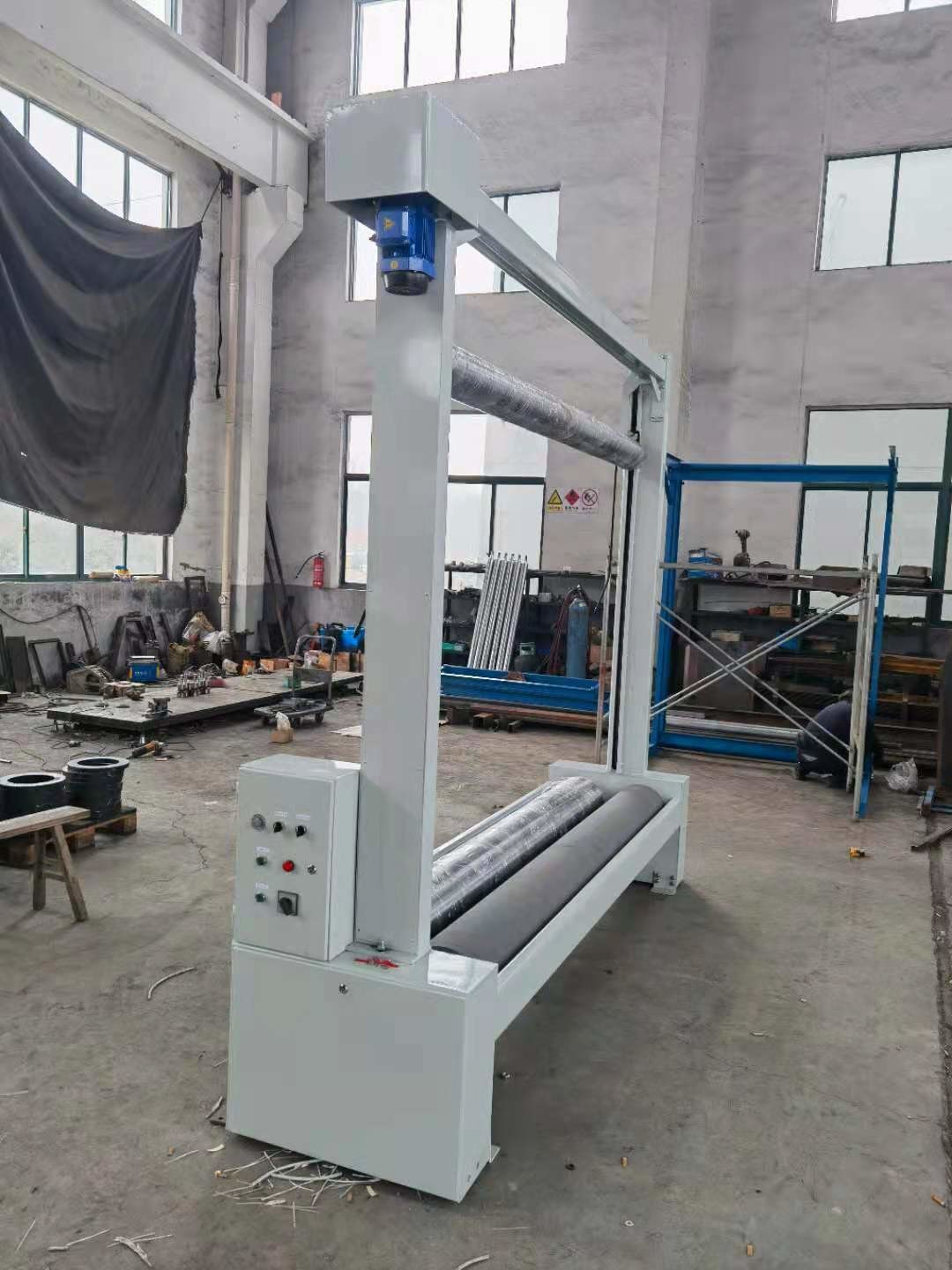

 Customized Cloth Roll Winder for Electric Motor Winding Machine 2Customized Cloth Roll Winder for Electric Motor Winding Machine 4Customized Cloth Roll Winder for Electric Motor Winding Machine 6Customized Cloth Roll Winder for Electric Motor Winding Machine 8Customized Cloth Roll Winder for Electric Motor Winding Machine 10

More Products

Customized Cloth Roll Winder for Electric Motor Winding Machine 12

Production Line

Customized Cloth Roll Winder for Electric Motor Winding Machine 14

Company Information

Customized Cloth Roll Winder for Electric Motor Winding Machine 16

Certifications

Customized Cloth Roll Winder for Electric Motor Winding Machine 18Customized Cloth Roll Winder for Electric Motor Winding Machine 20

Packaging & Shipping

Customized Cloth Roll Winder for Electric Motor Winding Machine 22

FAQ

Customized Cloth Roll Winder for Electric Motor Winding Machine 24

1.Why we can choose you?
1)Reliable-We are a company with independent production workshops,we dedicate in win-win
2)Professional-We have complete manufacturing system and excellent after-sales service



2.What can you buy from us?
Design,Develop and Sell Textile Machinery and Storgage Machinery,Manufacturing and Sales of Textile Machinery and Automation Device



3.How about the price?Can you make it cheaper?
The price depend on the specifications of your product(size,quantity,raw material,etc)
Final quotation according to receiving full description of the product you want.



4.How can we guarantee the quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;



5.What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Cash;
