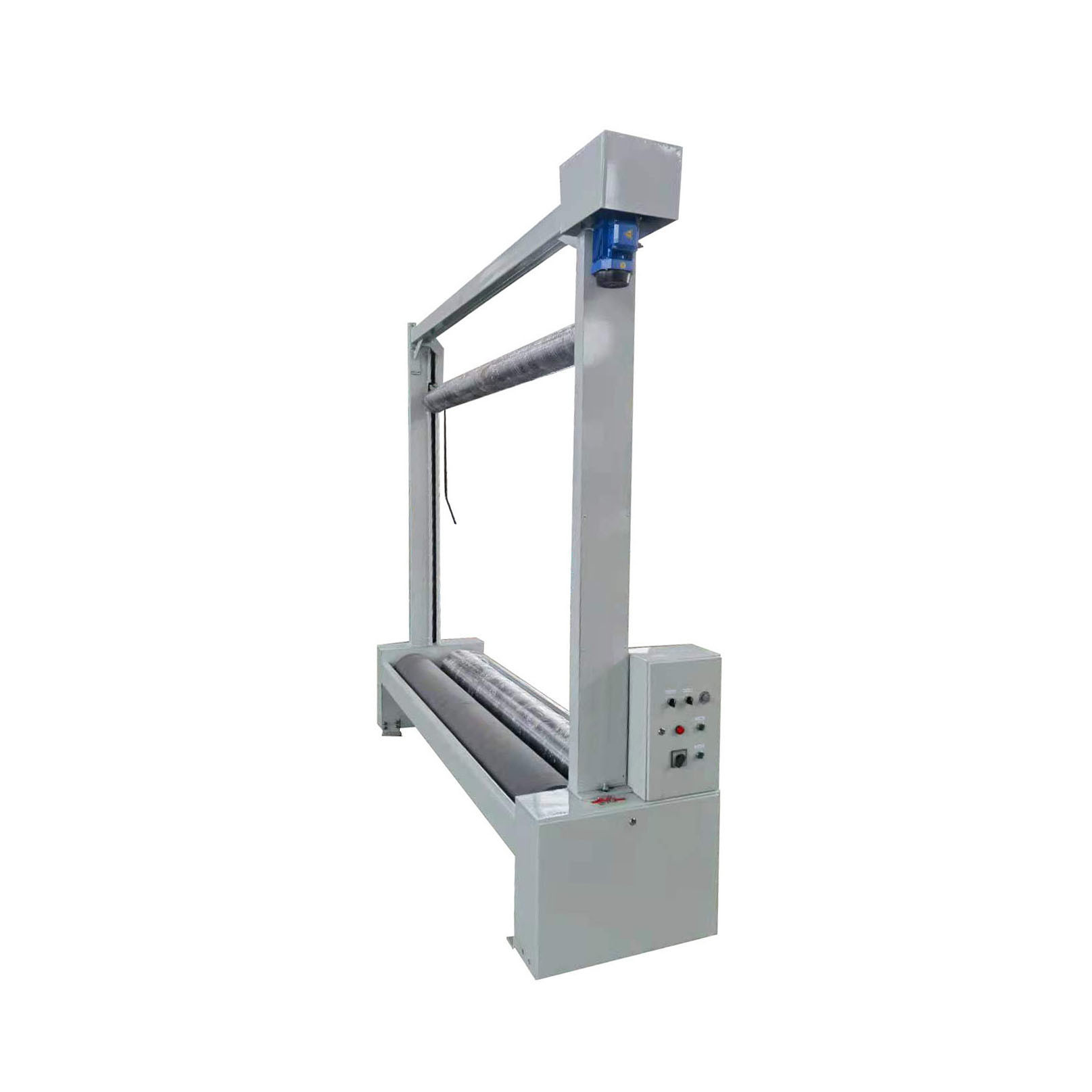

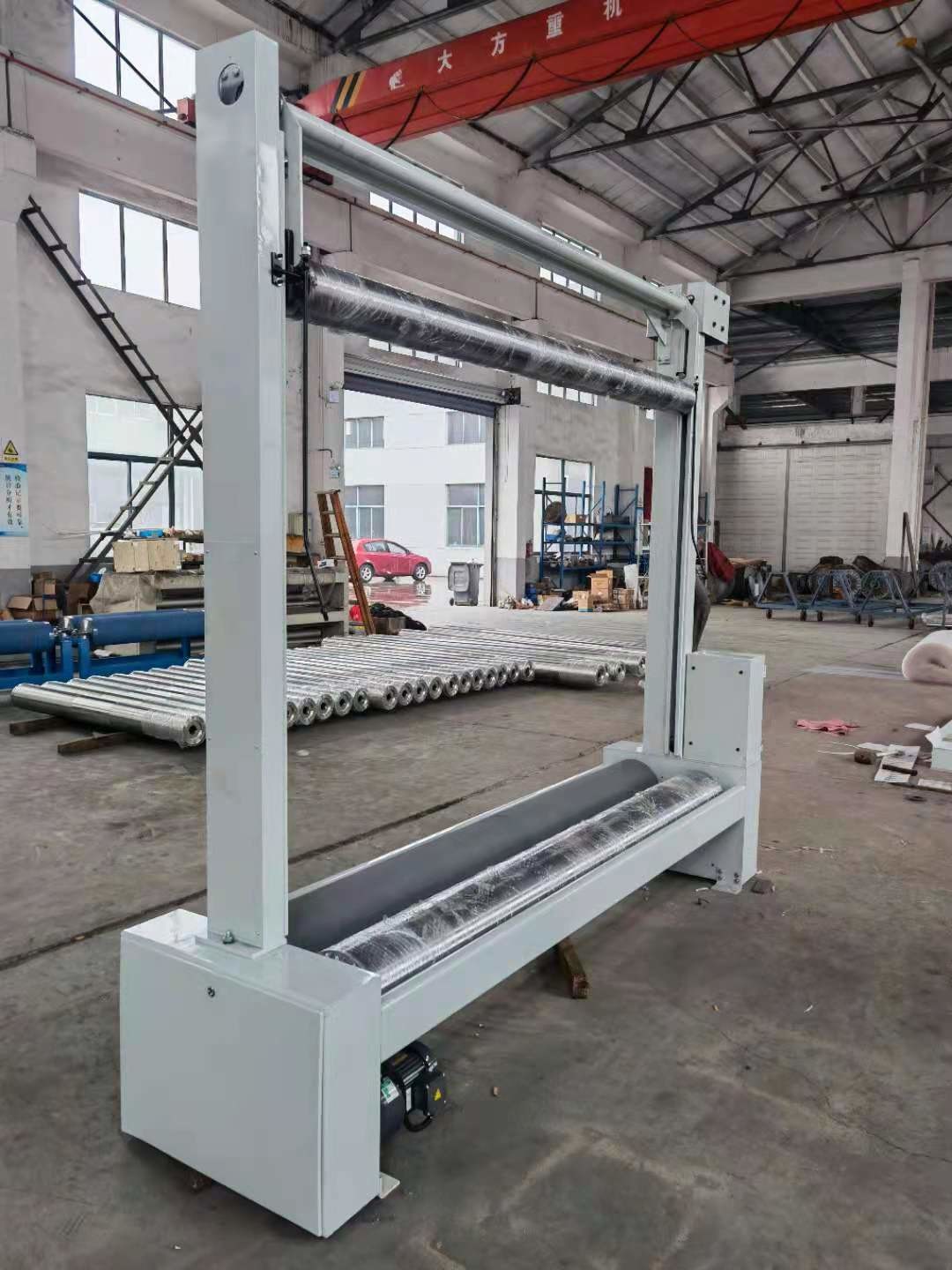

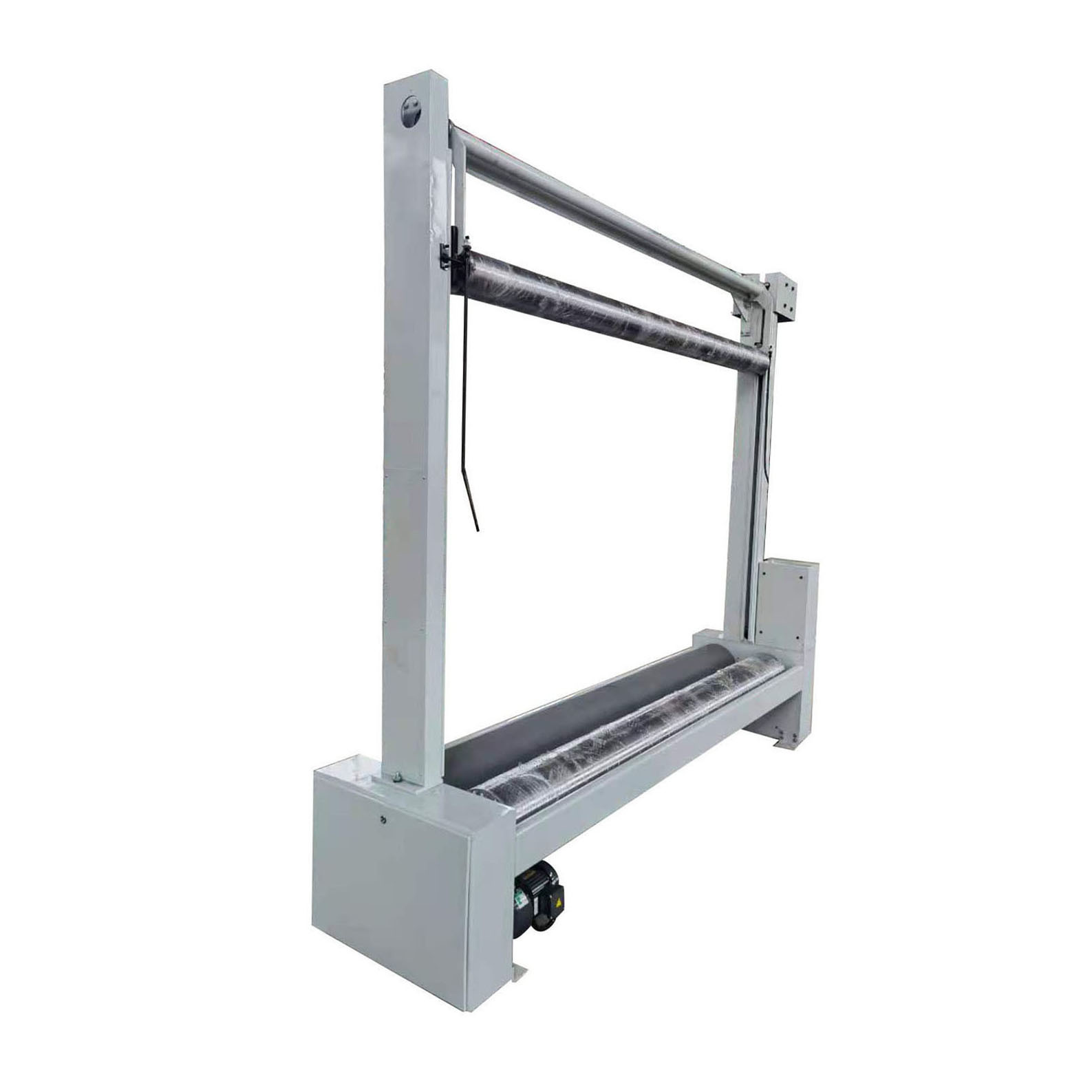

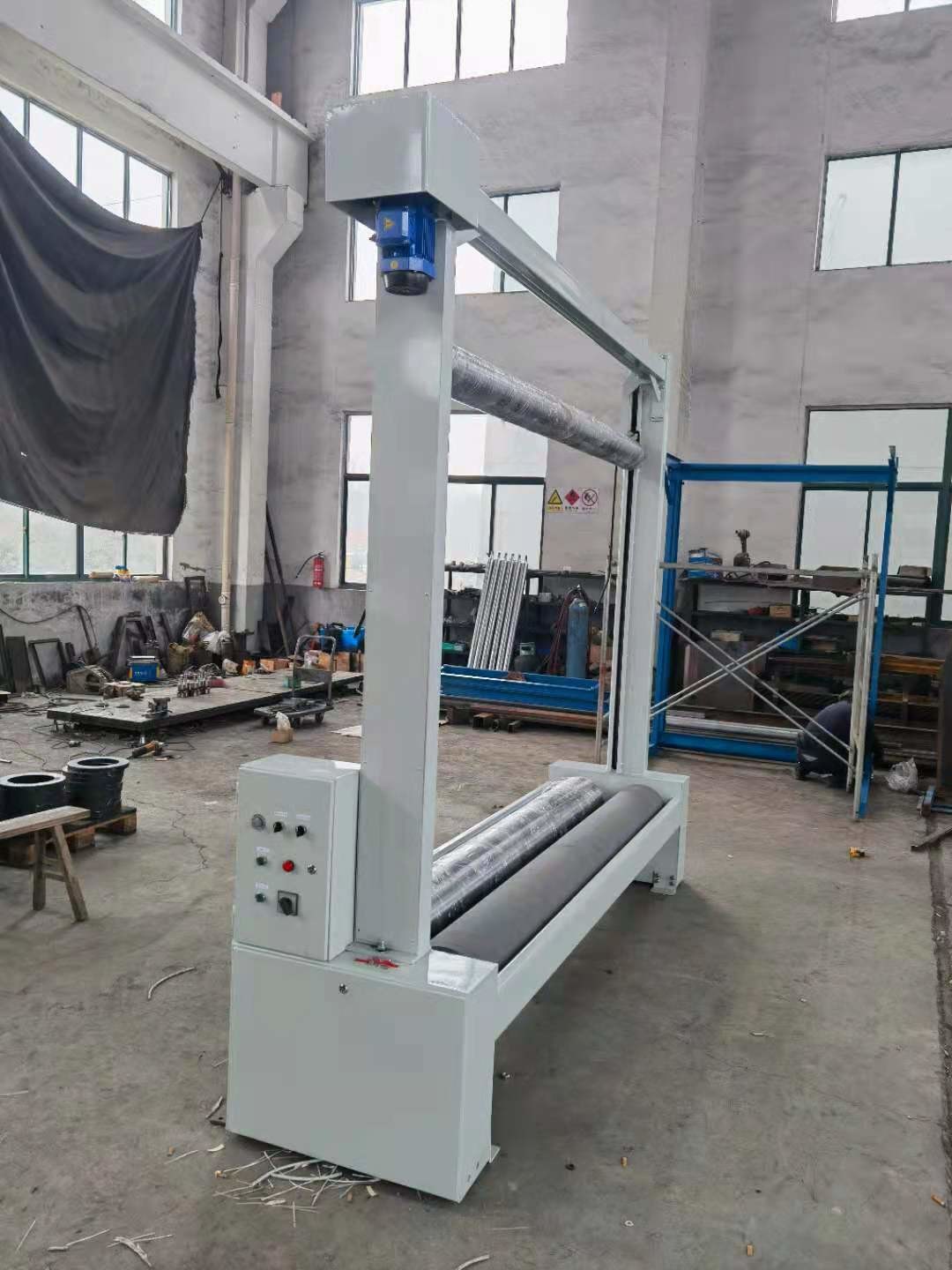

Customized Fabric Roll Winding Machine For Electric Press Rolling Lift 50 Hz

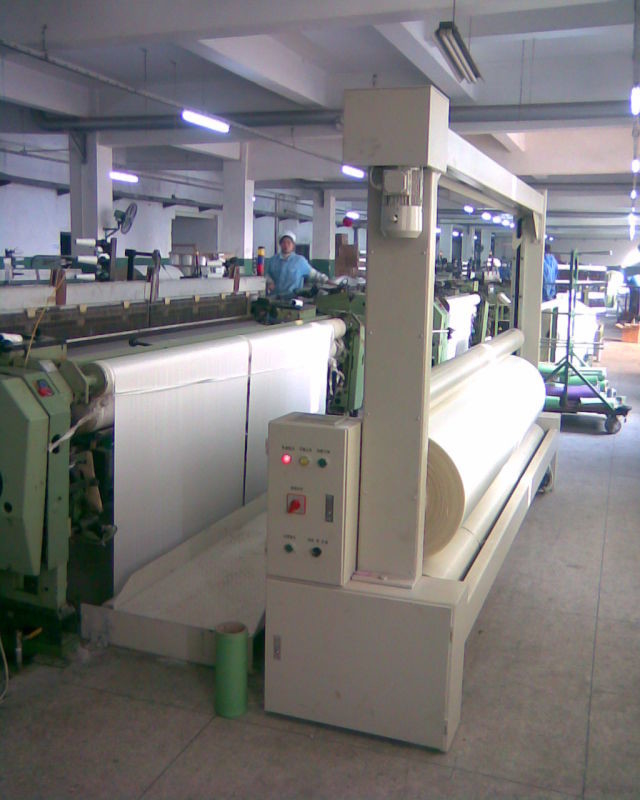

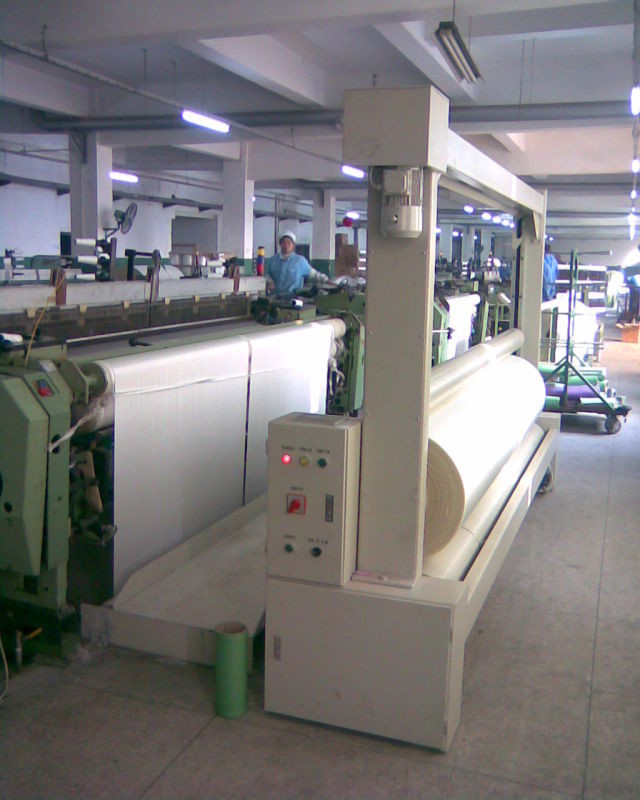

Horizontal Cloth Winder can be widely used to connect air jet, rapier, projectile, water jet and other manufacturers of weaving machines.It can be used for rolling common cotton and chemical fiber fabric, as well as industrial cloth such as glass fiber and geotextile.

1.Less fabric waste and increase efficiency

2.Fast and easily handled, one operator can take care of multiple machines

3.High degree of automation, can automatically track the start, stop and speed changes of the loom, to set the tension for smooth winding.

4.Variable working width is possible

  Technical Specifications

Speed:Synchronized with Weaving Machines

Fabric Width:1.2-4.5meters

Max winding diameter:1500mm (standard:1200mm)

Edge-alignment Error:≤5mm

Dimension(L*W*H):As per customer's fabric width

     Electric Specs:3Phase-380V; 50HZ(can be adjusted to suit for difffferent countries.)

     Frequency converter control electrical mode

    Automatic winding, stop, manual reversal and other operation functions

 machine structure

  The diameter of the two winding rollers is Φ217mm, one roller is covered with anti-skid rubber, the other roller is galvanized or sprayed with plastic.

  Non-slip foot pedal

  Electric press roller lifting device designed for tighter cloth

  Option - Man-machine interface operation mode

  Option - Inspection table with LED

  Option - Accurate length measuring giving accuracy of ± 0.01%

  Option - Semi-automatic doffing device(pneumatic roll ejection device

  Option - Manual doffing device(Manual roll ejection device)

Option - Automatic fabric selvedge shifter for thick selvedge.

1.Why we can choose you?
1)Reliable-We are a company with independent production workshops,we dedicate in win-win
2)Professional-We have complete manufacturing system and excellent after-sales service

2.What can you buy from us?
Design,Develop and Sell Textile Machinery and Storgage Machinery,Manufacturing and Sales of Textile Machinery and Automation Device

3.How about the price?Can you make it cheaper?
The price depend on the specifications of your product(size,quantity,raw material,etc)
Final quotation according to receiving full description of the product you want.

4.How can we guarantee the quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

5.What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Cash;
