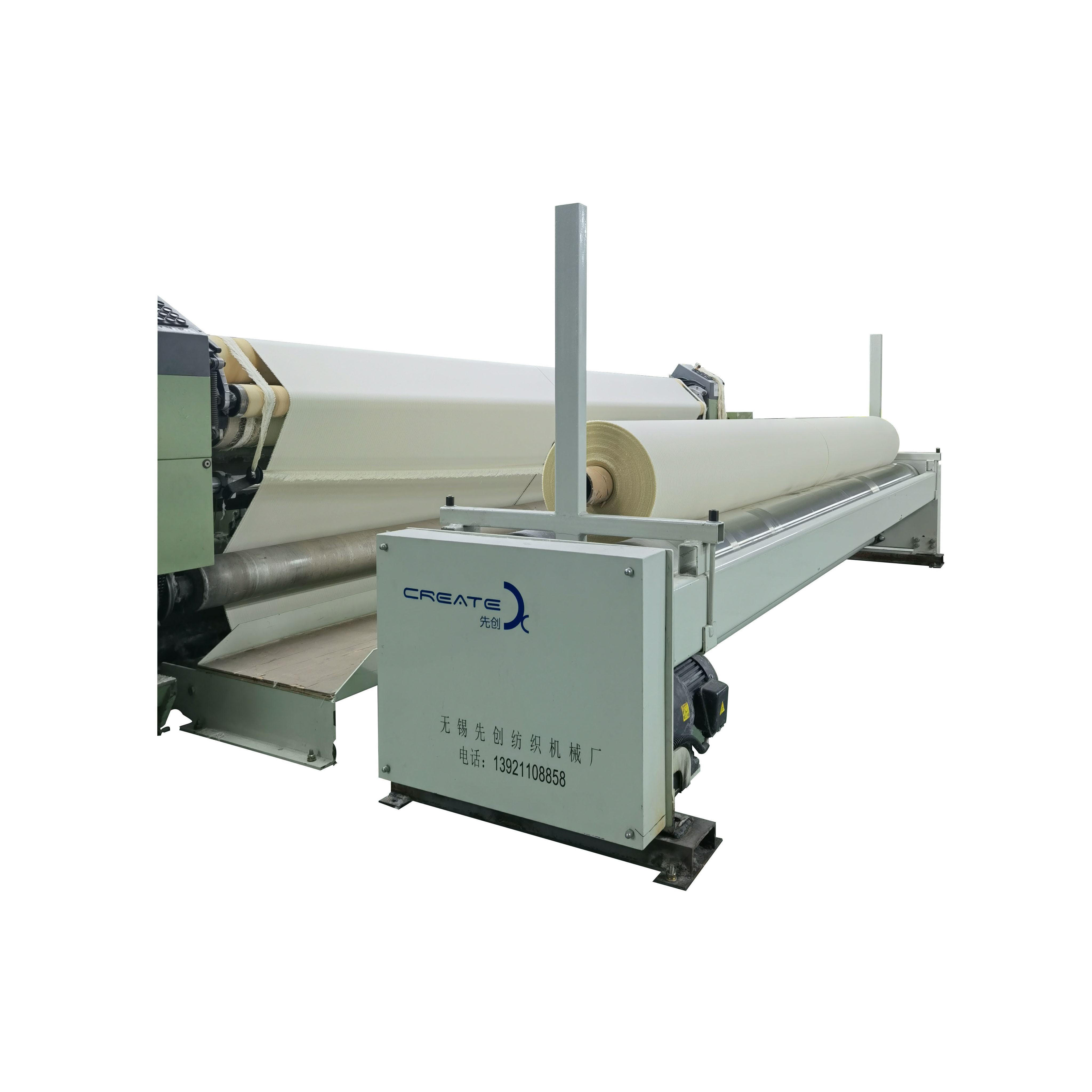

2000 KG Fabric Roll Winding Machine Winder 4.5meters For Doffing Device

Minimum Order Quantity :	1 Set	Price :	$2,000.00 - $3,000.00/Pieces
Packaging Details :	Steel Pallet&Stretch Wrapping Film for FCL(full container loaded)	Delivery Time :	4-7 Weeks
Payment Terms :	L/C, T/T	Supply Ability :	100 Piece/Pieces per Month

Place of Origin:	Jiangsu, China	Brand Name:	Xianchuang

Detail Information
Core Components:	Bearing, Gearbox, Motor, Pressure Vessel, Gear	Application:	Weaving Loom Machine
Automatic Grade:	Automatic	Voltage:	380v, According To Actual Condition
Dimension(LWH):	As Customized	Weight:	2000 KG
Warranty:	1 Year	Product Name:	Cloth Roll Winder For Doffing Device
Usage:	Weaving Loom Machine	Power:	0.25kw,50 Hz
Dimension:	As Per Customer's Fabric Width	Fabric Width:	1.2-4.5meters
Max Winding Diameter:	1500mm	Edge Alignment Error:	Less Than 5mm
Speed:	Synchronized With Weaving Machines
High Light:	Fabric Roll Winder For Doffing Device , 2000 KG Fabric Roll Winding Machine , Fabric Roll Winder Machine 4.5 meters

Product Description

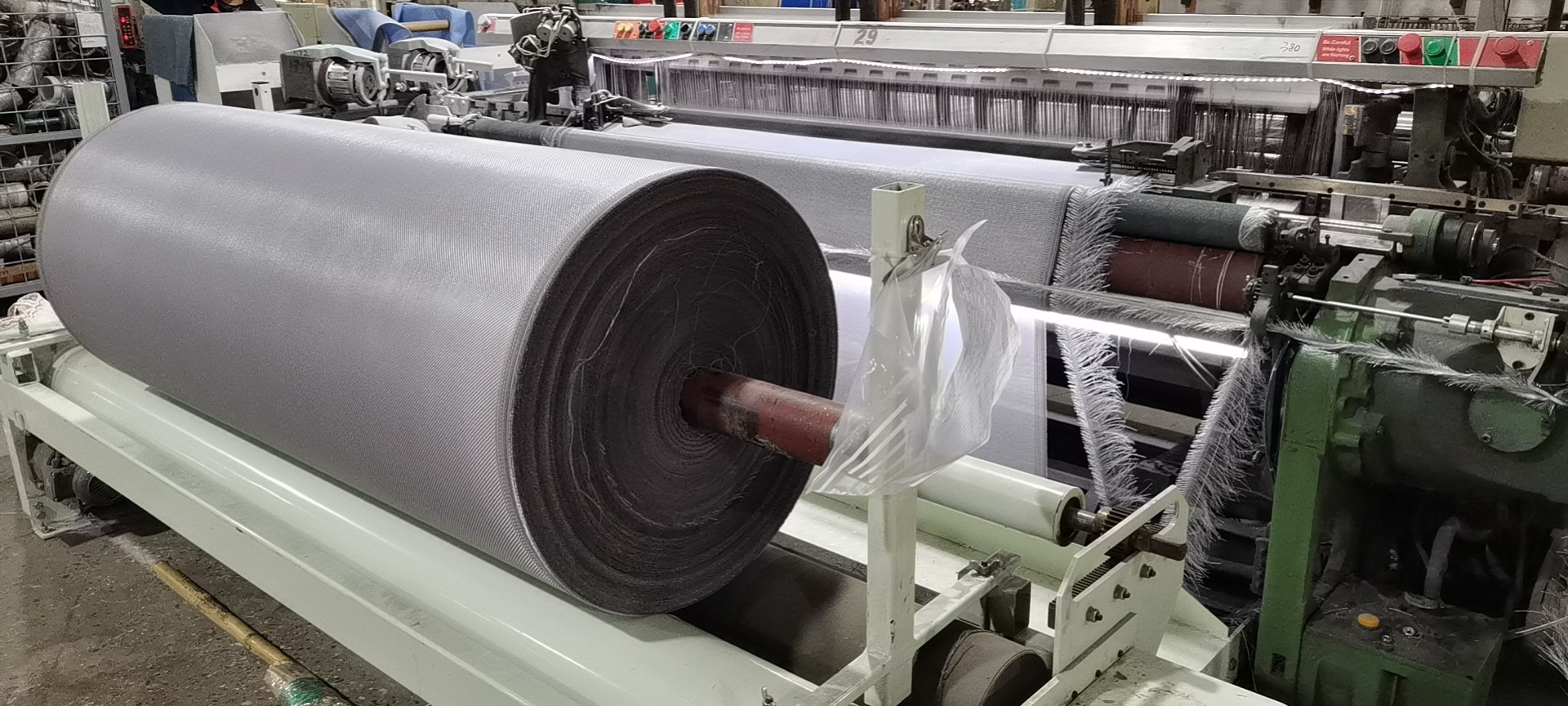

Horizontal Cloth Winder can be widely used to connect air jet, rapier, projectile, water
jet and other manufacturers of weaving machines.It can be used for rolling common cotton and chemical fiber fabric, as well as industrial cloth such as glass fiber and geotextile.
1.Less fabric waste and increase efficiency
2.Fast and easily handled, one operator can take care of multiple machines
3.High degree of automation, can automatically track the start, stop and speed changes of the loom, to set the tension for smooth winding.
4.Variable working width is possible

Main Technical Features

Technical Specifications
* Speed:Synchronized with Weaving Machines
* Fabric Width:1.2-4.5meters
* Max winding diameter:1500mm (standard:1200mm)
* Edge-alignment Error:≤5mm
* Dimension(L*W*H):As per customer's fabric width
* Electric Specs:3Phase-380V; 50HZ(can be adjusted to suit for difffferent countries.)
* Frequency converter control electrical mode
* Automatic winding, stop, manual reversal and other operation functions

machine structure

* The diameter of the two winding rollers is Φ217mm, one roller is covered with anti-skid rubber, the other roller is galvanized or sprayed with plastic.
* Non-slip foot pedal

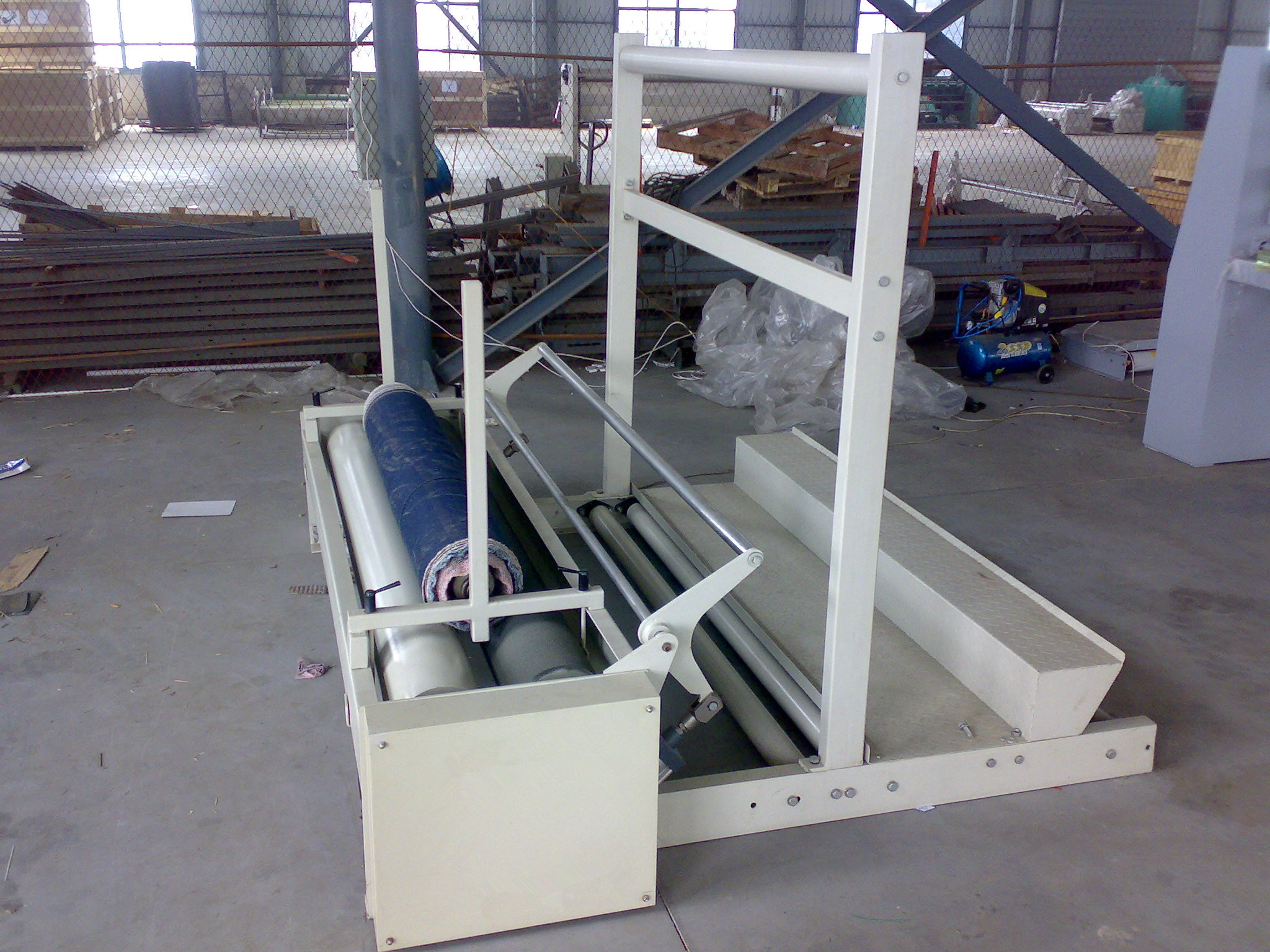

* Semi-automatic doffing device(pneumatic roll ejection device) or Manual doffing device(Manual roll ejection
device)
* Option - Electric press roller lifting device designed for tighter cloth coiling
* Option - Man-machine interface operation mode
* Option - Inspection tablewith LED
* Option - Accurate length measuring giving accuracy of ± 0.01%
* Option - Automatic fabric selvedge shifter for thick selvedge.

Cloth Roll Winder for Doffing Device
Place of Origin	Jiangsu, China
Brand Name	Xianchuang
Warranty	The core components are guaranteed for 1 year
Applicable Industries	Weaving Factory, Textile Factory
Usage	Weaving Loom Machine
Power	0.25kw,50 Hz
Voltage	According to actual condition
Max winding diameter	1500mm (standard:1200mm)
Speed	Synchronized with Weaving Machines
Item	Fabric Roll Winder
