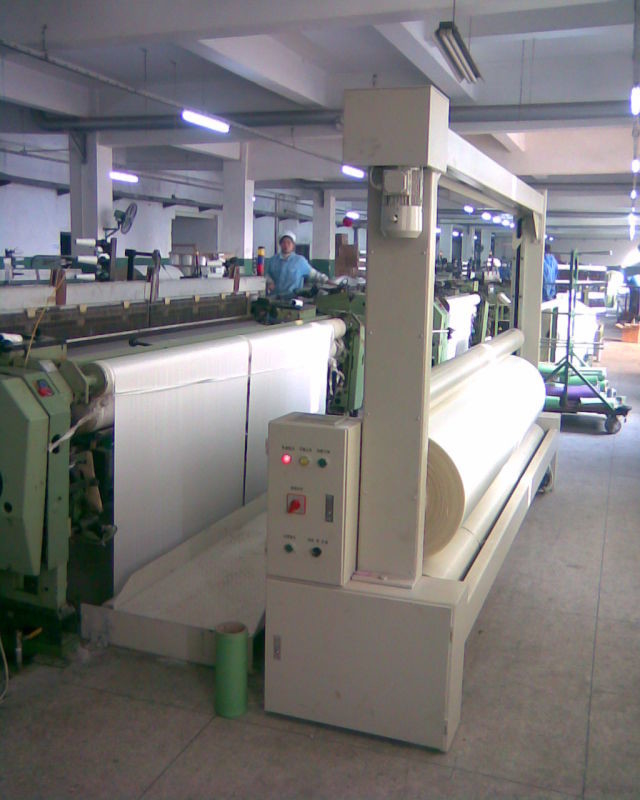

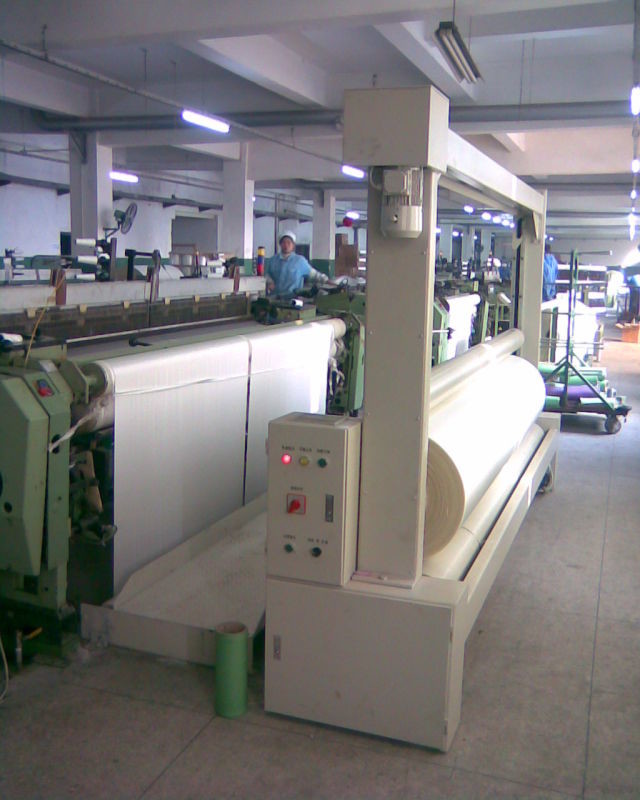

Horizontal Cloth Winder can be widely used to connect air jet, rapier, projectile, water jet and other manufacturers of weaving machines.It can be used for rolling common cotton and chemical fiber fabric, as well as industrial cloth such as glass fiber and geotextile.

1. Less fabric waste and increase efficiency

2. Fast and easily handled, one operator can take care of multiple machines

3. High degree of automation, can automatically track the start, stop and speed changes of the loom, to set the tension for smooth winding.

4. Variable working width is possible

Technical Specifications

Speed:Synchronized with Weaving Machines

Fabric Width:1.2-4.5meters

Max winding diameter:1500mm (standard:1200mm)

Edge-alignment Error:≤5mm

Dimension(L*W*H):As per customer's fabric width

Electric Specs:3Phase-380V; 50HZ(can be adjusted to suit for difffferent countries.)

Frequency converter control electrical mode

Automatic winding, stop, manual reversal and other operation functions

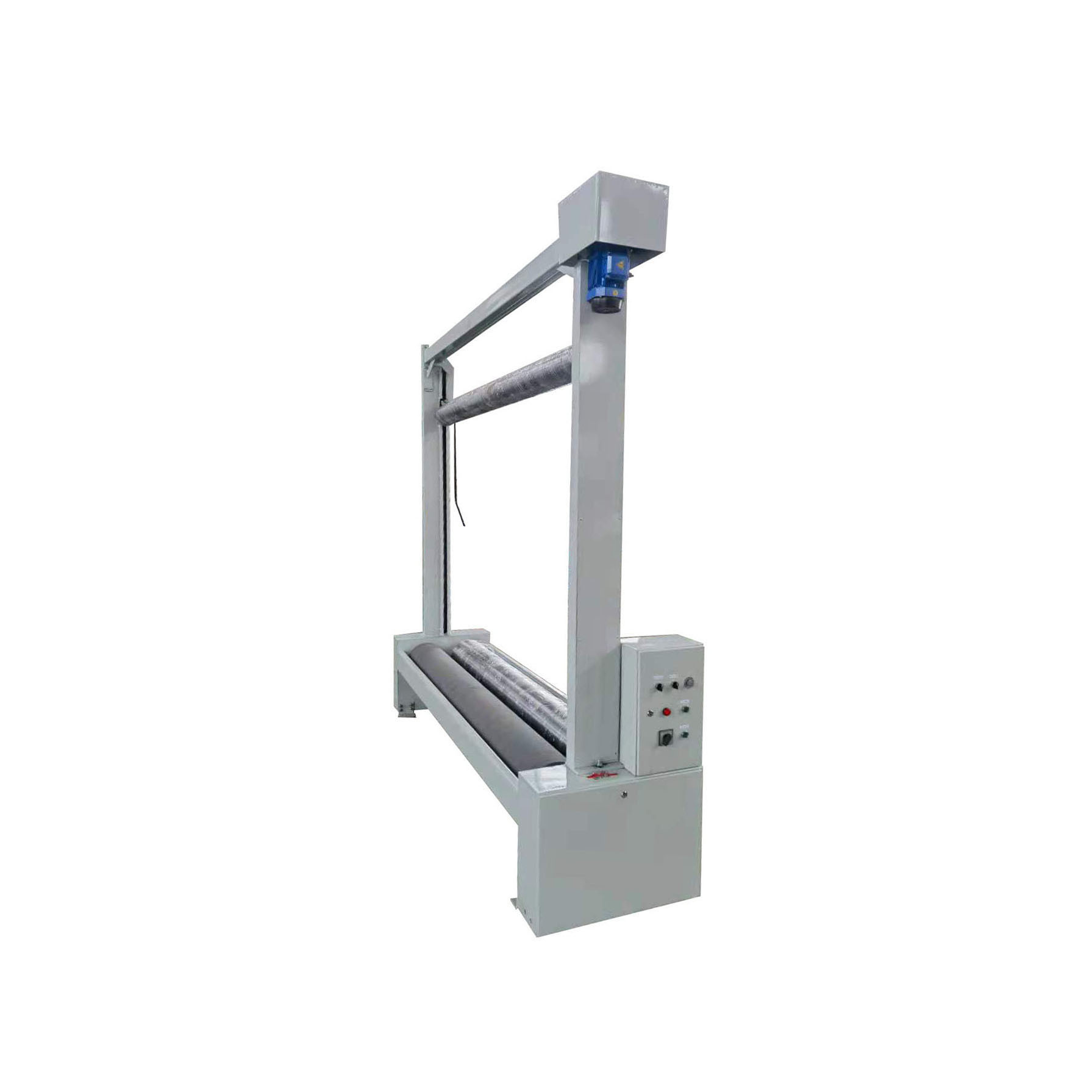

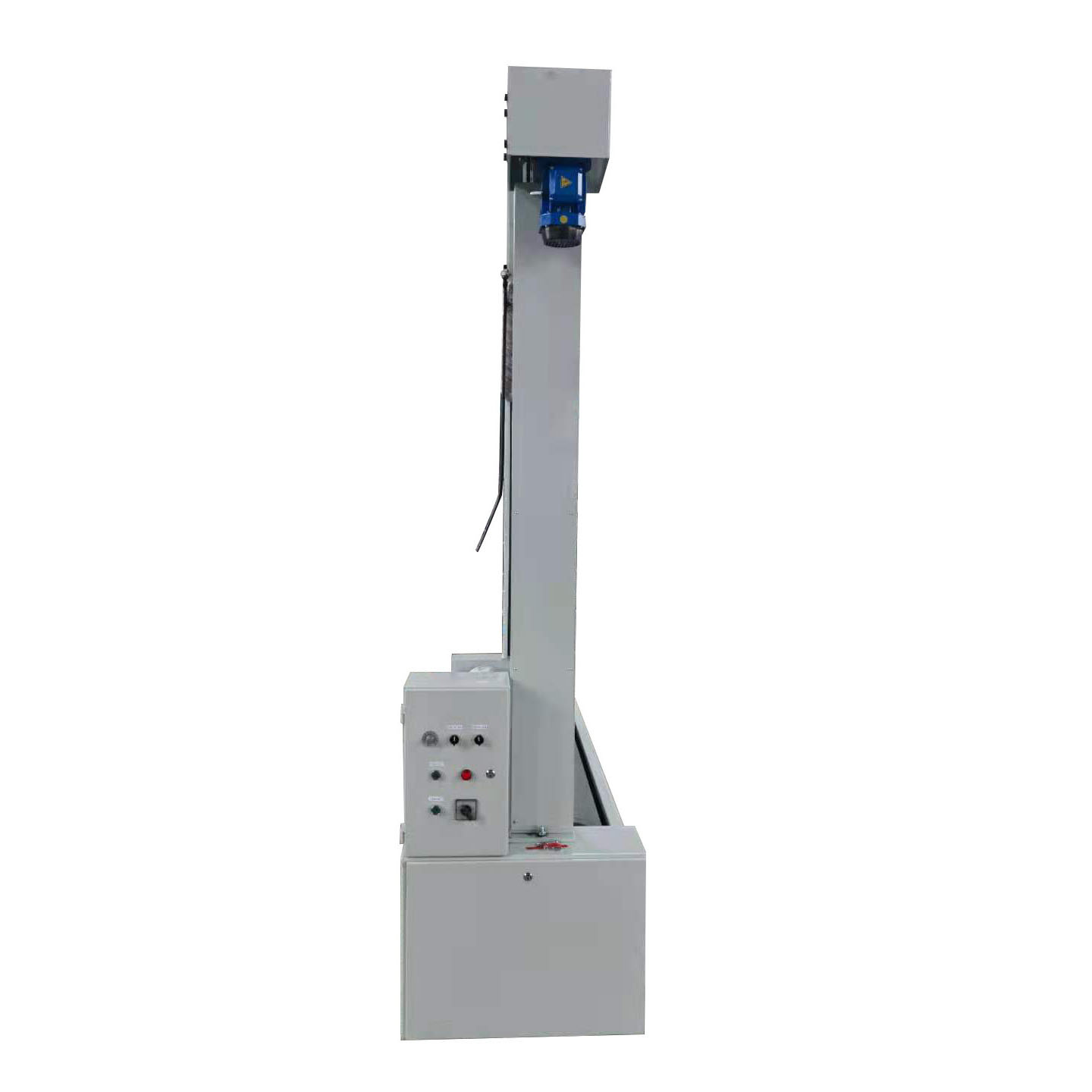

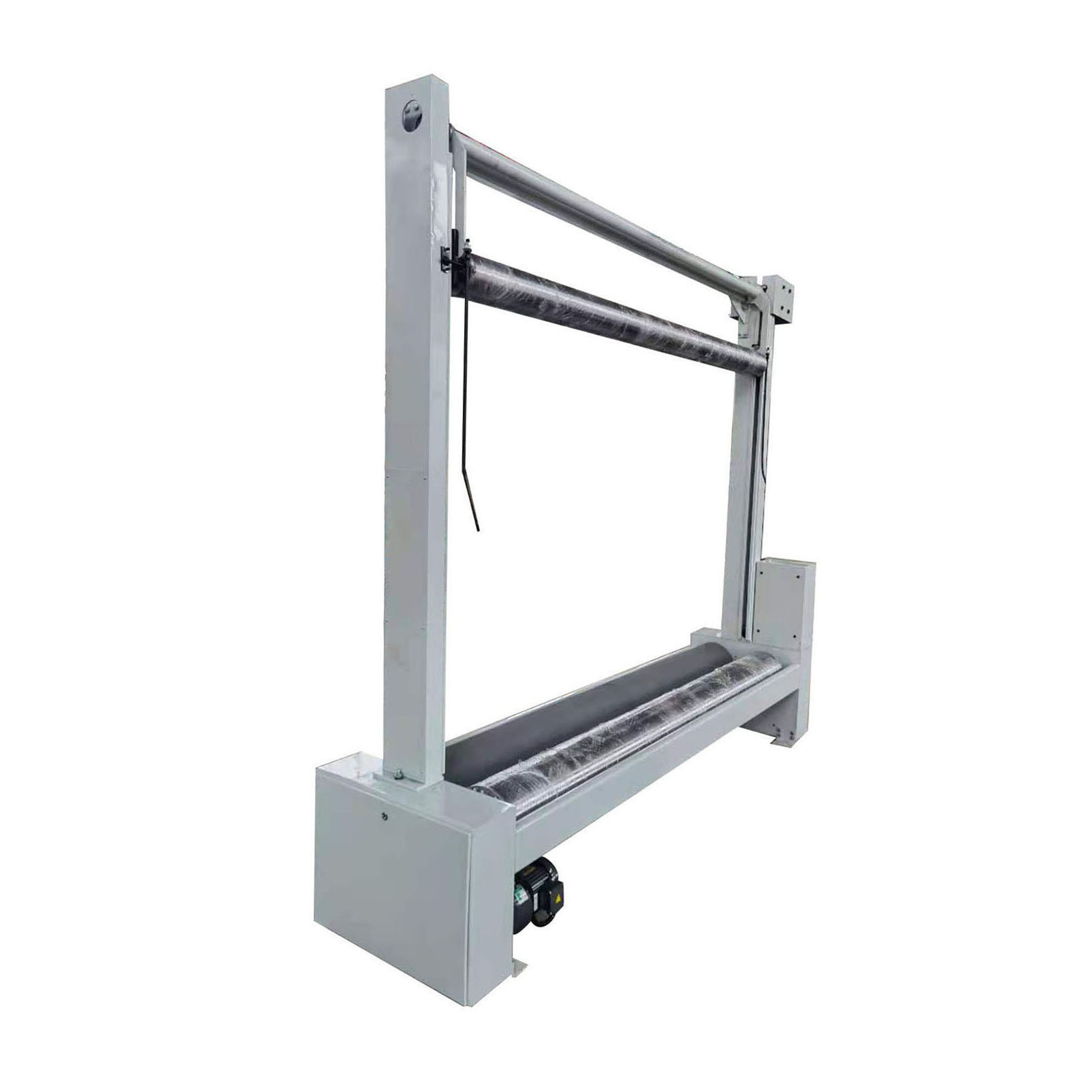

machine structure

The diameter of the two winding rollers is Φ217mm, one roller is covered with anti-skid rubber, the other roller is galvanized or sprayed with plastic.

Non-slip foot pedal

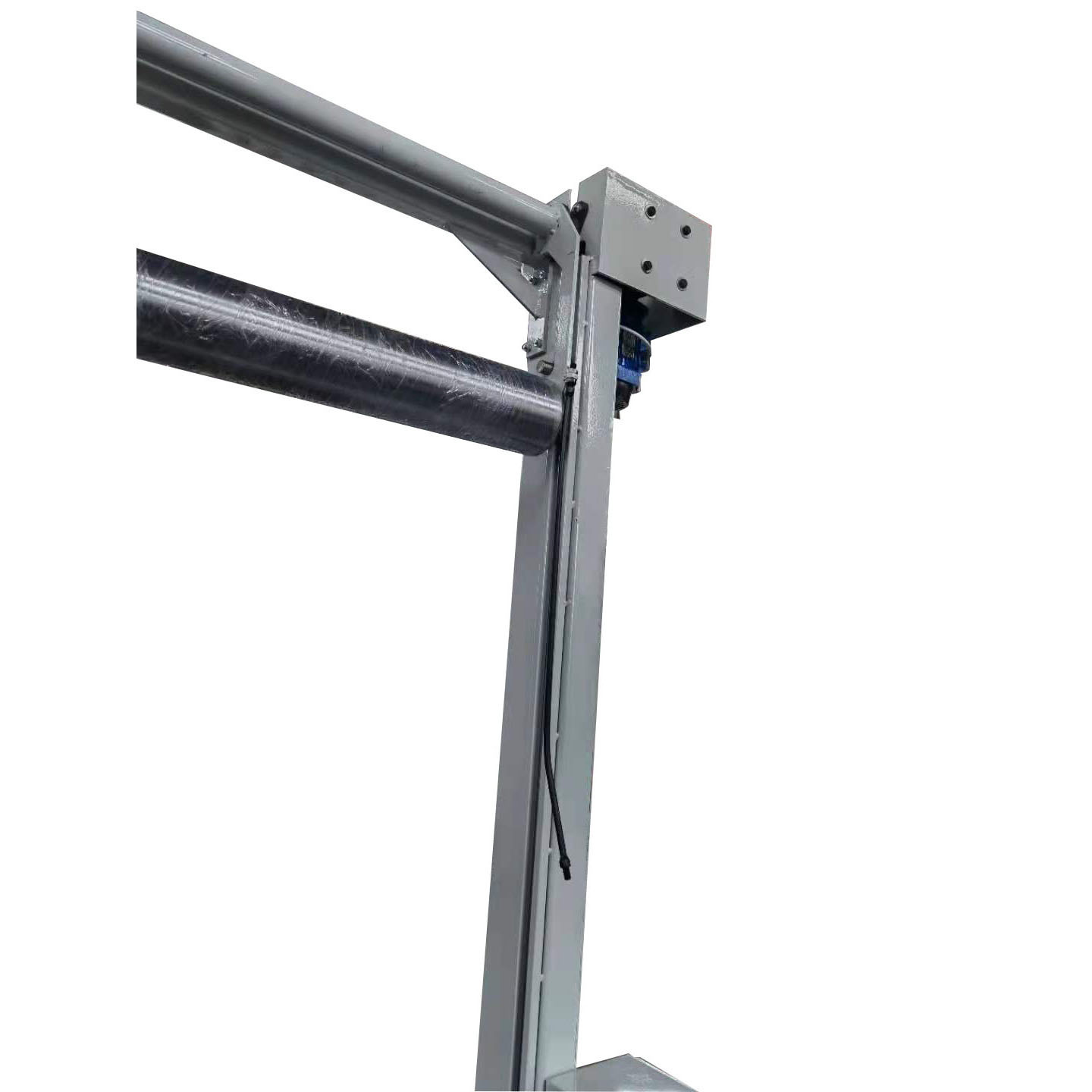

Electric press roller lifting device designed for tighter cloth

Option - Man-machine interface operation mode

Option - Inspection table with LED

Option - Accurate length measuring giving accuracy of ± 0.01%

Option - Semi-automatic doffing device(pneumatic roll ejection device

Option - Manual doffing device(Manual roll ejection device)

Option - Automatic fabric selvedge shifter for thick selvedge.
