Customized Carrying Weight Fabric Winding Roll Machine A Frame For Fabric Rolls

Minimum Order Quantity :	5pcs	Price :	$2,000.00 - $3,000.00/Pieces
Packaging Details :	Steel Pallet&Stretch Wrapping Film for FCL(full container loaded)	Supply Ability :	100 Piece/Pieces per Month

Place of Origin:	Jiangsu, China	Brand Name:	Xianchuang

Detail Information
Product Name:	Horizontal Cloth Fabric Roll Winding Machine For Weaving	Applicable Industries:	Manufacturing Plant, Other, Weaving Factory, Textile Factory
Core Components:	Bearing, Gearbox, Motor, Pressure Vessel, Gear	Application:	Weaving Loom Machine
Automatic Grade:	Automatic	Production Capacity:	1500mm (standard:1200mm)
Memory Capacity:	Synchronized With Weaving Machines	Voltage:	380v, According To Actual Condition
Power:	0.25kw,50 Hz, 0.25kw,50 Hz	Dimension(LWH):	As Customized
Weight:	180 KG	Warranty:	1 Year
Usage:	Weaving Loom Machine	Dimension:	As Per Customer's Fabric Width
Fabric Width:	1.2-4.5meters	Max Winding Diameter:	1500mm
Edge Alignment Error:	Less Than 5mm	Speed:	Synchronized With Weaving Machines
After Warranty Service:	Video Technical Support, No Service, Online Support, Spare Parts, Field Maintenance And Repair Service	After-sales Service Provided:	Free Spare Parts, Video Technical Support, Online Support, Field Maintenance And Repair Service
Port:	NINGBO/SHANGHAI

Product Description

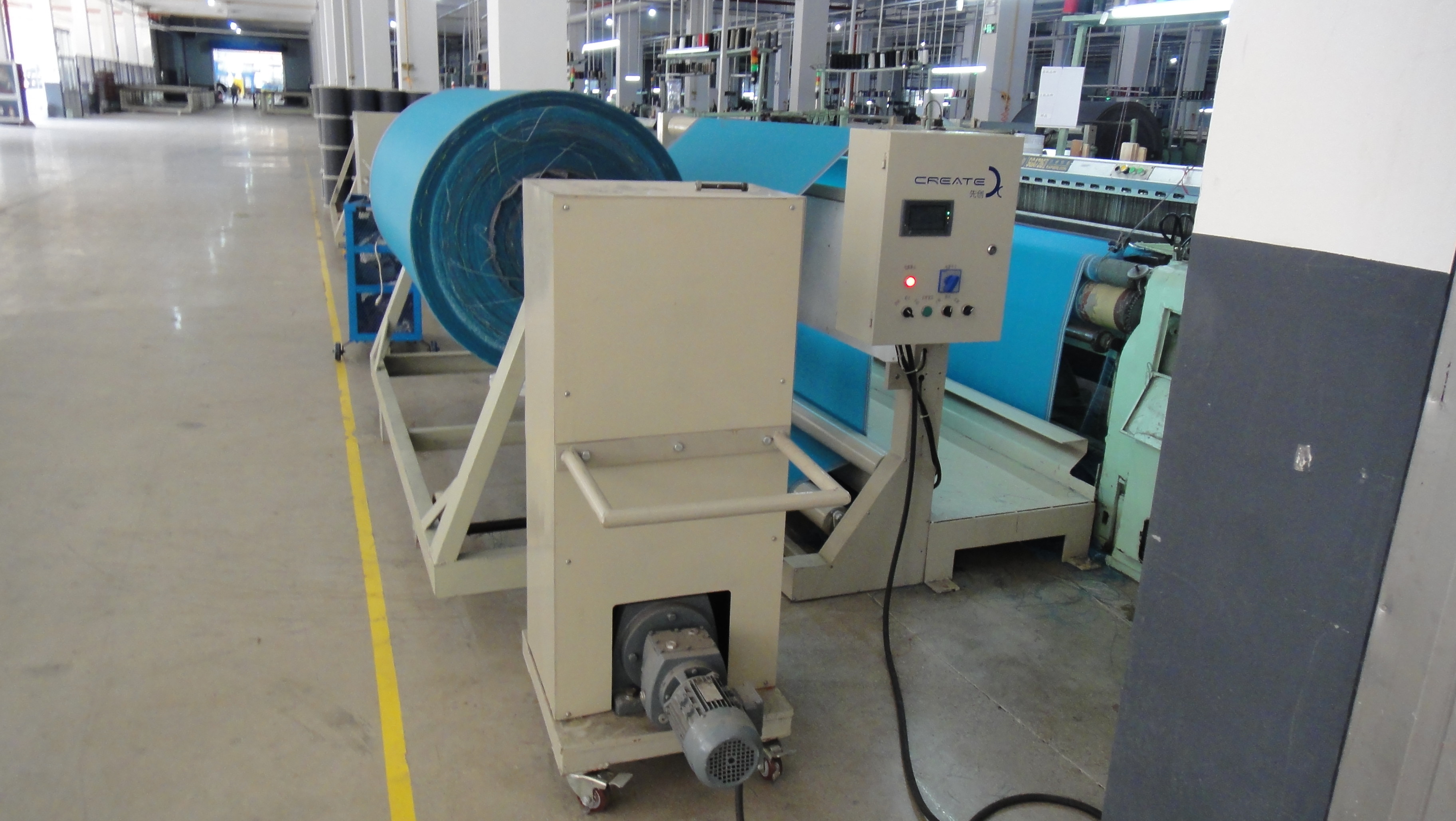

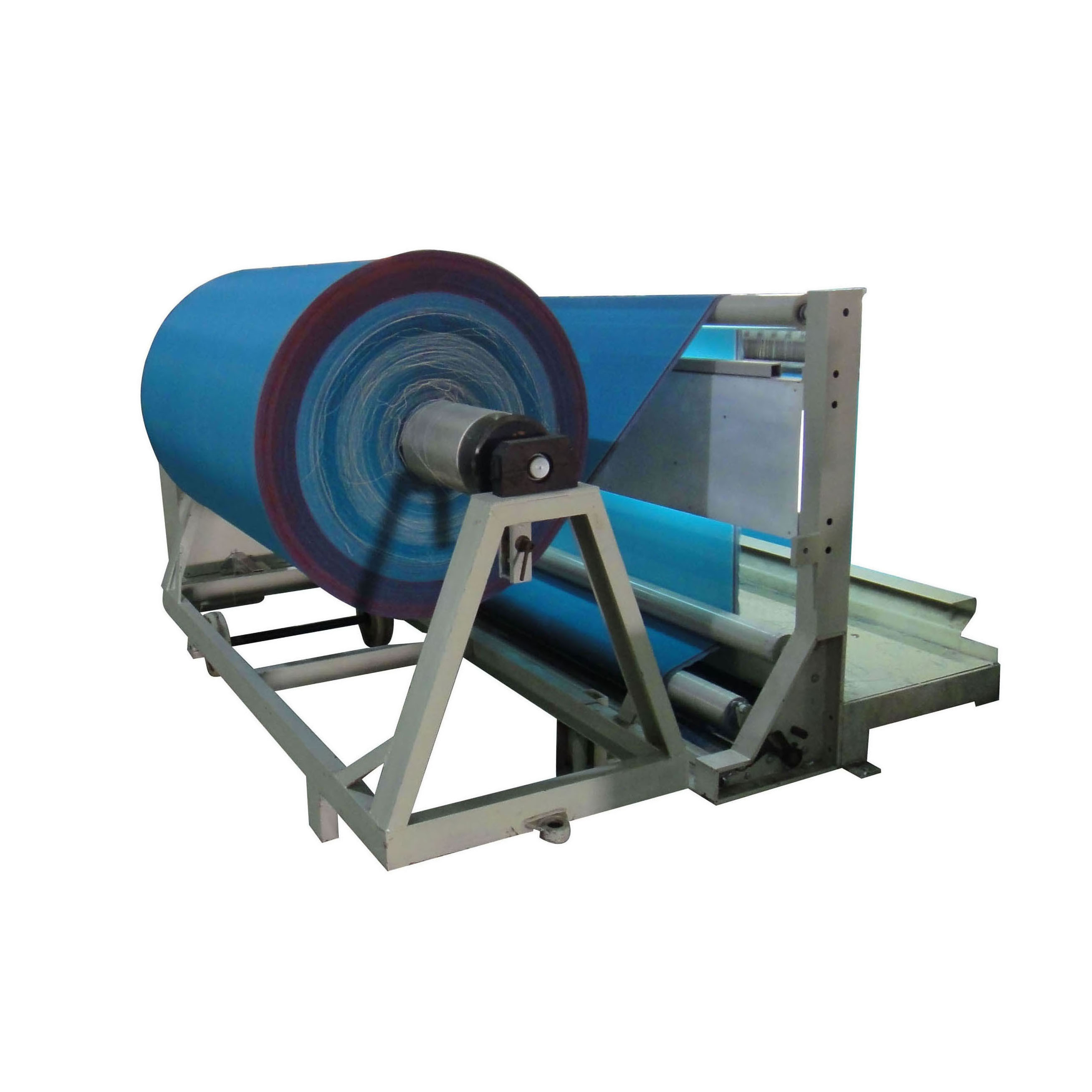

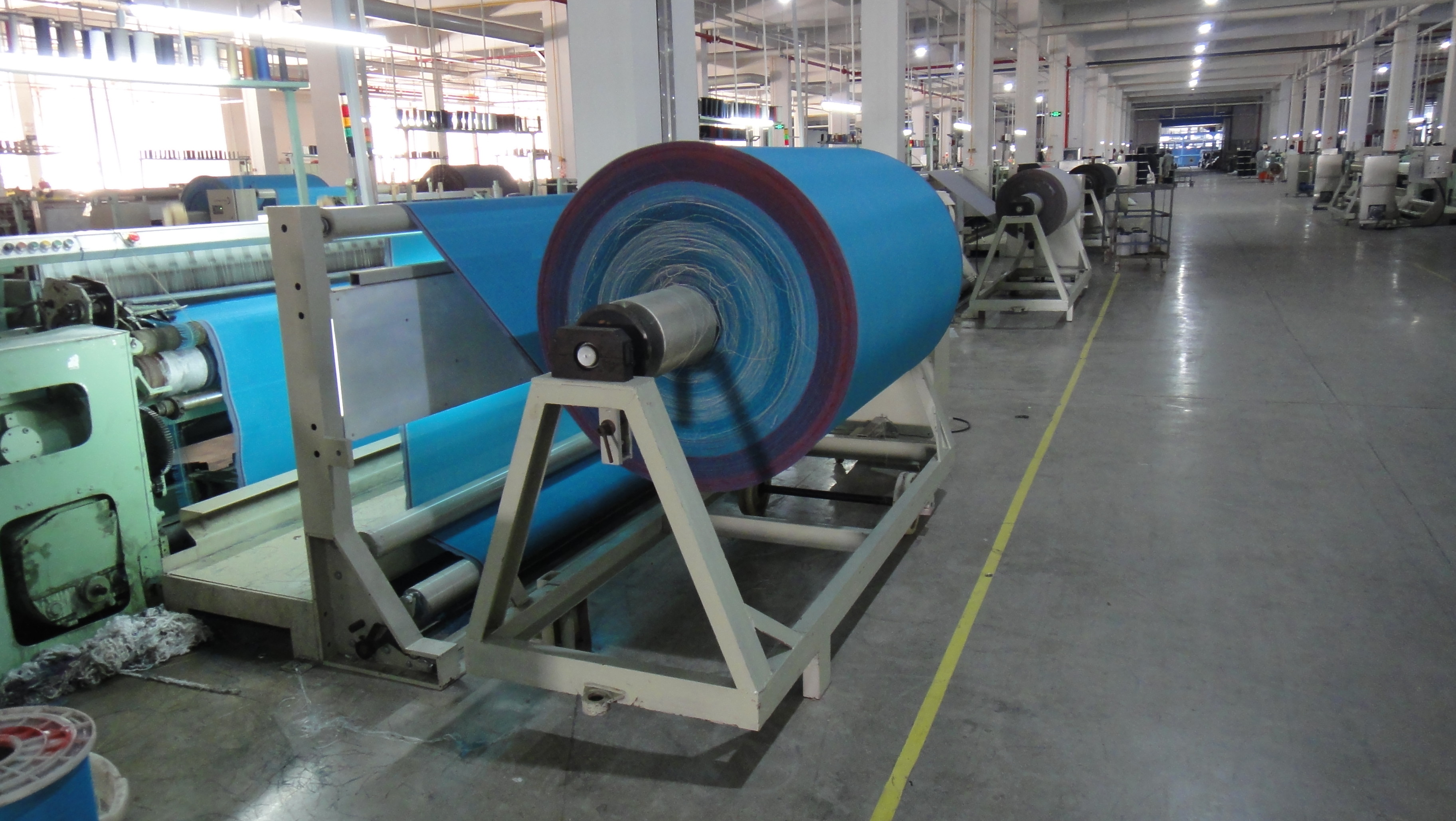

Fabric Winding Roll Machine A Frame For Fabric Rolls

* Speed:Synchronized with Weaving Machines
* Fabric Width:1.2-4.5meters
* Max winding diameter:1500mm (standard:1200mm)
* Edge-alignment Error:≤5mm
* Dimension(L*W*H):As per customer's fabric width
* Electric Specs:3Phase-380V; 50HZ(can be adjusted to suit for difffferent countries.)
* Frequency converter control electrical mode
* Automatic winding, stop, manual reversal and other operation functions

machine structure
* A-frameplatform with anti-fatigue material

* A power-driven trolley composed of gears, chains and motors
* A Tension control platform
* Non-slip foot pedal
* Option - Inspection tablewith LED
* Option - Man-machine interface operation mode
* Option - Accurate length measuring giving accuracy of ± 0.01%
* Option - Pneumatic press roller device designed for tighter cloth winding

Vertical Cloth Fabric Roll Winding machine for Weaving
Place of Origin	Jiangsu, China
Brand Name	Xianchuang
Warranty	The core components are guaranteed for 1 year
Applicable Industries	Weaving Factory, Textile Factory
Usage	Weaving Loom Machine
Power	0.25kw,50 Hz
Voltage	According to actual condition
Max winding diameter	1500mm (standard:1200mm)
Speed	Synchronized with Weaving Machines
Item	Fabric Roll Winder
