Rolling Fabric Winding Machine For Weaving Machinery

Minimum Order Quantity :	5pcs	Price :	$2,000.00 - $3,000.00/Pieces
Packaging Details :	Steel Pallet&Stretch Wrapping Film for FCL(full container loaded)	Supply Ability :	100 Piece/Pieces per Month

Place of Origin:	Jiangsu, China	Brand Name:	Xianchuang

Detail Information
Product Name:	Horizontal Cloth Fabric Roll Winding Machine For Weaving	Core Components:	Bearing, Gearbox, Motor, Pressure Vessel, Gear
Condition:	New	Application:	Weaving Loom Machine
Automatic Grade:	Automatic	Production Capacity:	1500mm (standard:1200mm)
Memory Capacity:	Synchronized With Weaving Machines	Voltage:	380v, According To Actual Condition
Power:	0.25kw,50 Hz, 0.25kw,50 Hz	Dimension(LWH):	As Customized
Weight:	180 KG	Warranty:	1 Year
Usage:	Weaving Loom Machine	Dimension:	As Per Customer's Fabric Width
Fabric Width:	1.2-4.5meters	Max Winding Diameter:	1500mm
Edge Alignment Error:	Less Than 5mm	Speed:	Synchronized With Weaving Machines
Item:	Fabric Roll Winder	After Warranty Service:	Video Technical Support, No Service, Online Support, Spare Parts, Field Maintenance And Repair Service
After-sales Service Provided:	Free Spare Parts, Video Technical Support, Online Support, Field Maintenance And Repair Service	Port:	SHANGHAI
High Light:	Rolling Fabric Winding Machine , Rolling Inspection Machine , Fabric Inspection and Winding Machine

Product Description

Fabric Roll Winding Machine A Frame For Fabric Rolls Used For Weaving Machine

cloth winding machine
Horizontal Winding Machine
Automatic Winding Machine
fabric roll winding machine
fabric rolling machine
fabric winder
fabric winder
fabric winder machine
fabric winder machine
fabric winding machine
loom weaving machine
manual fabric winder
non woven fabric winding machine
power loom weaving machine
power loom winding machine

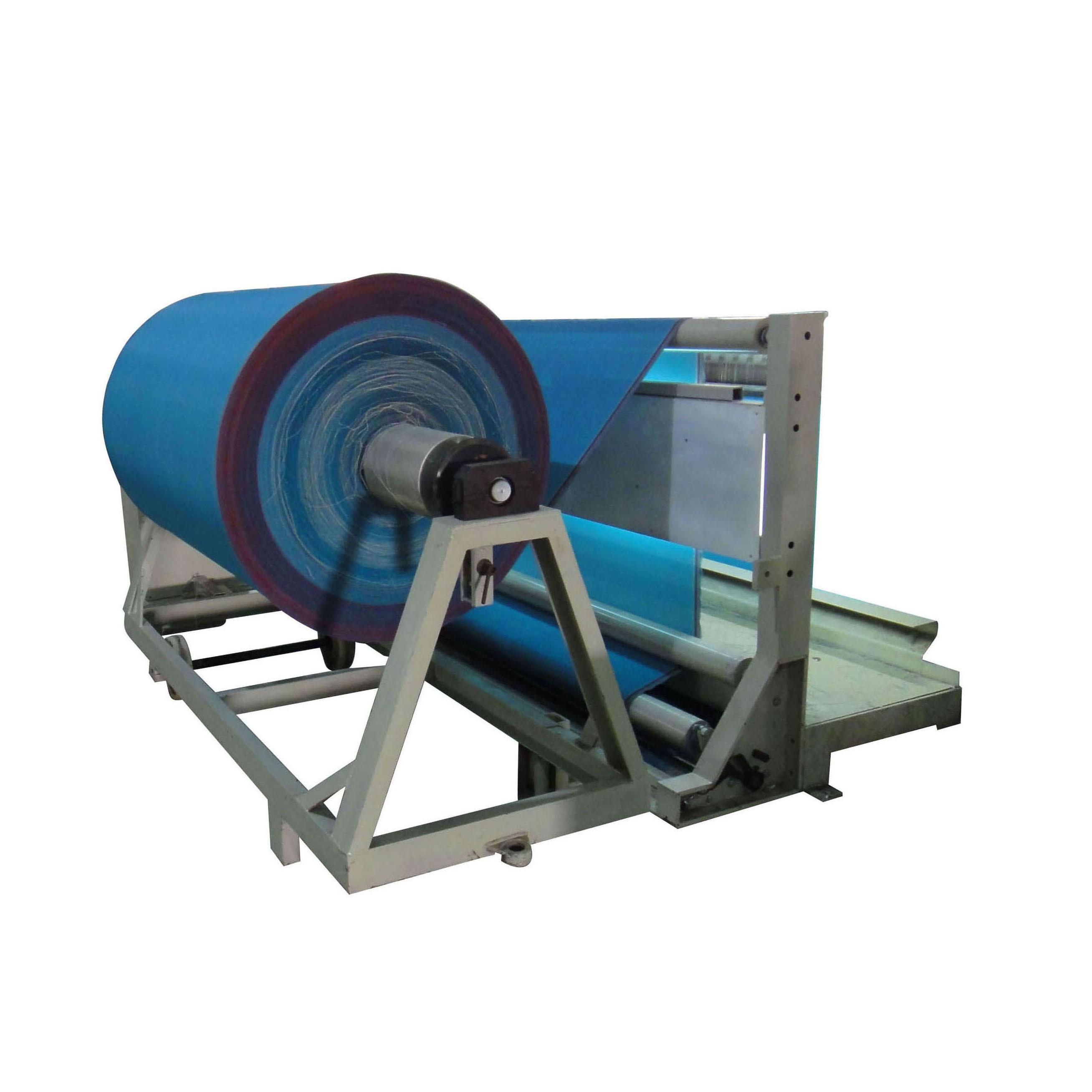

Horizontal Cloth Fabric Roll Winding machine for Weaving
Place of Origin	Jiangsu, China
Brand Name	Xianchuang
Warranty	The core components are guaranteed for 1 year
Applicable Industries	Weaving Factory, Textile Factory
Usage	Weaving Loom Machine
Power	0.25kw,50 Hz
Voltage	According to actual condition
Max winding diameter	1500mm (standard:1200mm)
Speed	Synchronized with Weaving Machines
Item	Fabric Roll Winder

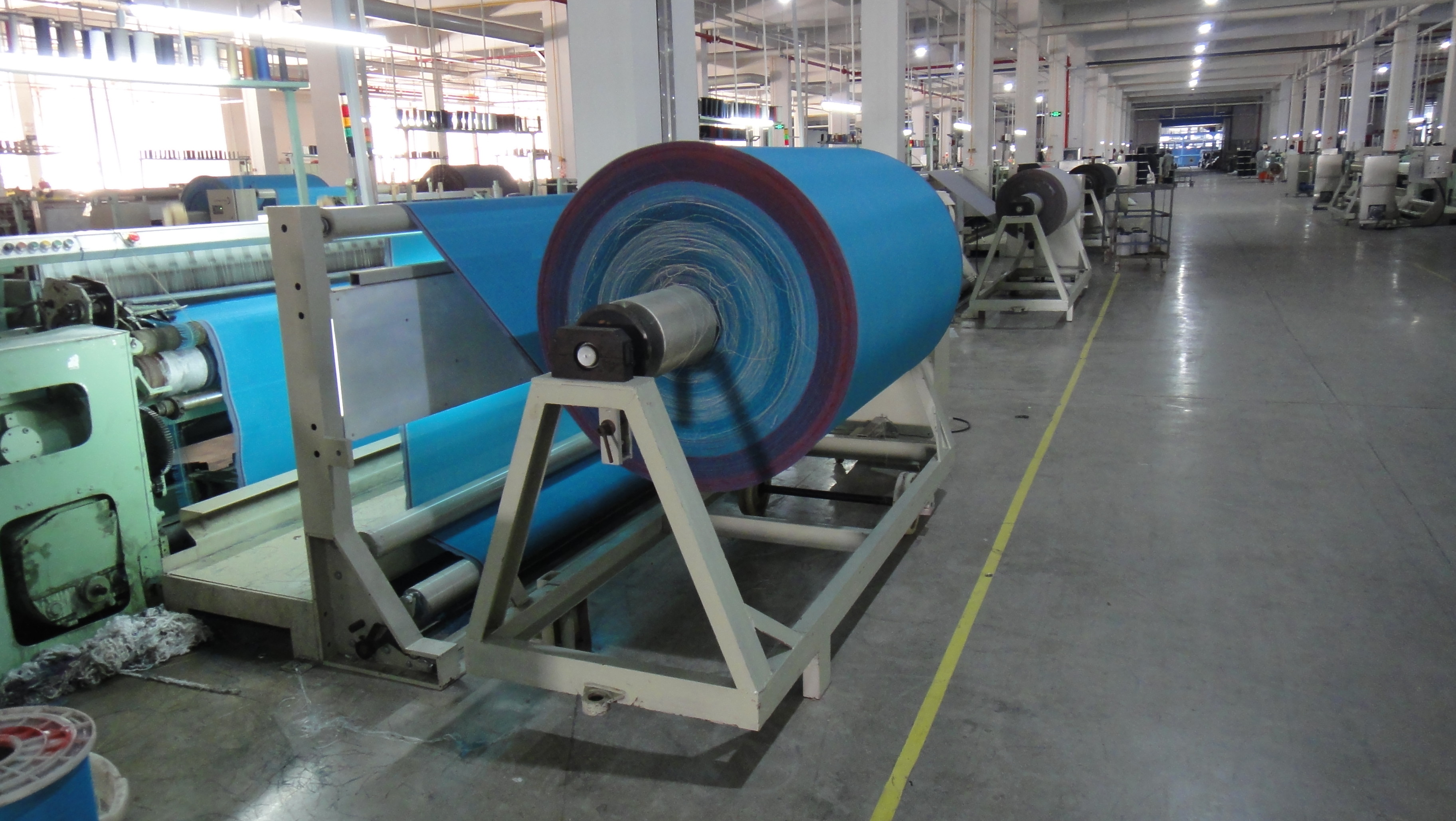

Horizontal Cloth Winder can be widely used to connect air jet, rapier, projectile, water

jet and other manufacturers of weaving machines.It can be used for rolling common cotton and chemical fiber fabric, as well as industrial cloth such as glass fiber and geotextile.

1. Less fabric waste and increase efficiency

2. Fast and easily handled, one operator can take care of multiple machines

3. High degree of automation, can automatically track the start, stop and speed changes of the loom, to set the tension for smooth winding.

4. Variable working width is possible

Main Technical Features

Technical Specifications

* Speed:Synchronized with Weaving Machines

* Fabric Width:1.2-4.5meters

* Max winding diameter:1500mm (standard:1200mm)

* Edge-alignment Error:≤5mm

* Dimension(L*W*H):As per customer's fabric width

* Electric Specs:3Phase-380V; 50HZ(can be adjusted to suit for difffferent countries.)

* Frequency converter control electrical mode

* Automatic winding, stop, manual reversal and other operation functions
machine structure

* A-frameplatform with anti-fatigue material

* A power-driven trolley composed of gears, chains and motors

* A Tension control platform

* Non-slip foot pedal

* Option - Inspection tablewith LED

* Option - Man-machine interface operation mode

* Option - Accurate length measuring giving accuracy of ± 0.01%

* Option - Pneumatic press roller device designed for tighter cloth winding
