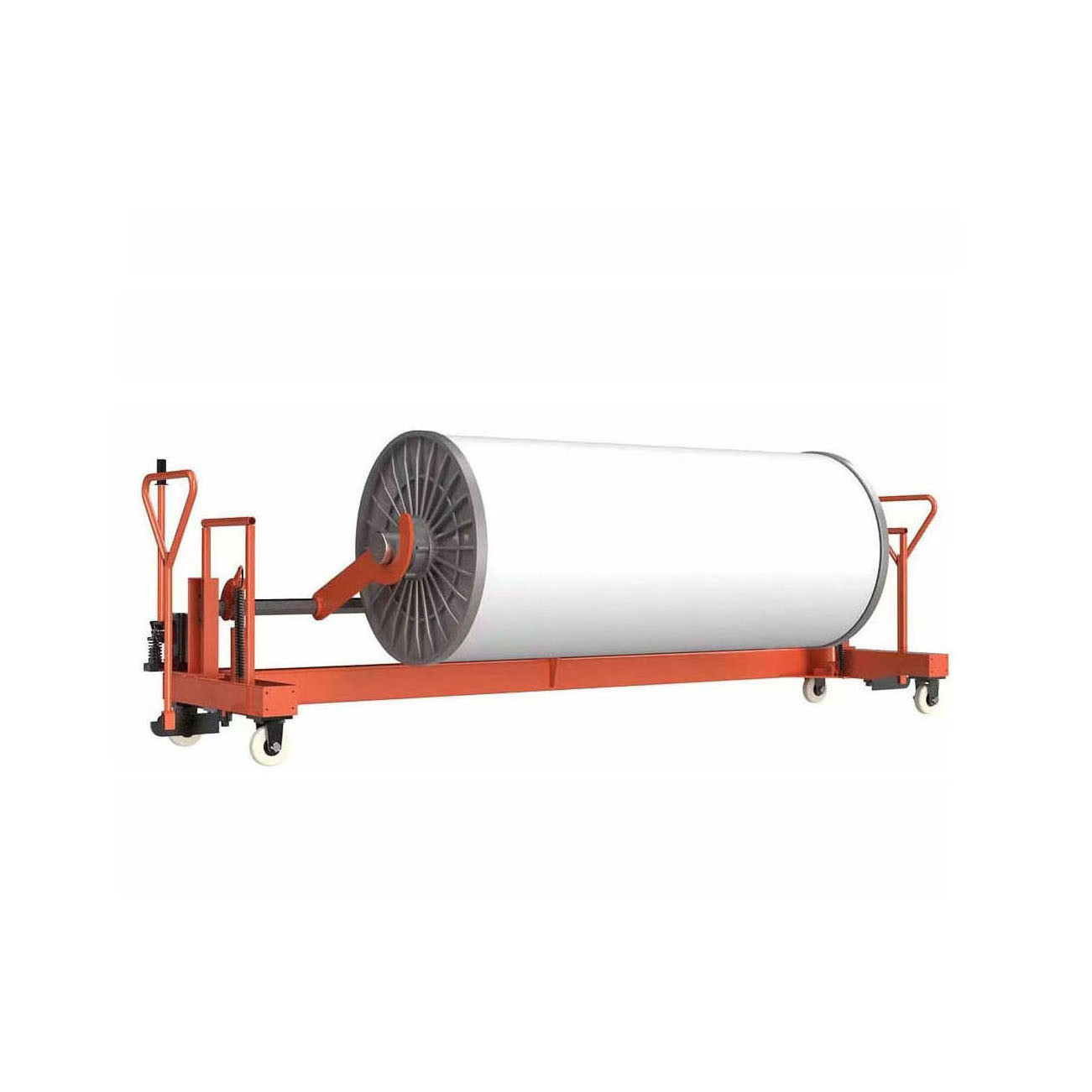

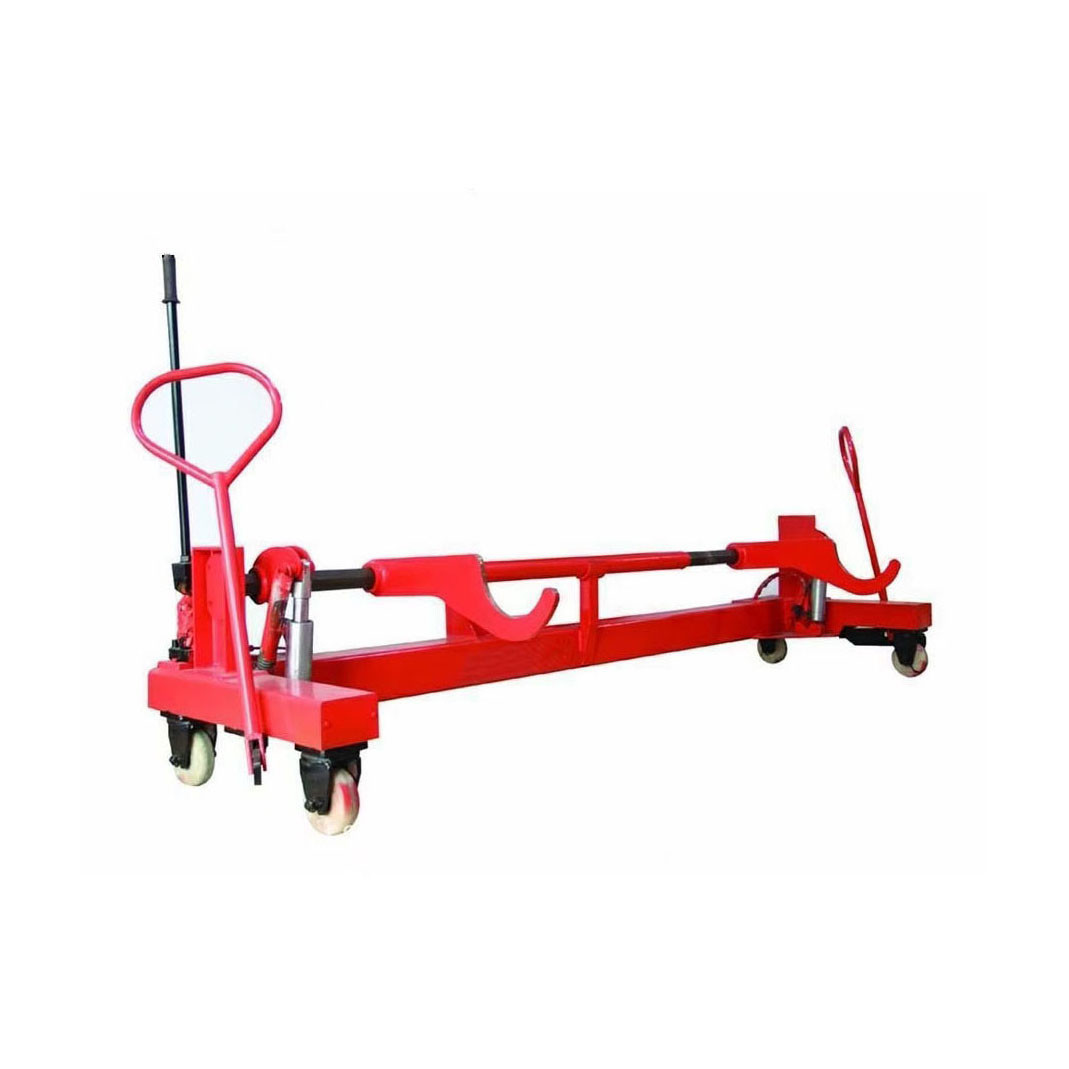

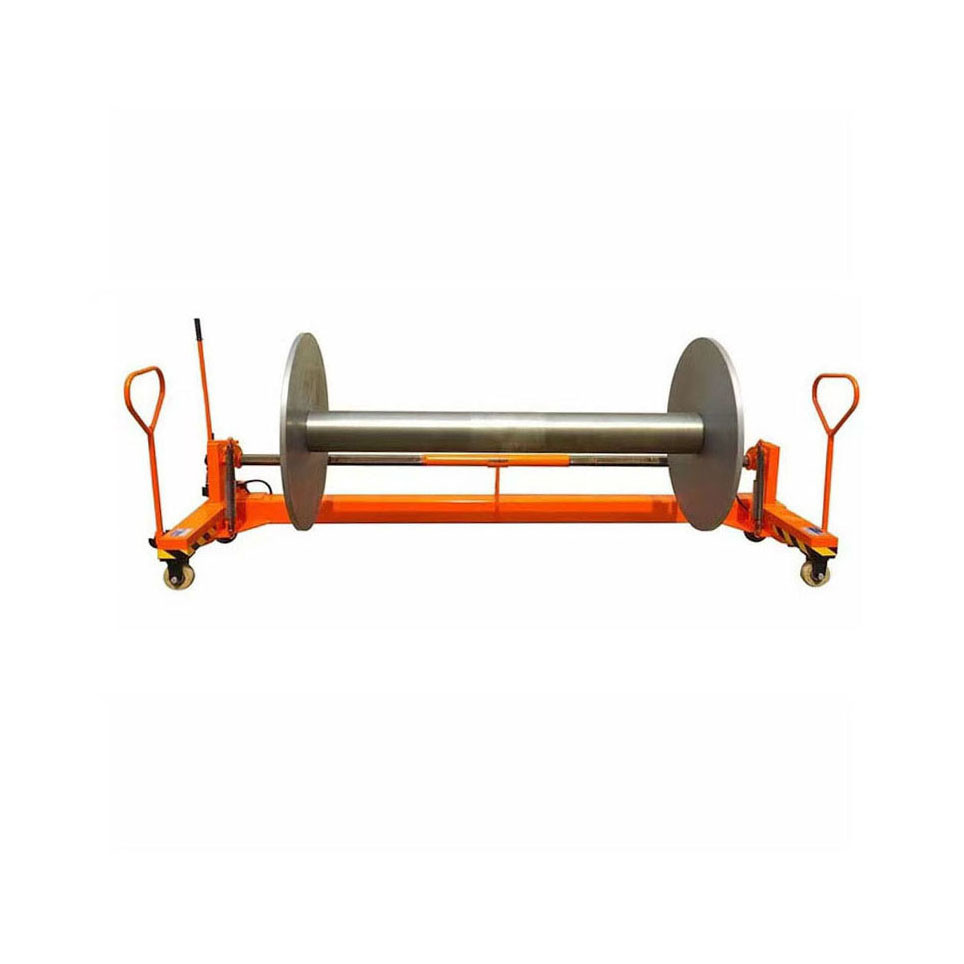

High Quality Easy Operate Hydraulic Manual Warp Beam Lifting Trolley
High Quality Easy Operate Hydraulic Manual Warp Beam Lifting Trolley
High Quality Easy Operate Hydraulic Manual Warp Beam Lifting Trolley High Quality Easy Operate Hydraulic Manual Warp Beam Lifting Trolley High Quality Easy Operate Hydraulic Manual Warp Beam Lifting Trolley High Quality Easy Operate Hydraulic Manual Warp Beam Lifting Trolley
Contact Now

High Quality Easy Operate Hydraulic Manual Warp Beam Lifting Trolley

Minimum Order Quantity : 5pcs Price : $2,000.00 - $3,000.00/Pieces
Packaging Details : 1.Steel Pallet&amp;Stretch Wrapping Film for FCL(full container loaded)<br> 2.Wooden Box for LCL(less than container loaded) Delivery Time : 4-7 weeks
Payment Terms : L/C, T/T Supply Ability : 50 Set/Sets per Month
Place of Origin: Jiangsu, China Brand Name: Xianchuang
Model Number: BLC-05

Detail Information
Dimension (L X W X H): As Customized Customized Support: OEM
Material: Steel Wheel: Four-wheel
Name: Textile Hydraulic Lift Trolley Usage: Warp Beam Transport And Lift
Applicable Industries: Weaving Factory Dimension: As Customized
Feature: Convenience And Effective Beam Barrel Diameter: 100-400mm
Core Components: Bearing, Pressure Vessel, Gear, Pump

Product Description

Hydraulic Manual Warp Beam Lifting Trolley



Name
Textile Hydraulic Lift Trolley
Place of Origin
Jiangsu, China
Brand Name
Xianchuang
Usage
Warp Beam Transport and Lift
Material
High-duty Steel Structure
Wheel
Four-wheel
Carrying Capacity
1000-1500kgs
Hydraulic Cylinders
Two
Hydraulic Unit
One
Weight
as per order
Beam flange diameter
Φ800-Φ1250mm
Beam barrel diameter
Φ100-Φ400mm




1. Mainly production process: according to the design drawings, precision welded and formed in sheet-metal workshop, with high-performance oil pump in accordance with the export quality standards to enhance the hydraulic performance. The surface is teated with anti-rust paint to meet the customer's production demand
2. Useful
* Suitable for Bottom Beam transporting, inserting in weaving Machines; warp beam weighing up to 1500kgs and an additional loading capacity of 200kgs for the heald frame. * Apply beam barrel Diameter Φ150 -Φ400mm, beam width 1500-3900 mm, Aluminum Flange Diameter Φ800 - Φ1250 mm.
3. Features
* Four wheel synchronization, any Angle to turn and walk
* Hydraulic vertical lifting of the heald frame, fast speed, high efficiency
* Double cylinder synchronous lifting, balanced and stable, beamwith heald frame on the machine at the same
time
* Lower bracket hook horizontal sliding adjustment of the upper shaft spacing
High Quality Easy Operate Hydraulic Manual Warp Beam Lifting Trolley 1
High Quality Easy Operate Hydraulic Manual Warp Beam Lifting Trolley 2
Company Profile
High Quality Easy Operate Hydraulic Manual Warp Beam Lifting Trolley 4
Certifications
High Quality Easy Operate Hydraulic Manual Warp Beam Lifting Trolley 6
Exhibition
High Quality Easy Operate Hydraulic Manual Warp Beam Lifting Trolley 8
Manufacturing Technique
High Quality Easy Operate Hydraulic Manual Warp Beam Lifting Trolley 10
Product packaging
High Quality Easy Operate Hydraulic Manual Warp Beam Lifting Trolley 12
FAQ
High Quality Easy Operate Hydraulic Manual Warp Beam Lifting Trolley 14
