Aluminum Weaving Loom Beam For Loom Machine #20 Seamless Steel Tube

Name: Aluminum Weaving Loom Beam For Loom Machine #20 Seamless Steel Tube
Brand: Xianchuang
SKU: Xianchuang
Price: 600.00 USD
Availability: InStock
Rating: 4.8 (187 reviews)

Minimum Order Quantity :	5 Pieces	Price :	$600.00 - $680.00/Pieces
Packaging Details :	1.Steel Pallet&Stretch Wrapping Film for FCL(full container loaded)<br> 2.Wooden Box for LCL(less than container loaded)	Delivery Time :	4-7 weeks
Payment Terms :	L/C, T/T	Supply Ability :	5000 Piece/Pieces per Month

Place of Origin:	Jiangsu, China	Brand Name:	Xianchuang

Detail Information
Use:	Rapier Loom Machine	Product Name:	Loom Beam
Color:	Natural Color	Material:	Steel+Aluminum
Material For Beam Barrel:	#20 Seamless Steel Tube	Material For Flange:	GL105 High Tensile Aluminum Alloy
Delivery Time:	30-45 Days	Package:	Wooden Box
HS CODE:	8448499000
High Light:	Aluminum Weaving Loom Beam , #20 seamless steel tube Loom Beam , Weaving Machine Loom Beam

Product Description

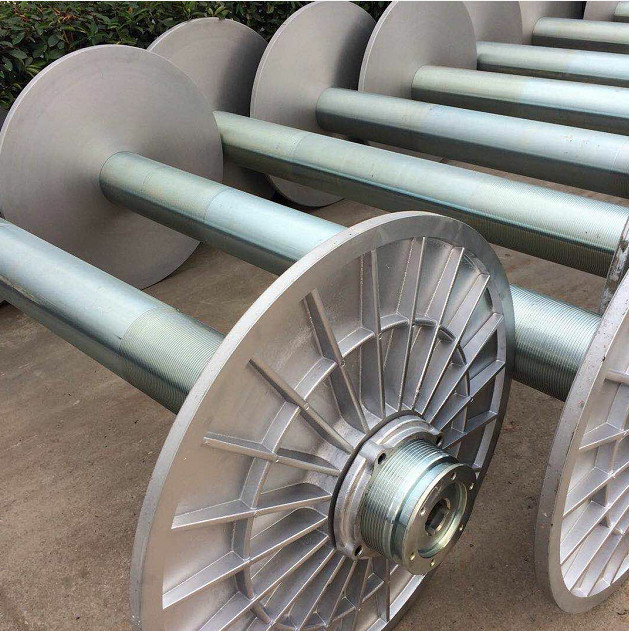

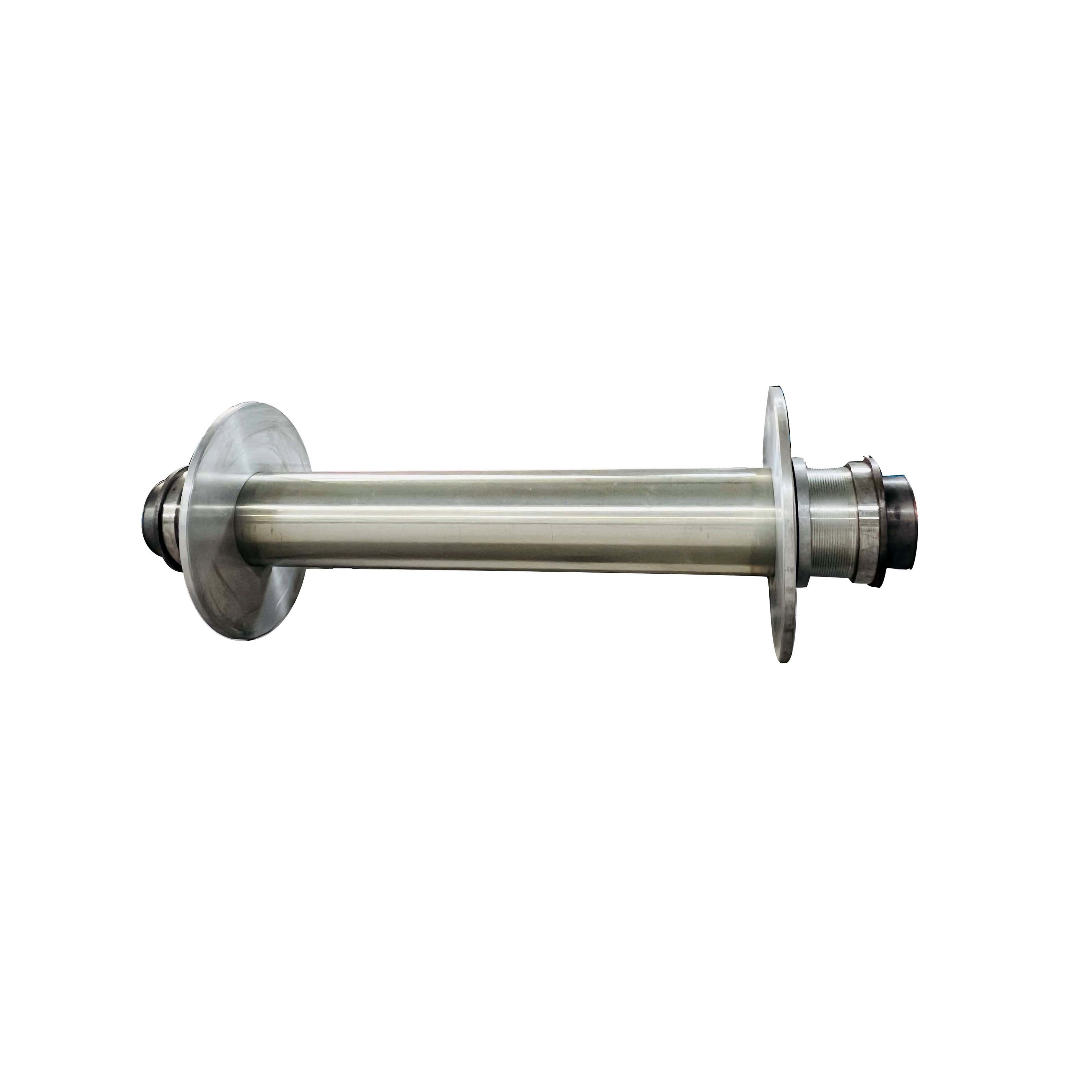

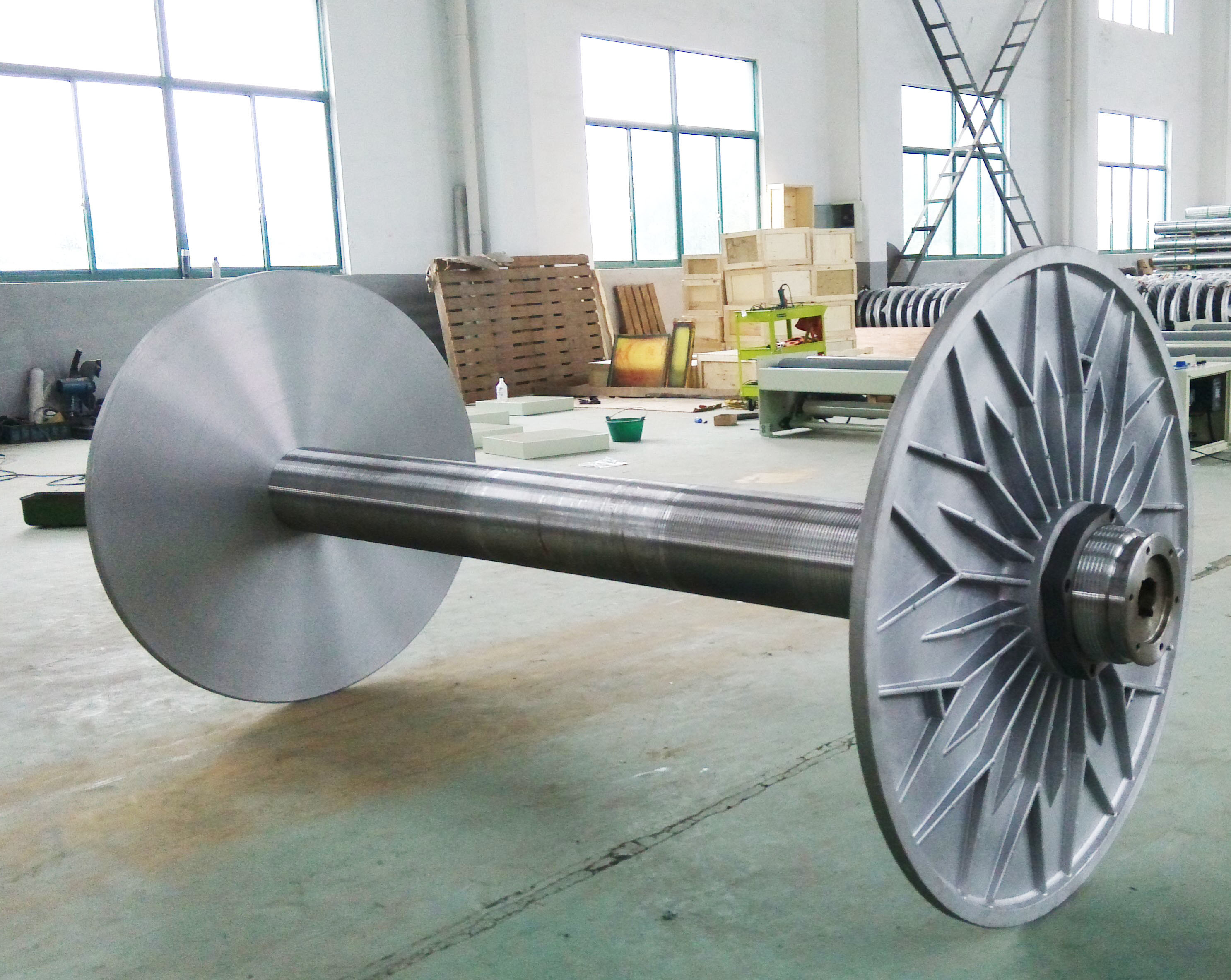

1900mm 2100mm Length Warp Beam For Rapier Loom Machine

All the flange diameter and beam Width are customized,we could provide free design service.

Xianchuang can manufacture weaving beams for any brand of looms.
XIANCHUANG Weaving Loom Beam are widely applied in rapier, jacquard, air-jet, water-jet machine of Sulzer, Toyota, Dornier, Tsudakoma, Picanol, Somet, Benninger, muller, and etc, with flange diameter of 600-1250mm. Weaving Beam is manufactured with single and twin section accompanied with driving gear for smooth working. Customized beam working width or other special requirement can be satisfied.

Main Technical Features

* Flange:Made by ZL105High Strength Aluminum Alloy, higher material and mechanical property than normal materials; Surface anodized treatment. Flanges are available in a variety of weights or strengths, depending on the yarn.
* Beam Barrel:Made by 20# Seamless Steel Pipe; Galvanized Passivation.
* Barrel Jump <0.35mm per 1000mm
* Flange Vertical Jitter <0.35mm

Factory direct sales Loom Beam for PICANOL Itema Loom machine
Place of Origin	Jiangsu, China
Brand Name	Xianchuang
Warranty	13 months from date of shipment
Applicable Industries	Weaving factory
Usage	Rapier Weaving Loom Machine
Material For Beam Barrel	#20 seamless steel tube
Material For Flange	GL105 high tensile aluminum alloy
Working Width	as customized
Flange Diameter	Φ600,Φ800,Φ930,Φ1000,Φ1250,Φ1400,other specifications can be customized in large quantities
Item	Weaving Machine Aluminum Beam for Itema Looms
