Double Warp Beam Trolley Jack Lifting Table Hydraulic

Minimum Order Quantity : 5 Pieces Price : $2,000.00 - $3,500.00/Pieces
Packaging Details : 1.Steel Pallet&amp;Stretch Wrapping Film for FCL(full container loaded)<br> 2.Wooden Box for LCL(less than container loaded) Supply Ability : 5000 Piece/Pieces per Month
Place of Origin: China Brand Name: xianchuang
Model Number: BLC-03

Detail Information

Color: Red Customized Support: ODM
Usage: Warp Beam Transport And Lift, Warp Beam Transport And Lift Material: High-duty Steel Structure, High-duty Steel Structure
Wheel: Four-wheel Product Name: Textile Hydraulic Lift Trolley
Core Components: Bearing, Pressure Vessel, Gear, Pump Carrying Capacity: 1000-1500kgs
Port: NINGBO/SHANGHAI
High Light:

Double Warp Beam Trolley Jacks

,

Warp Beam Trolley Jacks

,

Warp Beam Jack Trolley Double

Product Description

Guaranteed Quality Proper Price Jack Lifting Table Hydraulic Trolley

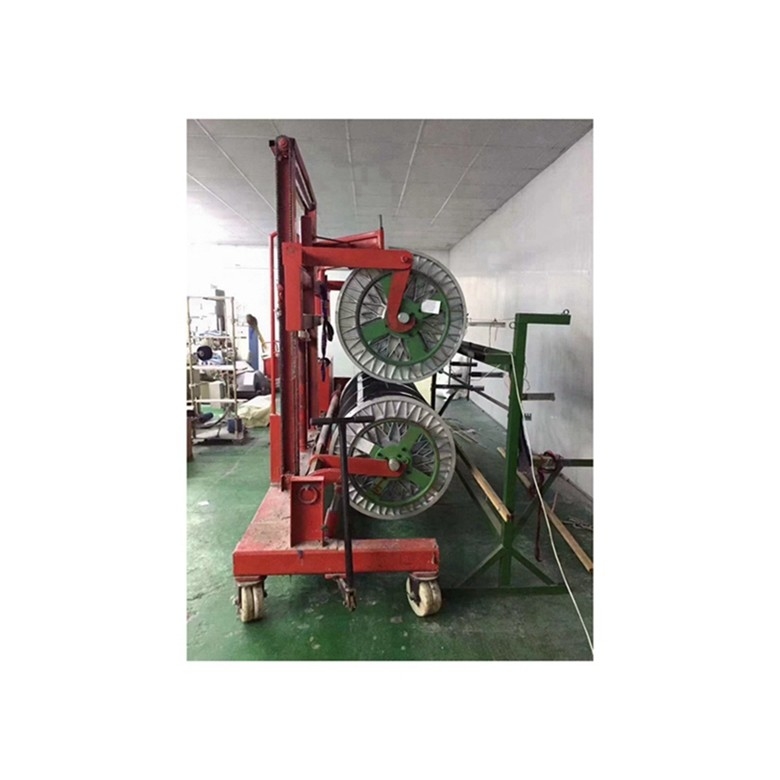

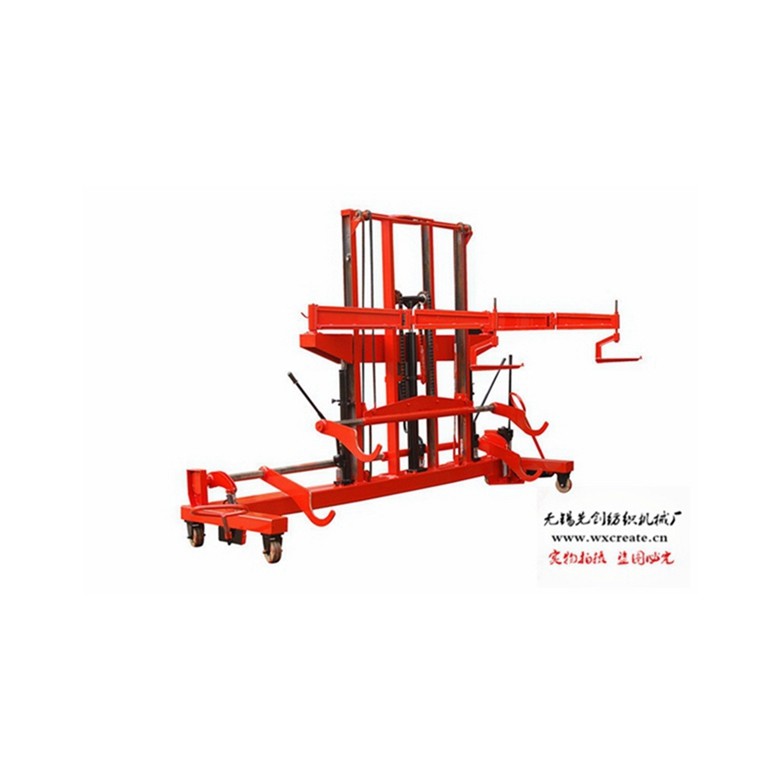

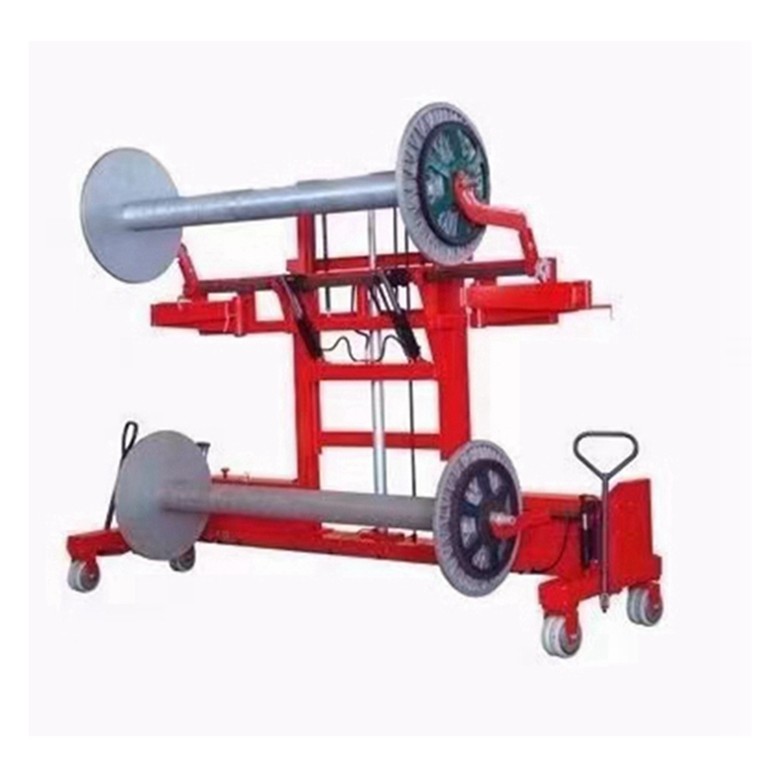

Double Warp Beam Trolley Jack Lifting Table Hydraulic 0

Suitable for Bottom Beam transporting, inserting in weaving Machines; warp beam weighing up to 2500kgs and an additional loading capacity of 400kgs for the heald farame.The harness is accommodated by the standard take-up for the harness frame or the complete warp stop motion.



Brand xianchuang
Omin BLC-03
Name Hydraulic  Warp Beam High Lift Trolley Carrying Upper and Bottom Beams Together
Material steel
Colour red
Size as customized
Characteristic Convenience And Effective
Moq 1pcs

1.Selected materials: mainly use high-quality square pipes, round steel, medium and thick plates, and export standard hydraulic components

2. Mainly production process: according to the design drawings, precision welded and formed in sheet-metal workshop, with high-performance oil pump in accordance with the export quality standards to enhance the hydraulic performance. The surface is treated with anti-rust paint to meet the customer's production demand

3. Useful:

Suitable for Bottom Beam transporting, inserting in weaving Machines; warp beam weighing up to 1500kgs and an additional loading capacity of 200kgs for the heald frame.

Apply beam barrel Diameter Φ150 -Φ400mm, beam width 1500-3900 mm, Aluminum Flange Diameter Φ800 - Φ1250 mm.

4. Features:

Four wheel synchronization, any Angle to turn and walk

Hydraulic vertical lifting of the heald frame, fast speed, high efficiency

Double cylinder synchronous lifting, balanced and stable, Upper and Bottom Beams with heald frame on the machine at the same time

Lower bracket hook horizontal sliding adjustment of the upper shaft spacing

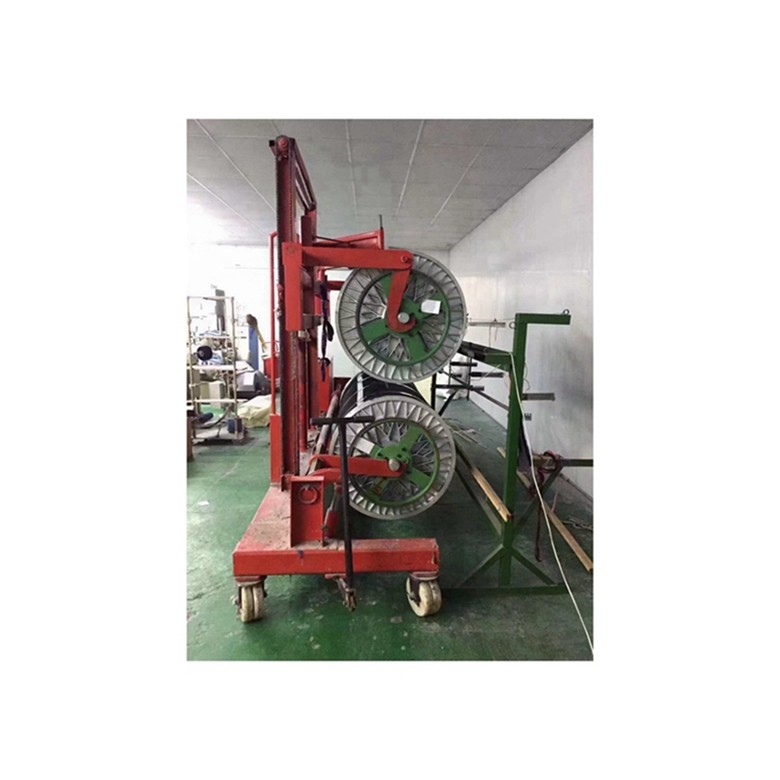

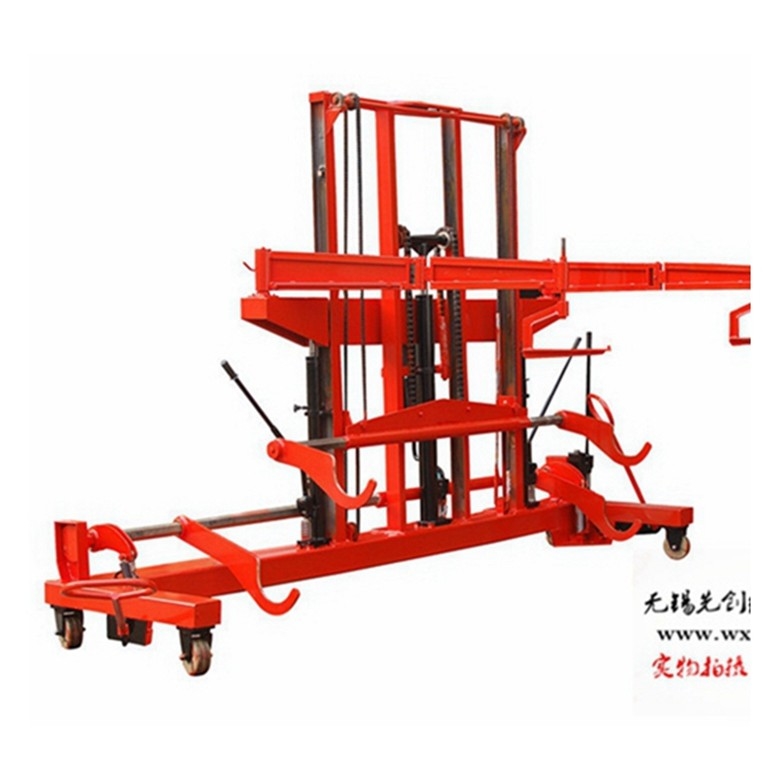

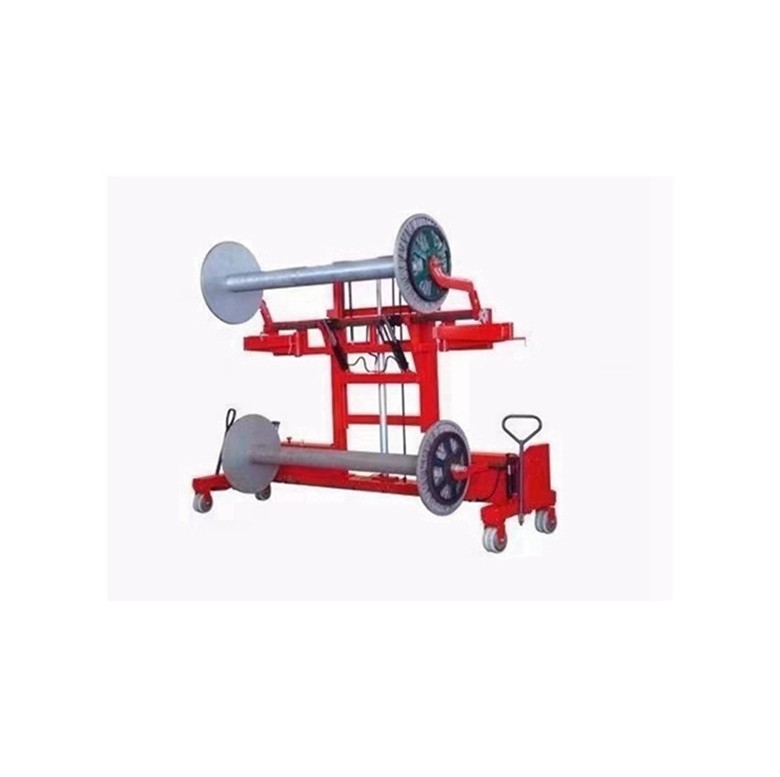

 Double Warp Beam Trolley Jack Lifting Table Hydraulic 2Double Warp Beam Trolley Jack Lifting Table Hydraulic 4Double Warp Beam Trolley Jack Lifting Table Hydraulic 6Double Warp Beam Trolley Jack Lifting Table Hydraulic 8

More Products

Double Warp Beam Trolley Jack Lifting Table Hydraulic 10

Production Line

Double Warp Beam Trolley Jack Lifting Table Hydraulic 12

Company Information

Double Warp Beam Trolley Jack Lifting Table Hydraulic 14

Certifications

Double Warp Beam Trolley Jack Lifting Table Hydraulic 16Double Warp Beam Trolley Jack Lifting Table Hydraulic 18

Packaging & Shipping

Double Warp Beam Trolley Jack Lifting Table Hydraulic 20

FAQ

Double Warp Beam Trolley Jack Lifting Table Hydraulic 22

1.Why we can choose you?
1)Reliable-We are a company with independent production workshops,we dedicate in win-win
2)Professional-We have complete manufacturing system and excellent after-sales service



2.What can you buy from us?
Design,Develop and Sell Textile Machinery and Storgage Machinery,Manufacturing and Sales of Textile Machinery and Automation Device



3.How about the price?Can you make it cheaper?
The price depend on the specifications of your product(size,quantity,raw material,etc)
Final quotation according to receiving full description of the product you want.



4.How can we guarantee the quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;



5.What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Cash;
