Manual Hydraulic Warp Beam Trolley Empty Upper And Bottom Beams Carried Together

Minimum Order Quantity : 5 Pieces Price : $2,000.00 - $3,500.00/Pieces
Packaging Details : 1.Steel Pallet&amp;Stretch Wrapping Film for FCL(full container loaded)<br> 2.Wooden Box for LCL(less than container loaded) Supply Ability : 5000 Piece/Pieces per Month
Place of Origin: China Brand Name: xianchuang
Model Number: BLC-03

Detail Information

Dimension (L X W X H): As Customized Warranty: 13 Months
Color: Red Customized Support: ODM
Usage: Warp Beam Transport And Lift, Warp Beam Transport And Lift Material: High-duty Steel Structure, High-duty Steel Structure
Wheel: Four-wheel Product Name: Textile Hydraulic Lift Trolley
Core Components: Bearing, Pressure Vessel, Gear, Pump Carrying Capacity: 1000-1500kgs
Port: NINGBO/SHANGHAI
High Light:

Manual hydraulic warp beam trolley

,

Hydraulic Empty Warp Beam Lift Trolley

,

Warp Beam Handling System xianchuang

Product Description

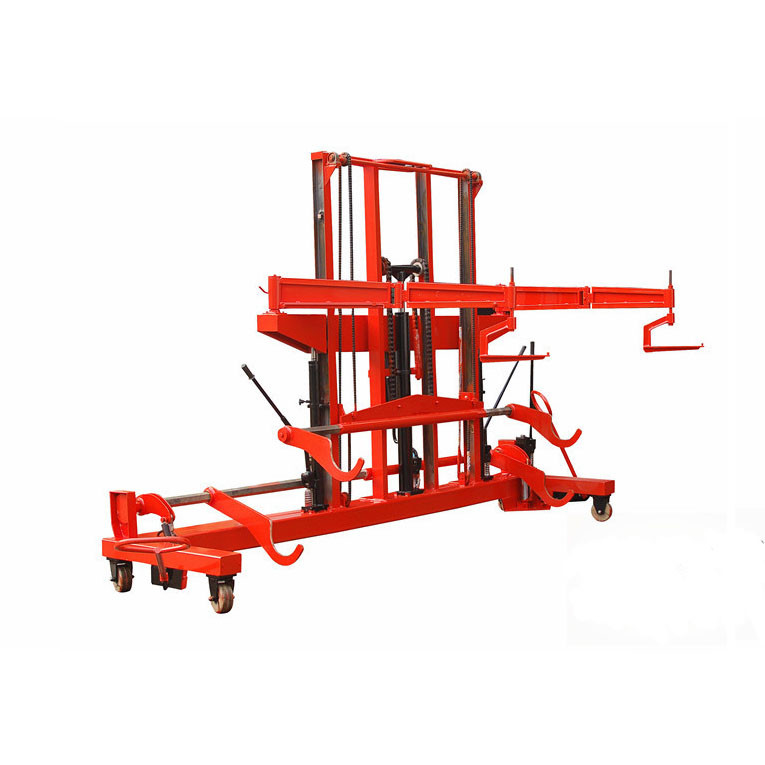

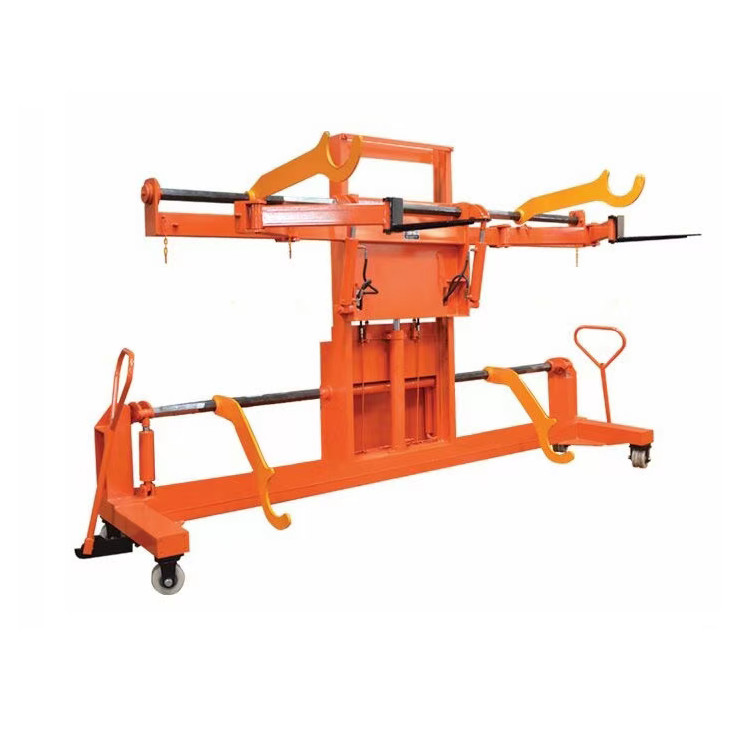

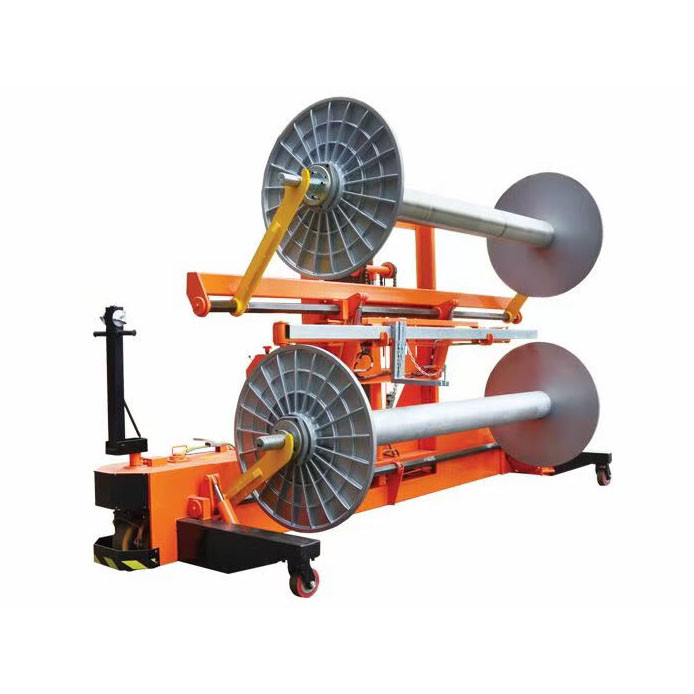

Hand Hydraulic Warp Beam Upper and Bottom Beams Carried Together

Manual Hydraulic Warp Beam Trolley Empty Upper And Bottom Beams Carried Together 0



Brand xianchuang
Omin BLC-03
Name Hydraulic  Warp Beam High Lift Trolley Carrying Upper and Bottom Beams Together
Material steel
Colour red
Size as customized
Characteristic Convenience And Effective
Moq 1pcs

1.Selected materials: mainly use high-quality square pipes, round steel, medium and thick plates, and export standard hydraulic components

2. Mainly production process: according to the design drawings, precision welded and formed in sheet-metal workshop, with high-performance oil pump in accordance with the export quality standards to enhance the hydraulic performance. The surface is treated with anti-rust paint to meet the customer's production demand

3. Useful:

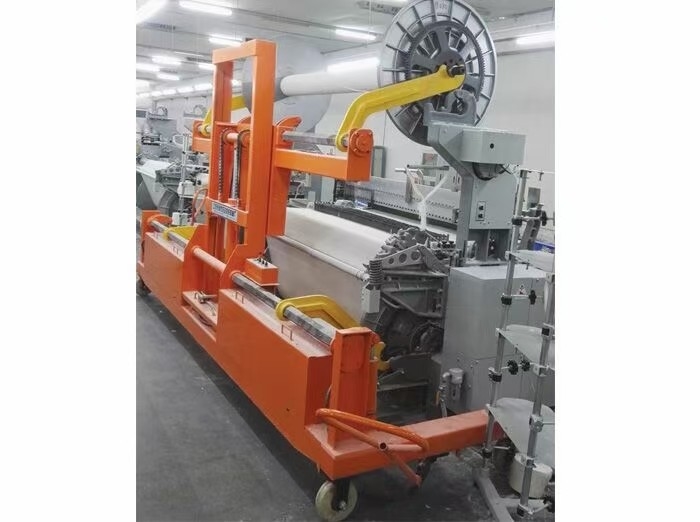

Suitable for Bottom Beam transporting, inserting in weaving Machines; warp beam weighing up to 1500kgs and an additional loading capacity of 200kgs for the heald frame.

Apply beam barrel Diameter Φ150 -Φ400mm, beam width 1500-3900 mm, Aluminum Flange Diameter Φ800 - Φ1250 mm.

4. Features:

Four wheel synchronization, any Angle to turn and walk

Hydraulic vertical lifting of the heald frame, fast speed, high efficiency

Double cylinder synchronous lifting, balanced and stable, Upper and Bottom Beams with heald frame on the machine at the same time

Lower bracket hook horizontal sliding adjustment of the upper shaft spacing

 Manual Hydraulic Warp Beam Trolley Empty Upper And Bottom Beams Carried Together 2Manual Hydraulic Warp Beam Trolley Empty Upper And Bottom Beams Carried Together 4Manual Hydraulic Warp Beam Trolley Empty Upper And Bottom Beams Carried Together 6Manual Hydraulic Warp Beam Trolley Empty Upper And Bottom Beams Carried Together 8
