Air Jet Loom Winding Cloth Rolling Machine 1500mm

Price :	$2,000.00 - $3,000.00/Pieces	Packaging Details :	Steel Pallet&Stretch Wrapping Film for FCL(full container loaded)
Supply Ability :	100 Piece/Pieces per Month

Place of Origin:	Jiangsu, China	Brand Name:	Xianchuang

Detail Information
Warranty Of Core Components:	1 Year	Core Components:	Bearing, Gearbox, Motor, Pressure Vessel, Gear
Voltage:	380v, According To Actual Condition	Dimension(LWH):	As Customized
Weight:	800 KG	Warranty:	1 Year
Product Name:	Horizontal Cloth Fabric Roll Winding Machine For Weaving	Usage:	Weaving Loom Machine
Power:	0.25kw,50 Hz	Dimension:	As Per Customer's Fabric Width
Fabric Width:	1.2-4.5meters	Max Winding Diameter:	1500mm
Edge Alignment Error:	Less Than 5mm	Port:	NINGBO/SHANGHAI
High Light:	loom Winding Cloth Rolling Machine 1500mm , Cloth Rolling Machines 1500mm , air jet loom textile machine 1500mm

Product Description

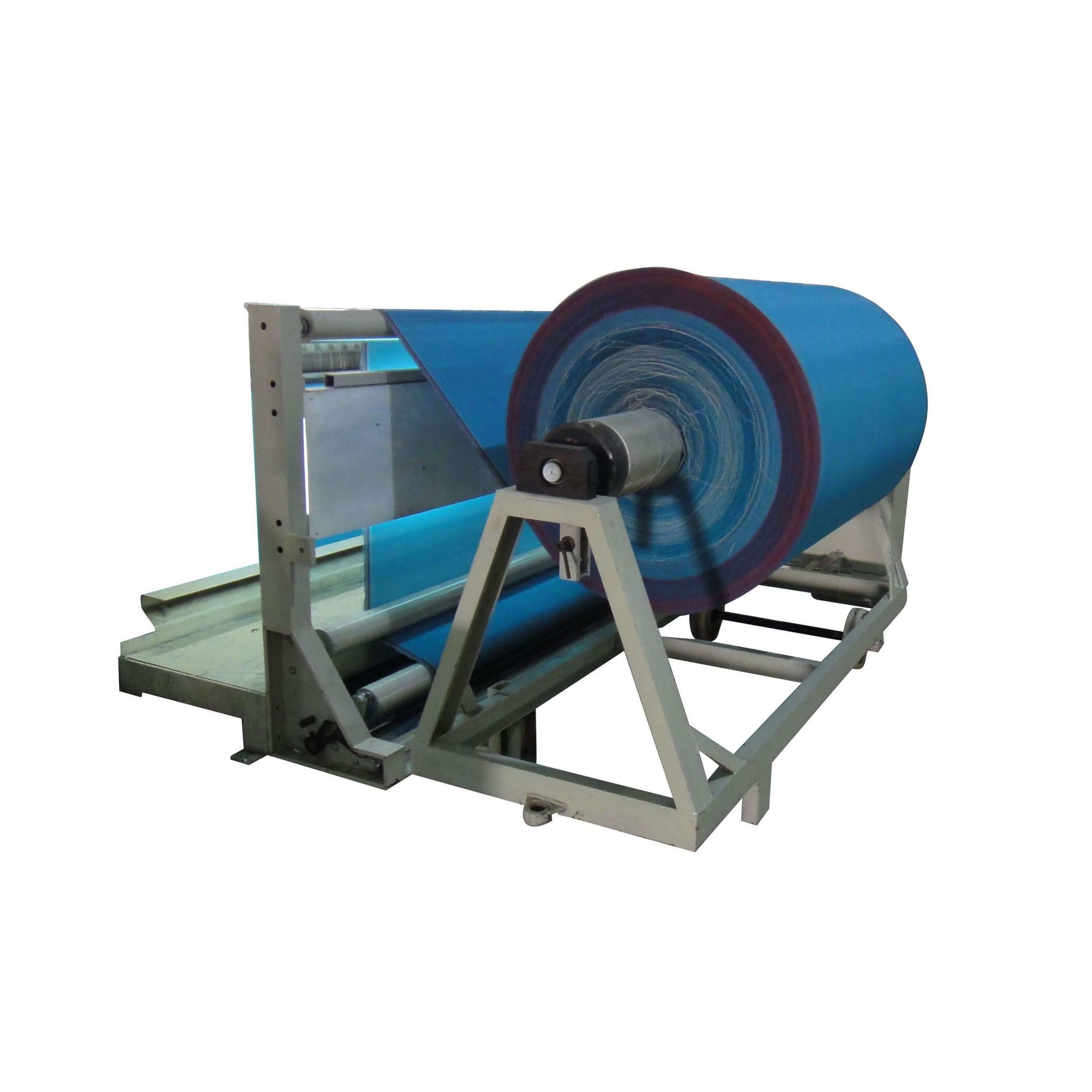

Factory Wholesale A Frame for fabric rolls winding machine Loom Winding Machine

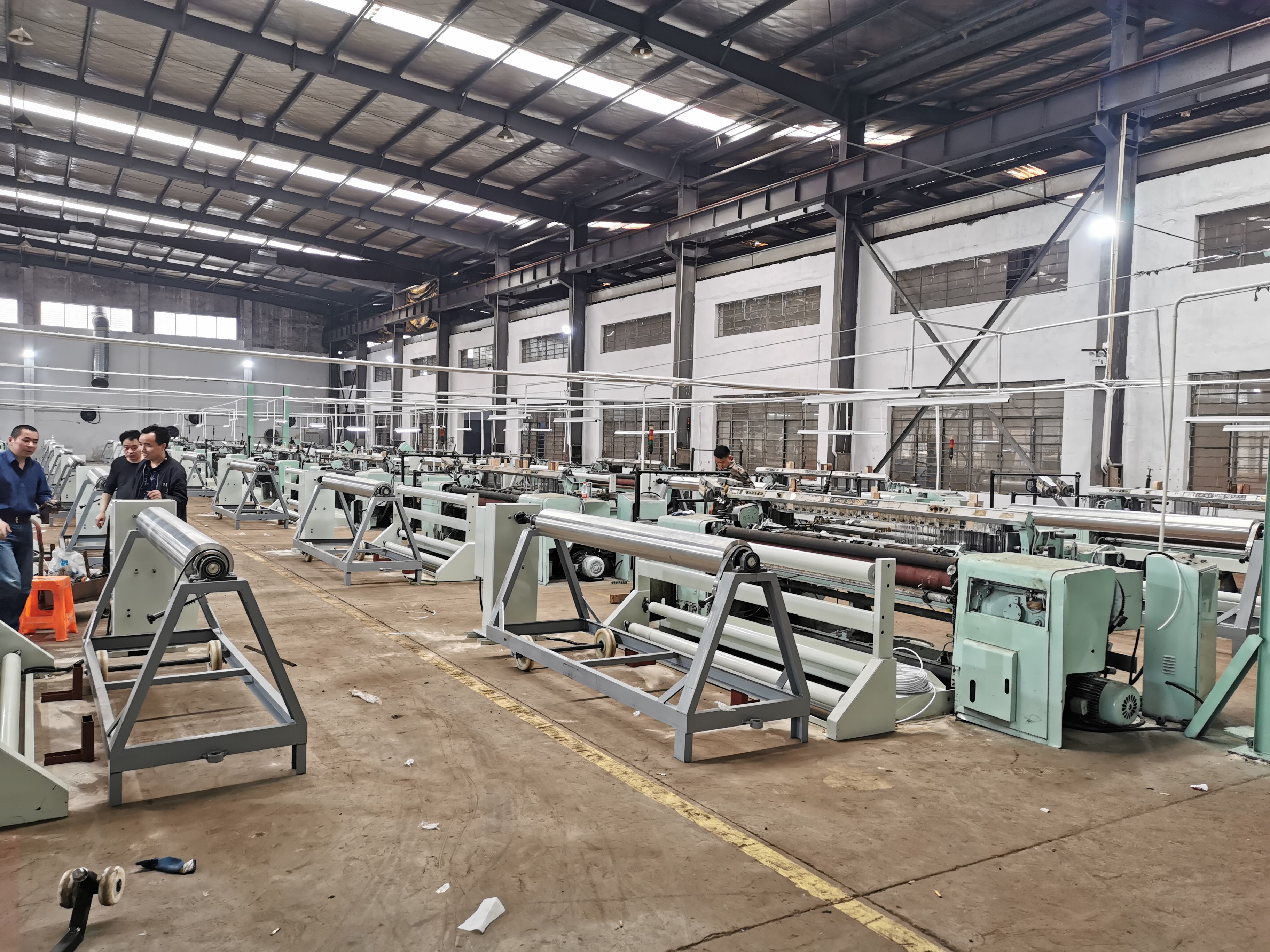

Horizontal Cloth Winder can be widely used to connect air jet, rapier, projectile, water
jet and other manufacturers of weaving machines.It can be used for rolling common cotton and chemical fiber fabric, as well as industrial cloth such as glass fiber and geotextile.
1. Less fabric waste and increase efficiency
2. Fast and easily handled, one operator can take care of multiple machines
3. High degree of automation, can automatically track the start, stop and speed changes of the loom, to set the tension for smooth winding.
4. Variable working width is possible

Main Technical Features

Technical Specifications
* Speed:Synchronized with Weaving Machines
* Fabric Width:1.2-4.5meters
* Max winding diameter:1500mm (standard:1200mm)
* Edge-alignment Error:≤5mm
* Dimension(L*W*H):As per customer's fabric width
* Electric Specs:3Phase-380V; 50HZ(can be adjusted to suit for difffferent countries.)
* Frequency converter control electrical mode
* Automatic winding, stop, manual reversal and other operation functions

machine structure
* A-frameplatform with anti-fatigue material

* A power-driven trolley composed of gears, chains and motors
* A Tension control platform
* Non-slip foot pedal
* Option - Inspection tablewith LED
* Option - Man-machine interface operation mode
* Option - Accurate length measuring giving accuracy of ± 0.01%
* Option - Pneumatic press roller device designed for tighter cloth winding
