Fabric Cloth Rolling Machine For Inspection Table With Led

Price :	$2,000.00 - $3,000.00/Pieces	Packaging Details :	Steel Pallet&Stretch Wrapping Film for FCL(full container loaded)
Supply Ability :	100 Piece/Pieces per Month

Place of Origin:	Jiangsu, China	Brand Name:	Xianchuang

Detail Information
Applicable Industries:	Manufacturing Plant, Other, Weaving Factory, Textile Factory	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Bearing, Gearbox, Motor, Pressure Vessel, Gear	Condition:	New
Application:	Weaving Loom Machine	Automatic Grade:	Automatic
Production Capacity:	According To Actual Condition	Memory Capacity:	Synchronized With Weaving Machines
Voltage:	380v, According To Actual Condition	Power:	0.25kw,50 Hz, 0.25kw,50 Hz
Dimension(LWH):	As Customized	Weight:	190 KG
Warranty:	1 Year	Product Name:	Cloth Roll Winder For Inspection Table With Led
Usage:	Weaving Loom Machine	Dimension:	As Per Customer's Fabric Width
Fabric Width:	1.2-4.5meters	Max Winding Diameter:	1500mm
Edge Alignment Error:	Less Than 5mm	Speed:	Synchronized With Weaving Machines
Item:	Fabric Roll Winder	After Warranty Service:	Video Technical Support, No Service, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:	None	After-sales Service Provided:	Free Spare Parts, Video Technical Support, Online Support, Field Maintenance And Repair Service
Port:	NINGBO/SHANGHAI
High Light:	Fabric Cloth Rolling Machine , Cloth Rolling Machine For Inspection Table , fabric roll winding machinery

Product Description

Factory Hot Sales Fabric Roll Winder Winding Machine For Weaving For Inspection Table With Led

cloth rolling machine
fabric roll winding machine
textile loom machine
Horizontal Winding Machine
Automatic Winding Machine
fabric roll winding machine
fabric rolling machine
fabric winder
fabric winder
fabric winder machine
fabric winder machine

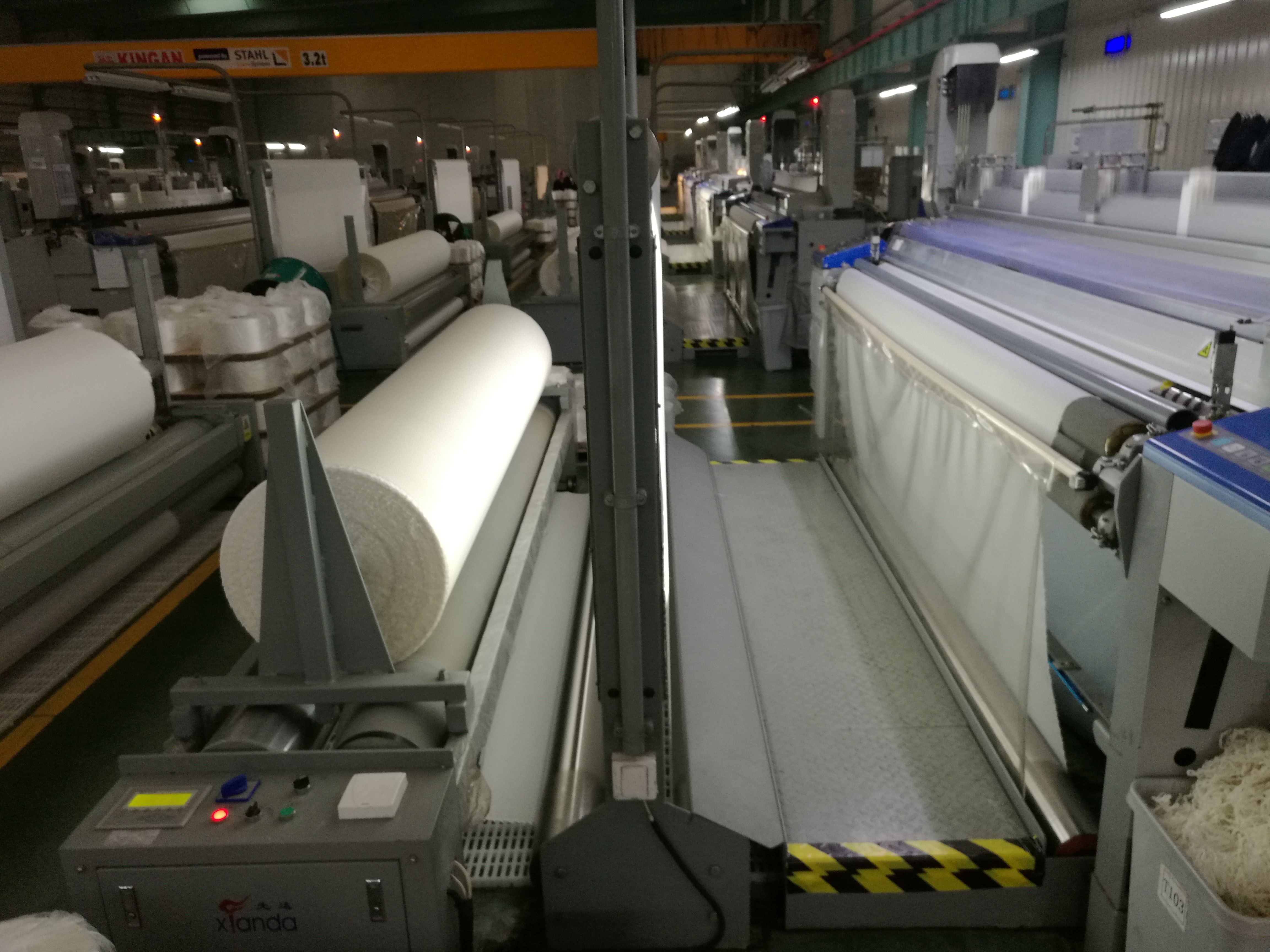

Horizontal Cloth Winder can be widely used to connect air jet, rapier, projectile, water
jet and other manufacturers of weaving machines.It can be used for rolling common cotton and chemical fiber fabric, as well as industrial cloth such as glass fiber and geotextile.
1. Less fabric waste and increase efficiency
2. Fast and easily handled, one operator can take care of multiple machines
3. High degree of automation, can automatically track the start, stop and speed changes of the loom, to set the tension for smooth winding.
4. Variable working width is possible

Main Technical Features

Technical Specifications
* Speed:Synchronized with Weaving Machines
* Fabric Width:1.2-4.5meters
* Max winding diameter:1500mm (standard:1200mm)
* Edge-alignment Error:≤5mm
* Dimension(L*W*H):As per customer's fabric width
* Electric Specs:3Phase-380V; 50HZ(can be adjusted to suit for difffferent countries.)
* Frequency converter control electrical mode
* Automatic winding, stop, manual reversal and other operation functions

machine structure
* The diameter of the two winding rollers is Φ217mm, one roller is covered with anti-skid rubber, the other roller is galvanized or sprayed with plastic.

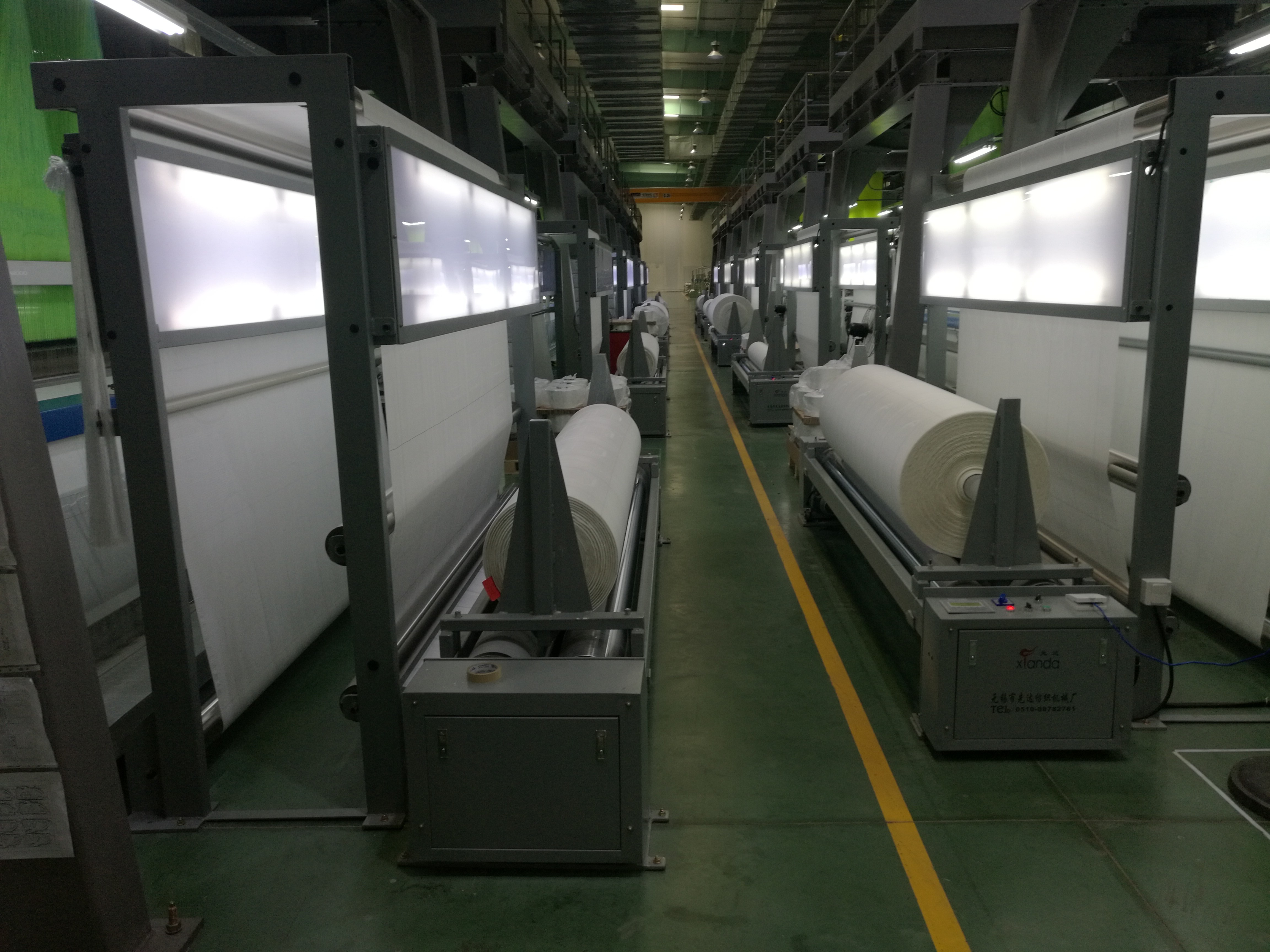

* Non-slip foot pedal * Option - Inspection table with LED * Option - Man-machine interface operation mode * Option - Accurate length measuring giving accuracy of ± 0.01% * Semi-automatic doffing device(pneumatic roll ejection device) or Manual doffing device(Manual roll ejection device)

* Option - Automatic fabric selvedge shifter for thick selvedge.
* Option - Electric press roller lifting device designed for tighter cloth coiling

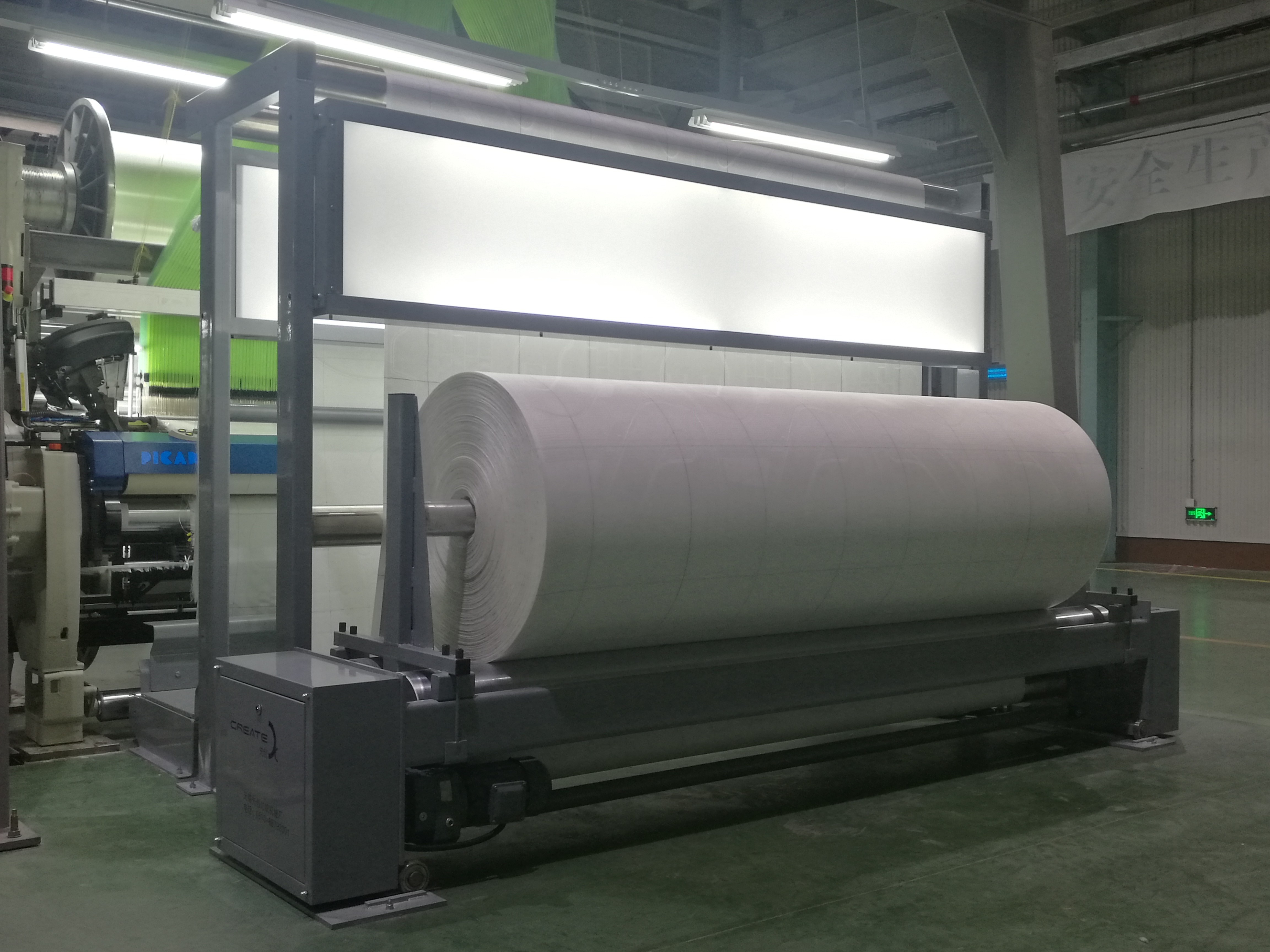

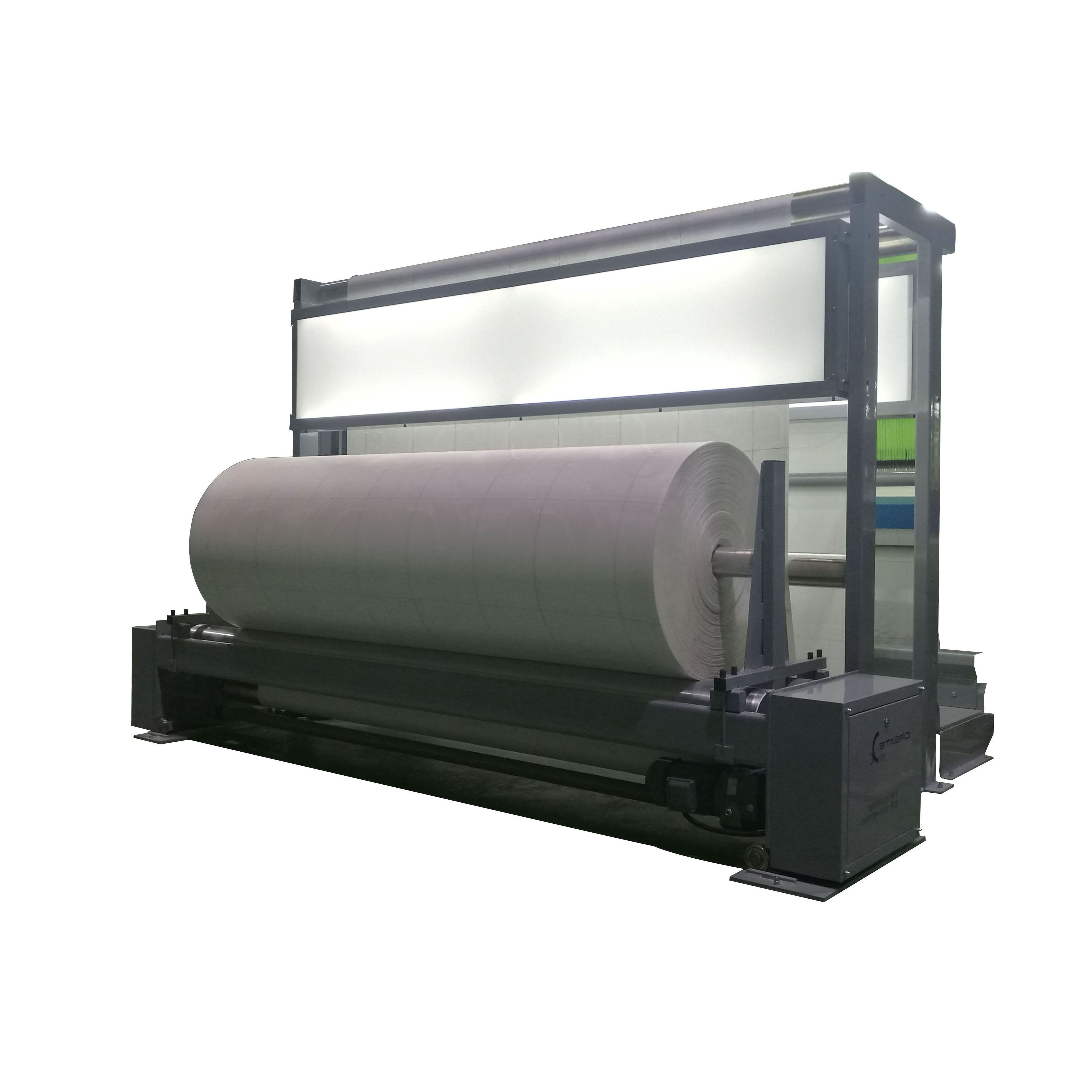

Cloth Roll Winder For Inspection Table With Led
Place of Origin	Jiangsu, China
Brand Name	Xianchuang
Warranty	The core components are guaranteed for 1 year
Applicable Industries	Weaving Factory, Textile Factory
Usage	Weaving Loom Machine
Power	0.25kw,50 Hz
Voltage	According to actual condition
Max winding diameter	1500mm (standard:1200mm)
Speed	Synchronized with Weaving Machines
Item	Fabric Roll Winder
