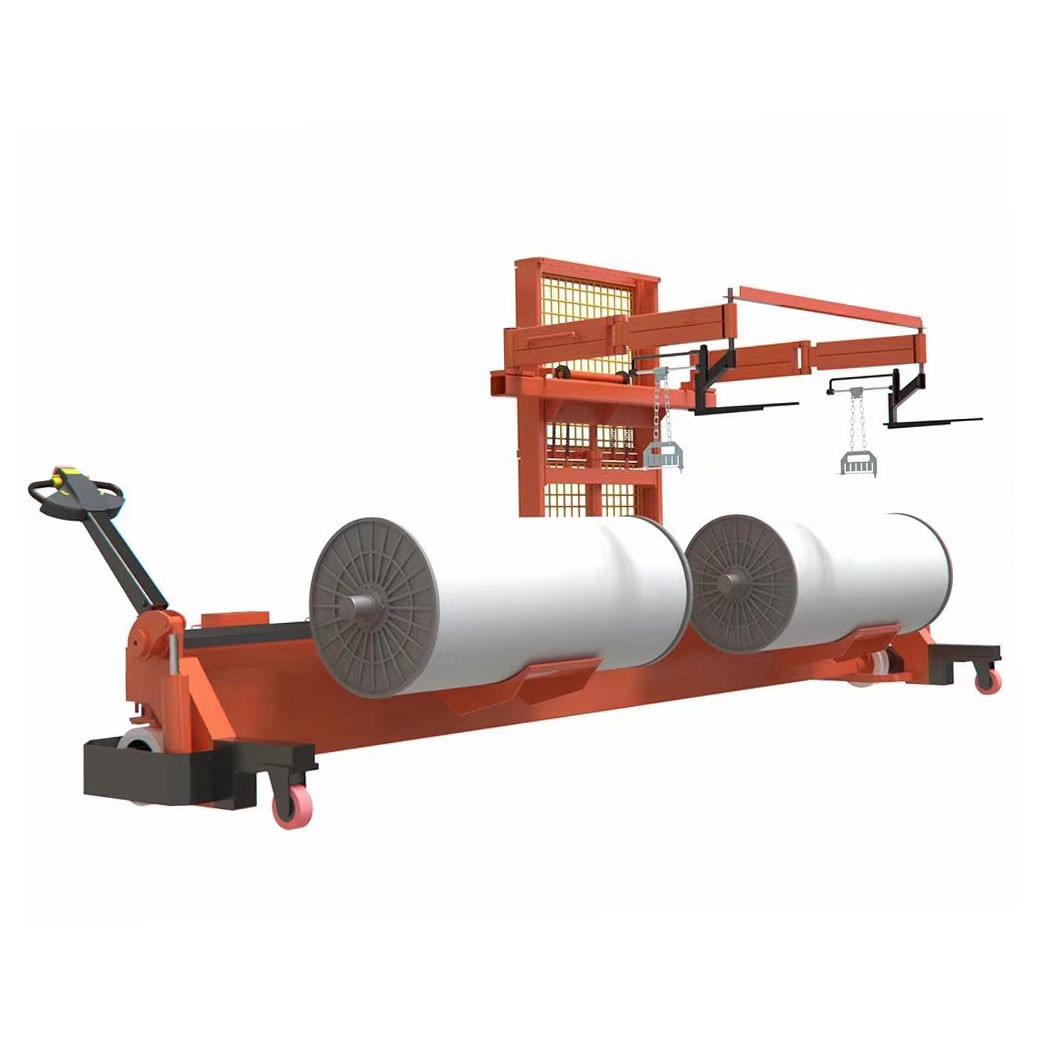

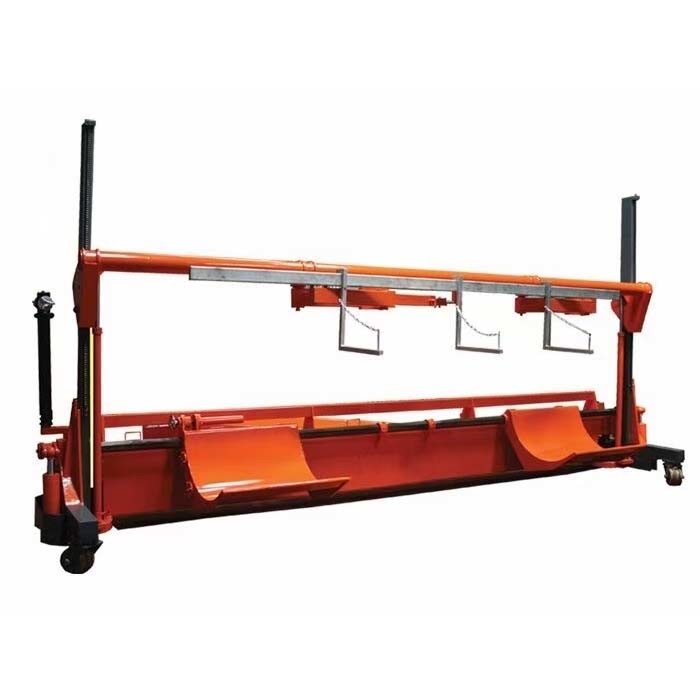

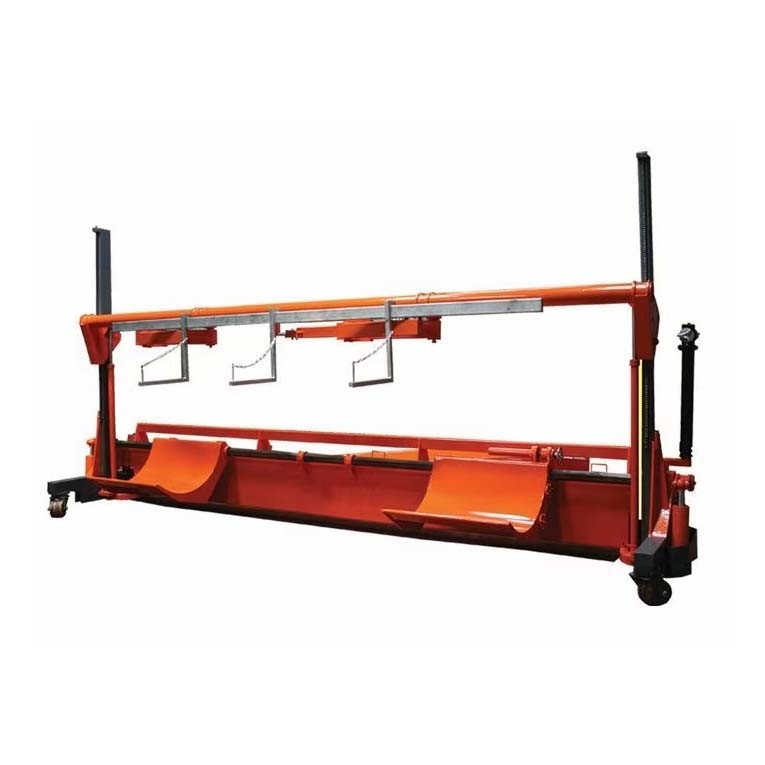

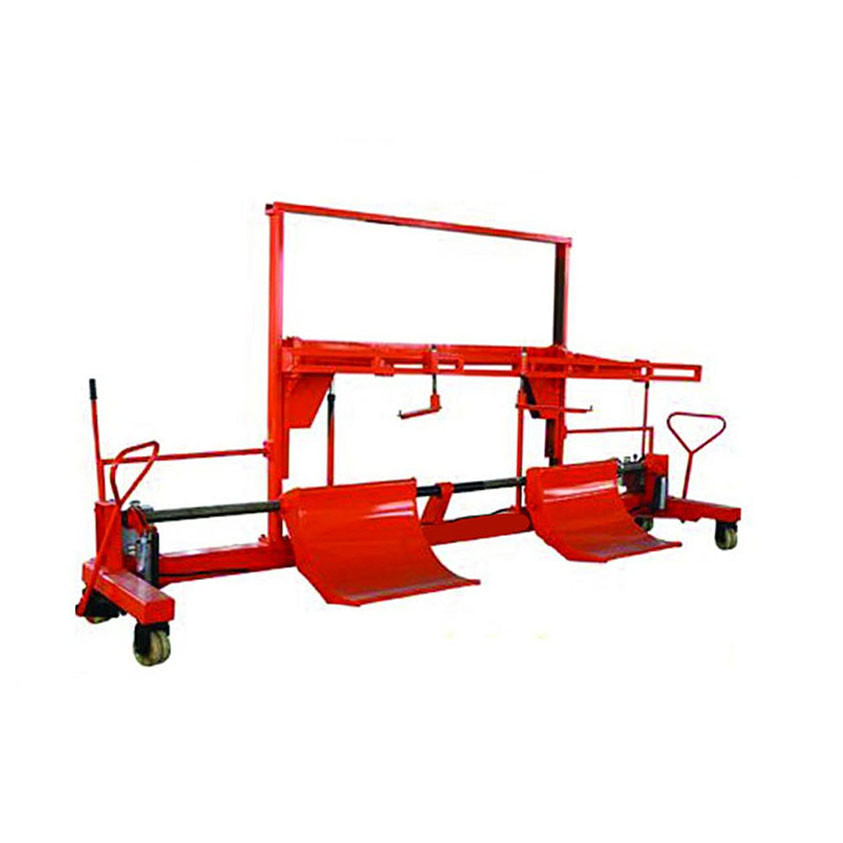

Hydraulic Double Twin Warp Beam Trolley Lift With Harness Mounting Device

Price :	$2,000.00 - $3,000.00/Pieces	Packaging Details :	1.Steel Pallet&Stretch Wrapping Film for FCL(full container loaded)<br> 2.Wooden Box for LCL(less than container loaded)
Supply Ability :	50 Set/Sets per Month

Place of Origin:	Jiangsu, China	Brand Name:	Xianchuang
Model Number:	BLC-04

Detail Information
Dimension (L X W X H):	As Customized	Warranty:	1 Year
Customized Support:	OEM	Usage:	Industrial, Warp Beam Transport And Lift
Material:	Steel	Wheel:	Four-wheel
Name:	Textile Hydraulic Lift Trolley	Applicable Industries:	Weaving Factory
Hydraulic Cylinders:	Two	Hydraulic Unit:	One
Weight:	As Per Order	Dimension:	As Customized
Feature:	Convenience And Effective	Beam Barrel Diameter:	100-400mm
Core Components:	Bearing, Pressure Vessel, Gear, Pump	Port:	NINGBO/SHANGHAI
High Light:	Hydraulic Twin Warp Beam Lift Trolley , double beam trolley For Raising Loads Of All Sizes , Hydraulic Beam Lifting Trolley Xianchuang

Product Description

New Design Hydraulic Twin Beam trolley Cloth roll transport Trolley

warp beam lift truck
warp beam lifting
warp beam lifting trolley
warp beam machine
warp beam manufacturers
warp beam process
warp beam truck

Name	Textile Hydraulic Lift Trolley
Place of Origin	Jiangsu, China
Brand Name	Xianchuang
Usage	Warp Beam Transport and Lift
Material	High-duty Steel Structure
Wheel	Four-wheel
Carrying Capacity	1000-1500kgs
Hydraulic Cylinders	Two
Hydraulic Unit	One
Weight	as per order
Beam flange diameter	Φ800-Φ1250mm
Beam barrel diameter	Φ100-Φ400mm

1. Mainly production process: according to the design drawings, precision welded and formed in sheet-metal workshop, with high-performance oil pump in accordance with the export quality standards to enhance the hydraulic performance. The surface is teated with anti-rust paint to meet the customer's production demand

2. Useful

* Suitable for Bottom Beam transporting, inserting in weaving Machines; warp beam weighing up to 1500kgs and an additional loading capacity of 200kgs for the heald frame. * Apply beam barrel Diameter Φ150 -Φ400mm, beam width 1500-3900 mm, Aluminum Flange Diameter Φ800 - Φ1250 mm.

3. Features

* Four wheel synchronization, any Angle to turn and walk

* Hydraulic vertical lifting of the heald frame, fast speed, high efficiency

* Double cylinder synchronous lifting, balanced and stable, beamwith heald frame on the machine at the same

time

* Lower bracket hook horizontal sliding adjustment of the upper shaft spacing
