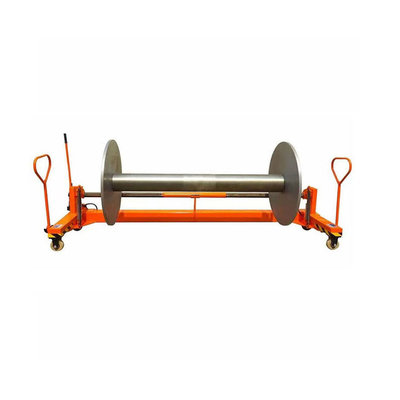

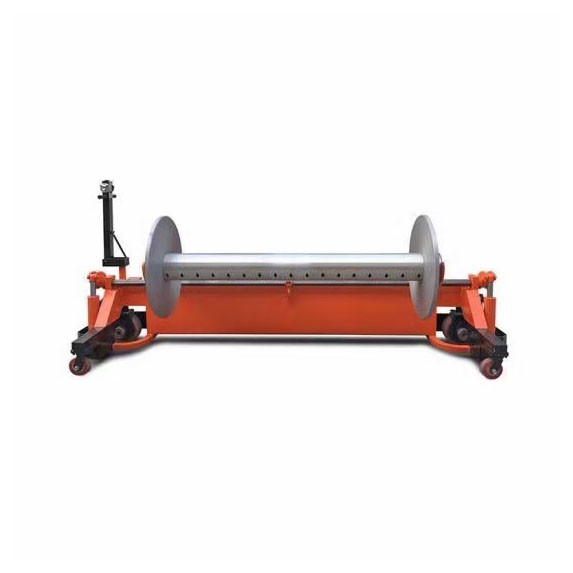

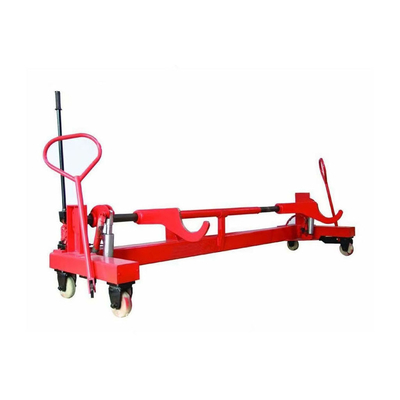

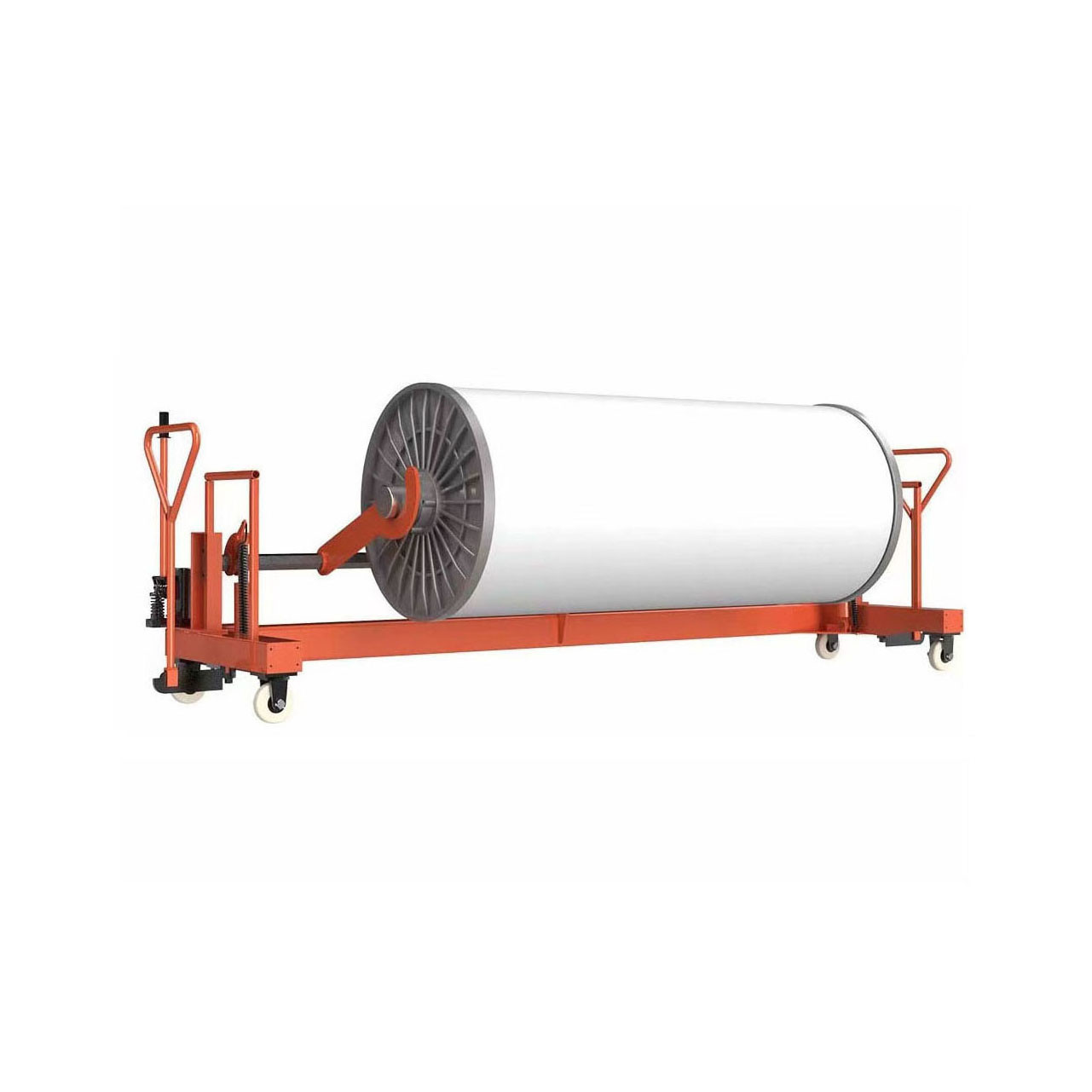

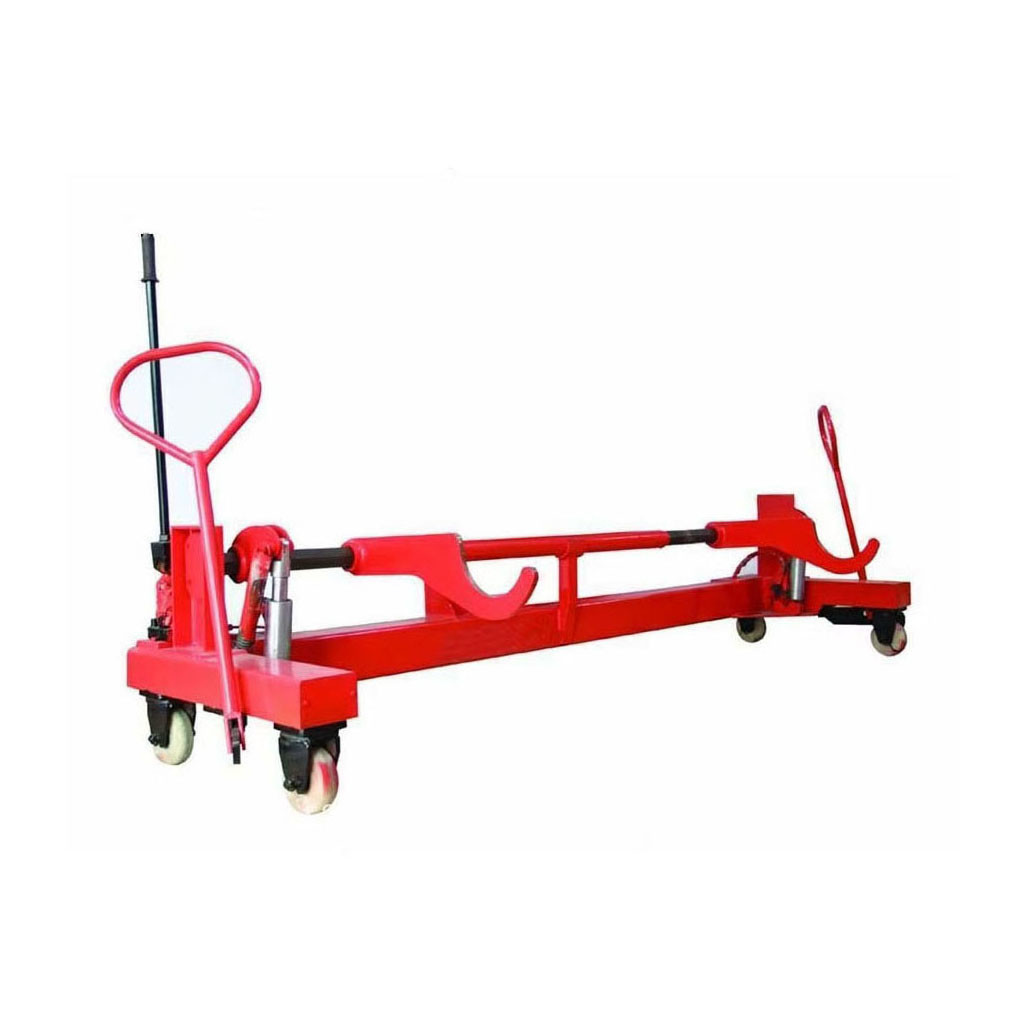

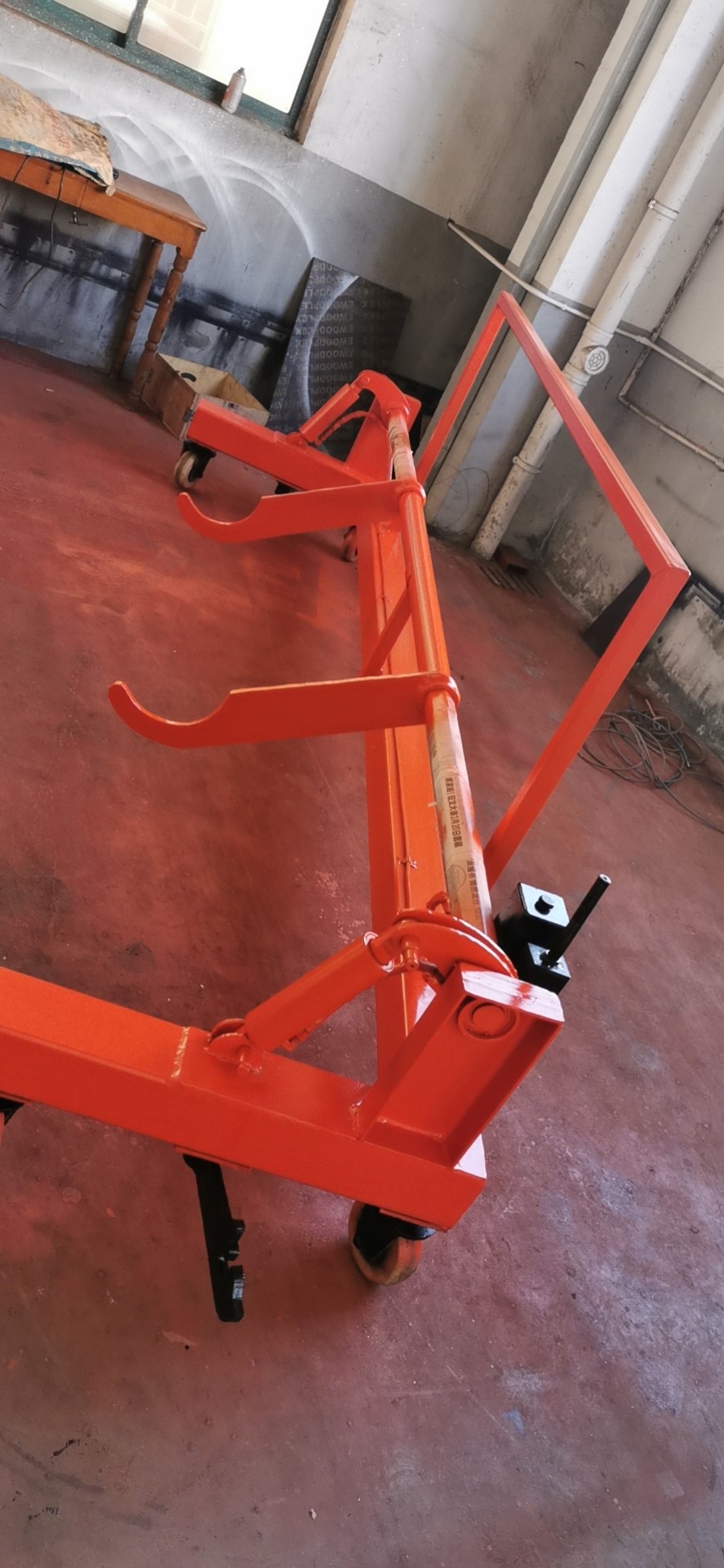

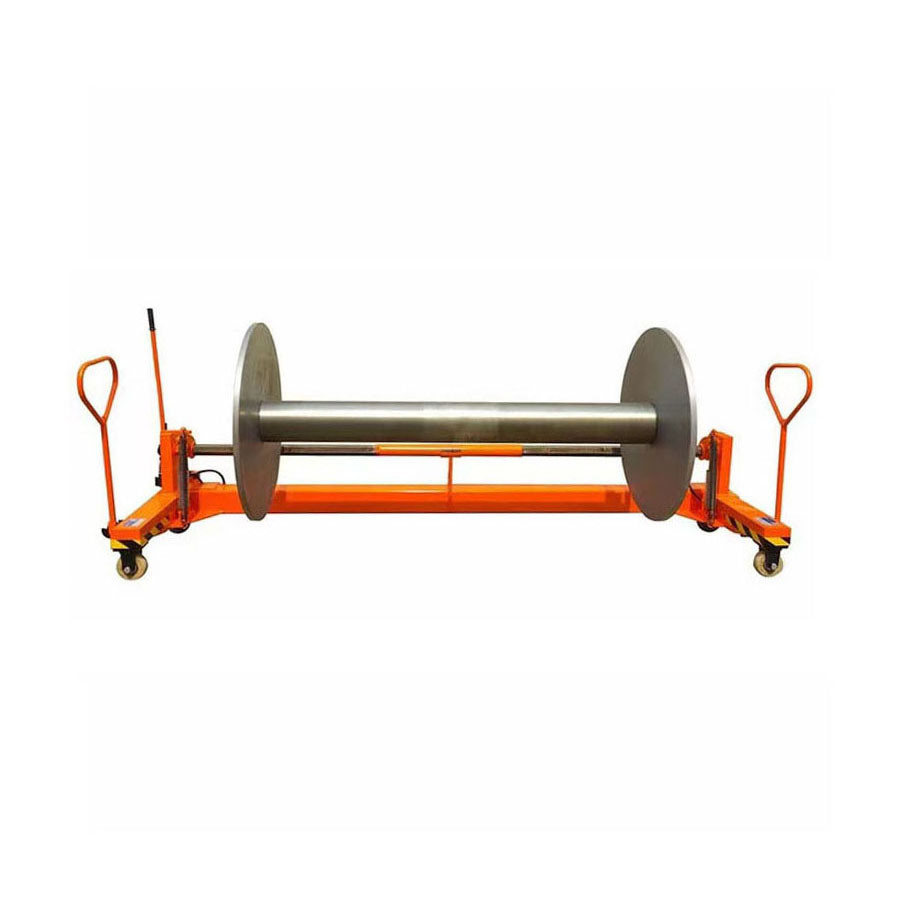

OEM Hydraulic Beams Textile Hand Lift Trolley 400mm 1500kgs

Price :	$2,000.00 - $3,000.00/Pieces	Packaging Details :	1.Steel Pallet&Stretch Wrapping Film for FCL(full container loaded)<br> 2.Wooden Box for LCL(less than container loaded)
Supply Ability :	50 Set/Sets per Month

Place of Origin:	Jiangsu, China	Brand Name:	Xianchuang
Model Number:	BLC-05

Detail Information
Dimension (L X W X H):	As Customized	Warranty:	13 Months
Color:	Brown, Silver	Customized Support:	OEM
Usage:	Tools, Warp Beam Transport And Lift	Structure:	Roll Container
Material:	Steel	Wheel:	Four-wheel
Name:	Textile Hydraulic Lift Trolley	Applicable Industries:	Weaving Factory
Hydraulic Cylinders:	Two	Hydraulic Unit:	One
Weight:	As Per Order	Dimension:	As Customized
Feature:	Convenience And Effective	Beam Barrel Diameter:	100-400mm
Core Components:	Bearing, Pressure Vessel, Gear, Pump	Port:	NINGBO/SHANGHAI
High Light:	OEM Textile Hydraulic Lift Trolley , Textile hand lift trolley 400mm , 1500kgs Hydraulic Textile hand lift trolley

Product Description

1. Mainly production process: according to the design drawings, precision welded and formed in sheet-metal workshop, with high-performance oil pump in accordance with the export quality standards to enhance the hydraulic performance. The surface is teated with anti-rust paint to meet the customer's production demand
2. Useful
* Suitable for Bottom Beam transporting, inserting in weaving Machines; warp beam weighing up to 1500kgs and an additional loading capacity of 200kgs for the heald frame. * Apply beam barrel Diameter Φ150 -Φ400mm, beam width 1500-3900 mm, Aluminum Flange Diameter Φ800 - Φ1250 mm.
3. Features
* Four wheel synchronization, any Angle to turn and walk
* Hydraulic vertical lifting of the heald frame, fast speed, high efficiency
* Double cylinder synchronous lifting, balanced and stable, beamwith heald frame on the machine at the same
time
* Lower bracket hook horizontal sliding adjustment of the upper shaft spacing

Name	Textile Hydraulic Lift Trolley
Place of Origin	Jiangsu, China
Brand Name	Xianchuang
Usage	Warp Beam Transport and Lift
Material	High-duty Steel Structure
Wheel	Four-wheel
Carrying Capacity	1000-1500kgs
Hydraulic Cylinders	Two
Hydraulic Unit	One
Weight	as per order
Beam flange diameter	Φ800-Φ1250mm
Beam barrel diameter	Φ100-Φ400mm
