Motorized Warp Beam Lift Truck High Lift Hydraulic Heald Frame Material Handling Tools

Minimum Order Quantity :	5 Pieces	Price :	$3,200.00/Pieces 5-29 Pieces
Packaging Details :	1.Steel Pallet&Stretch Wrapping Film for FCL(full container loaded)<br> 2.Wooden Box for LCL(less than container loaded)	Delivery Time :	4-7 weeks
Payment Terms :	L/C, T/T	Supply Ability :	50 Set/Sets per Month

Place of Origin:	Jiangsu, China	Brand Name:	Xianchuang
Model Number:	BLC-01

Detail Information
Dimension (L X W X H):	As Customized	Name:	Textile Hydraulic Lift Trolley
Warranty:	13 Months	Usage:	Tools, Warp Beam Transport And Lift
Structure:	Enclosed	Material:	Steel
Wheel:	Four-wheel	Hydraulic Cylinders:	Two
Hydraulic Unit:	One	Weight:	As Per Order
Dimension:	As Customized	Feature:	Convenience And Effective
Beam Barrel Diameter:	100-400mm	Core Components:	Bearing, Pressure Vessel, Gear, Pump
Size:	Customer Size	Port:	NINGBO/SHANGHAI
High Light:	motorized Warp Beam Lift truck , Warp Beam Lift Truck High Lift , warp beam truck

Product Description

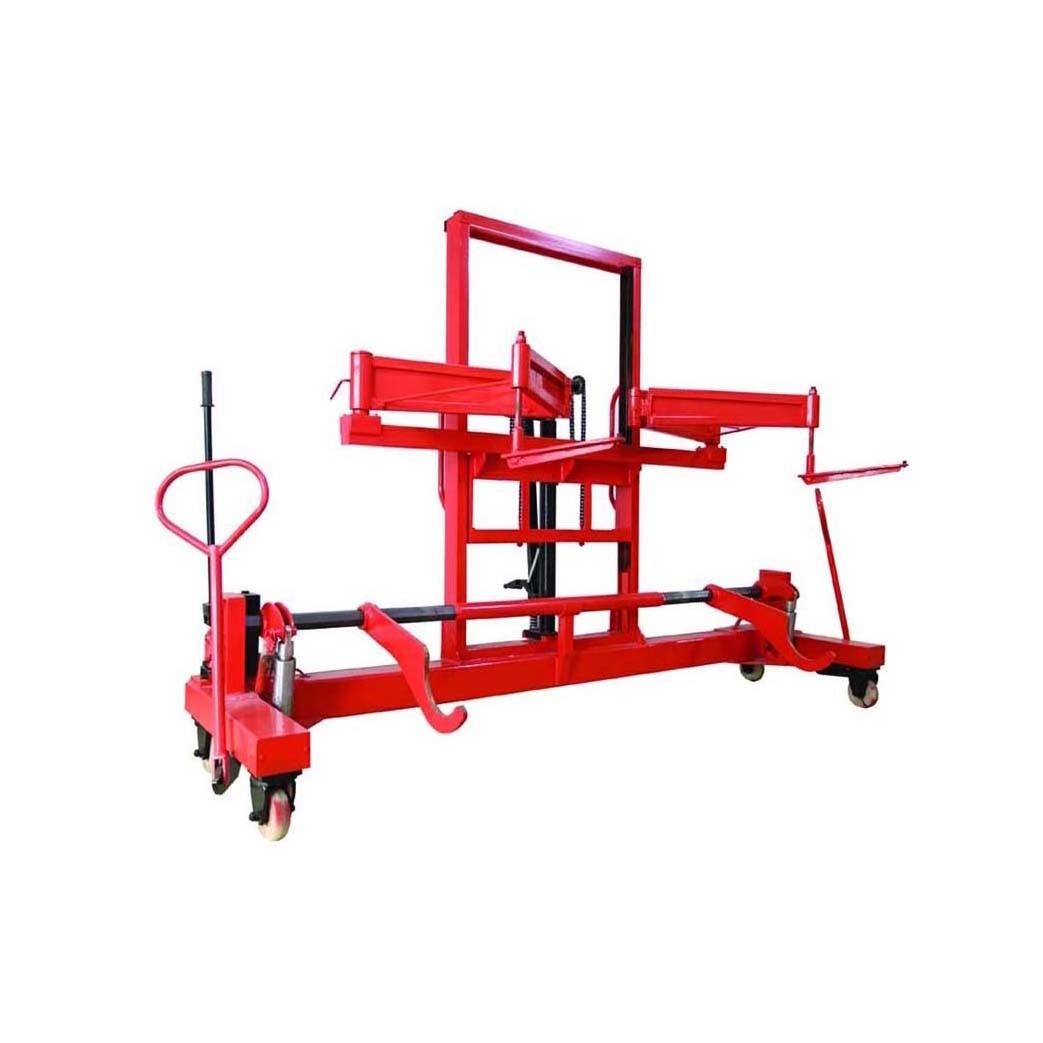

Top Quality Hydraulic Heald Frame Material Handling Tools Electrically Powered Warp Beam Lift truck

Separate steering by push/pull bar at both sides.
Steering in travelling direction fixable on the left and right side.
Two steered wheels and two guided wheels.
Wheels with ball bearings and thread protection caps.
Lifting movement by the hydraulic foot pedal with automatic quick lift.
Harness mounting device.The carrying arms are guided parallel to keep the warp tension even.

Name	Textile Hydraulic Lift Trolley
Place of Origin	Jiangsu, China
Brand Name	Xianchuang
Usage	Warp Beam Transport and Lift
Material	High-duty Steel Structure
Wheel	Four-wheel
Carrying Capacity	1000-1500kgs
Hydraulic Cylinders	Two
Hydraulic Unit	One
Weight	as per order
Beam flange diameter	Φ800-Φ1250mm
Beam barrel diameter	Φ100-Φ400mm
