100mm Textile Warp Beam Trolley Hydraulic Weaving Four Wheel

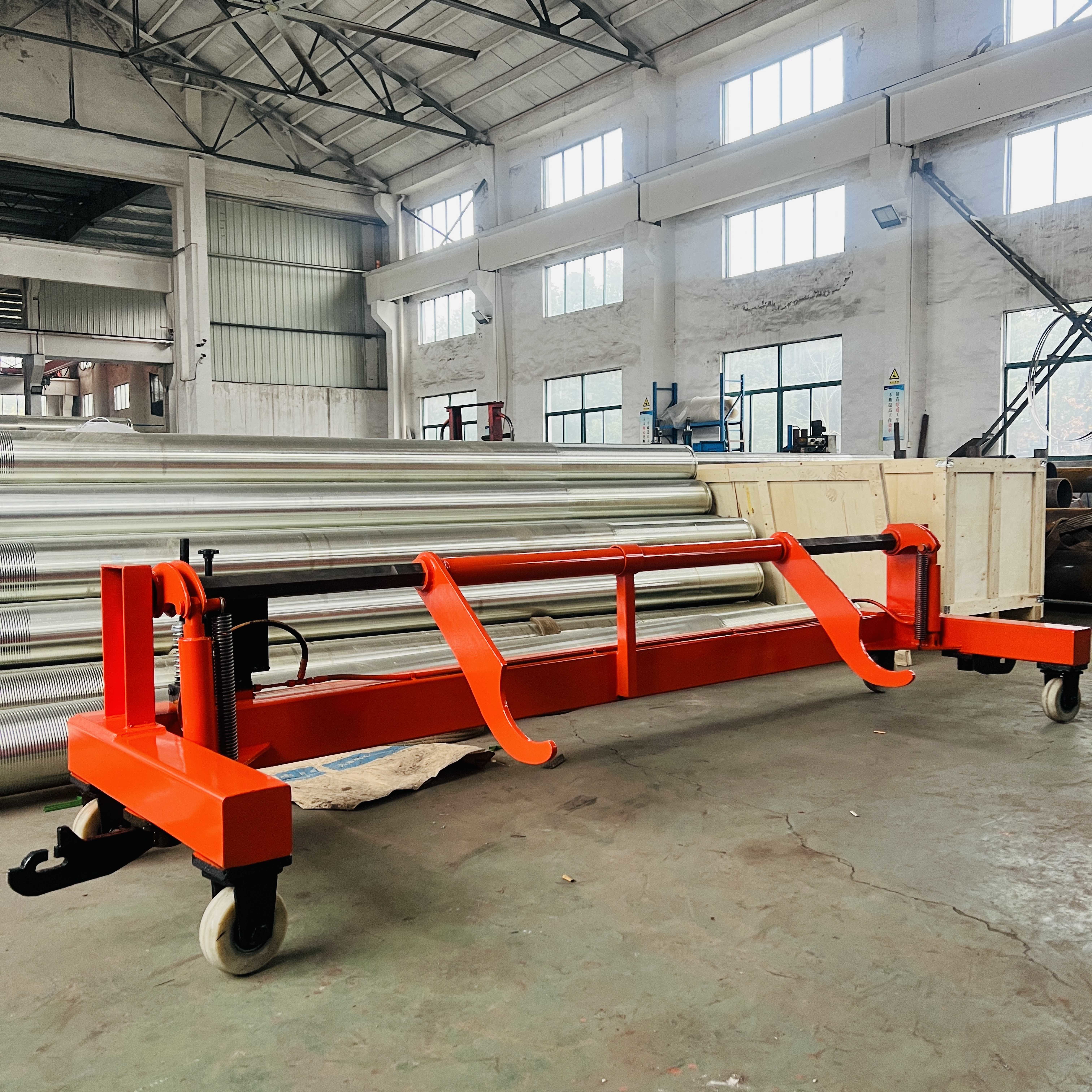

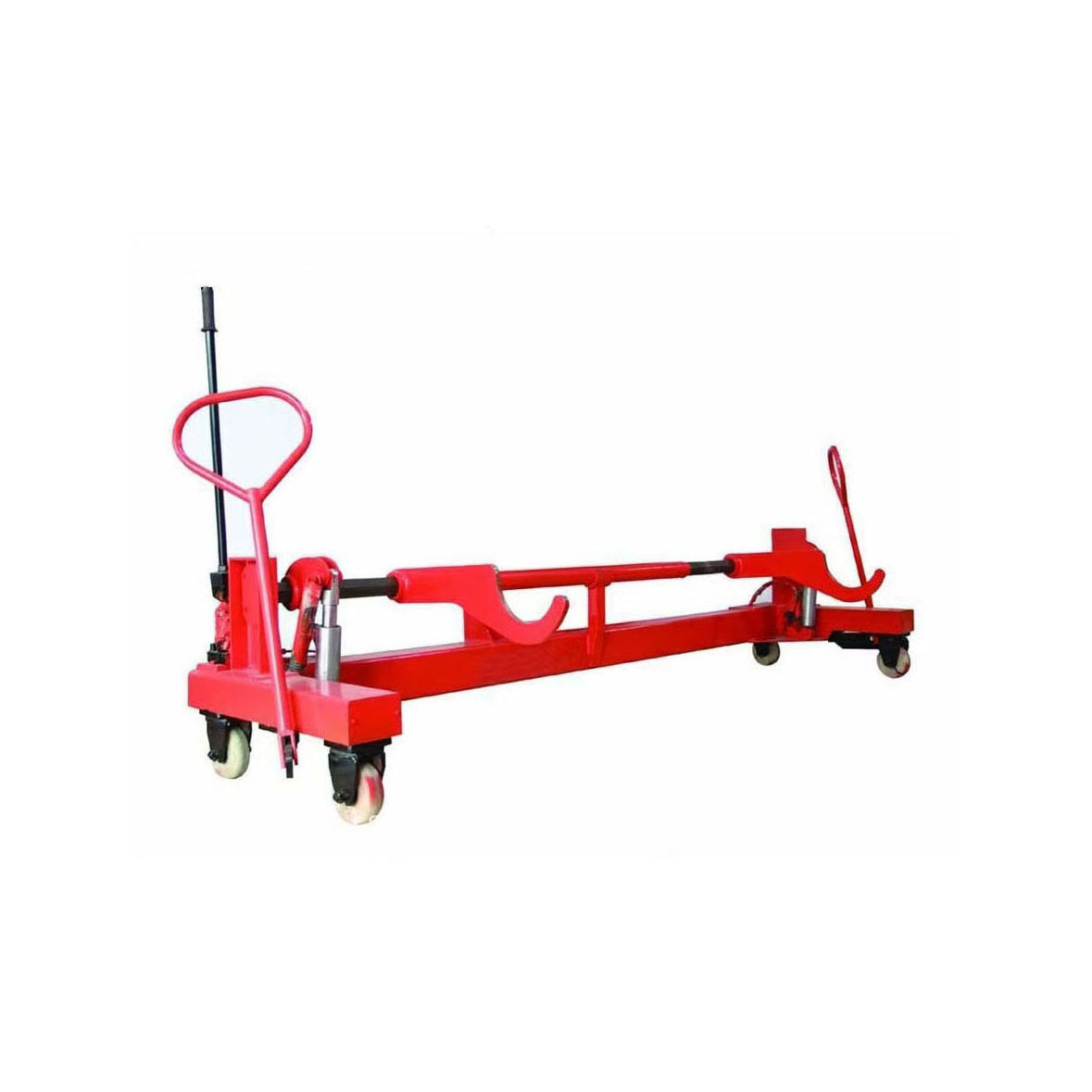

100mm Textile Warp Beam Trolley Hydraulic Weaving Four Wheel 100mm Textile Warp Beam Trolley Hydraulic Weaving Four Wheel 100mm Textile Warp Beam Trolley Hydraulic Weaving Four Wheel
Contact Now

100mm Textile Warp Beam Trolley Hydraulic Weaving Four Wheel

Minimum Order Quantity : 1 Set Price : $2,000.00 - $3,000.00/Pieces
Packaging Details : 1.Steel Pallet&amp;Stretch Wrapping Film for FCL(full container loaded)<br> 2.Wooden Box for LCL(less than container loaded) Delivery Time : 4-7 weeks
Payment Terms : L/C, T/T Supply Ability : 50 Set/Sets per Month
Place of Origin: Jiangsu, China Brand Name: Xianchuang
Model Number: BLC-05

Detail Information
Dimension (L X W X H): As Customized Warranty: 13 Months
Usage: Tools, Warp Beam Transport And Lift Material: Steel
Wheel: Four-wheel Name: Textile Hydraulic Lift Trolley
Applicable Industries: Weaving Factory Hydraulic Cylinders: Two
Hydraulic Unit: One Package: Wooden Box
Shipping Method: Negotiated Beam Barrel Diameter: 100-400mm
High Light:

Textile Warp Beam Trolley Hydraulic

,

Four Wheel Weaving Warp Beam Trolley

,

100mm Warp Beam Trolley

Product Description

100mm Textile Warp Beam Trolley Hydraulic Weaving Four Wheel 0
1. Mainly production process: according to the design drawings, precision welded and formed in sheet-metal workshop, with high-performance oil pump in accordance with the export quality standards to enhance the hydraulic performance. The surface is teated with anti-rust paint to meet the customer's production demand
2. Useful
* Suitable for Bottom Beam transporting, inserting in weaving Machines; warp beam weighing up to 1500kgs and an additional loading capacity of 200kgs for the heald frame. * Apply beam barrel Diameter Φ150 -Φ400mm, beam width 1500-3900 mm, Aluminum Flange Diameter Φ800 - Φ1250 mm.
3. Features
* Four wheel synchronization, any Angle to turn and walk
* Hydraulic vertical lifting of the heald frame, fast speed, high efficiency
* Double cylinder synchronous lifting, balanced and stable, beamwith heald frame on the machine at the same
time
* Lower bracket hook horizontal sliding adjustment of the upper shaft spacing
Name
Textile Hydraulic Lift Trolley
Place of Origin
Jiangsu, China
Brand Name
Xianchuang
Usage
Warp Beam Transport and Lift
Material
High-duty Steel Structure
Wheel
Four-wheel
Carrying Capacity
1000-1500kgs
Hydraulic Cylinders
Two
Hydraulic Unit
One
Weight
as per order
Beam flange diameter
Φ800-Φ1250mm
Beam barrel diameter
Φ100-Φ400mm
Product Classification
100mm Textile Warp Beam Trolley Hydraulic Weaving Four Wheel 2
Company Profile
100mm Textile Warp Beam Trolley Hydraulic Weaving Four Wheel 4
Certifications
100mm Textile Warp Beam Trolley Hydraulic Weaving Four Wheel 6
Exhibition
100mm Textile Warp Beam Trolley Hydraulic Weaving Four Wheel 8
Manufacturing Technique
100mm Textile Warp Beam Trolley Hydraulic Weaving Four Wheel 10
Product packaging
100mm Textile Warp Beam Trolley Hydraulic Weaving Four Wheel 12
FAQ
100mm Textile Warp Beam Trolley Hydraulic Weaving Four Wheel 14
