Customized Hydraulic Warp Beam Trolley Heald Frame Lifter And Carrier High Capacity

Minimum Order Quantity :	5 Pieces	Price :	$3,200.00/Pieces 5-29 Pieces
Packaging Details :	1.Steel Pallet&Stretch Wrapping Film for FCL(full container loaded)<br> 2.Wooden Box for LCL(less than container loaded)	Delivery Time :	4-7 weeks
Payment Terms :	L/C, T/T	Supply Ability :	50 Set/Sets per Month

Place of Origin:	Jiangsu, China	Brand Name:	Xianchuang
Model Number:	BLC-01

Detail Information
Dimension (L X W X H):	As Customized	Name:	Textile Hydraulic Lift Trolley
Warranty:	13 Months	Usage:	Tools, Warp Beam Transport And Lift
Structure:	Enclosed	Material:	Steel
Wheel:	Four-wheel	Weight:	As Per Order
Dimension:	As Customized	Feature:	Convenience And Effective
Beam Barrel Diameter:	100-400mm	Core Components:	Bearing, Pressure Vessel, Gear, Pump
Size:	Customer Size	Port:	NINGBO/SHANGHAI
High Light:	Customized Hydraulic Warp Beam Trolley , Heald Frame Lifter Warp Beam Trolley , 400mm Warp Beam Trolley

Product Description

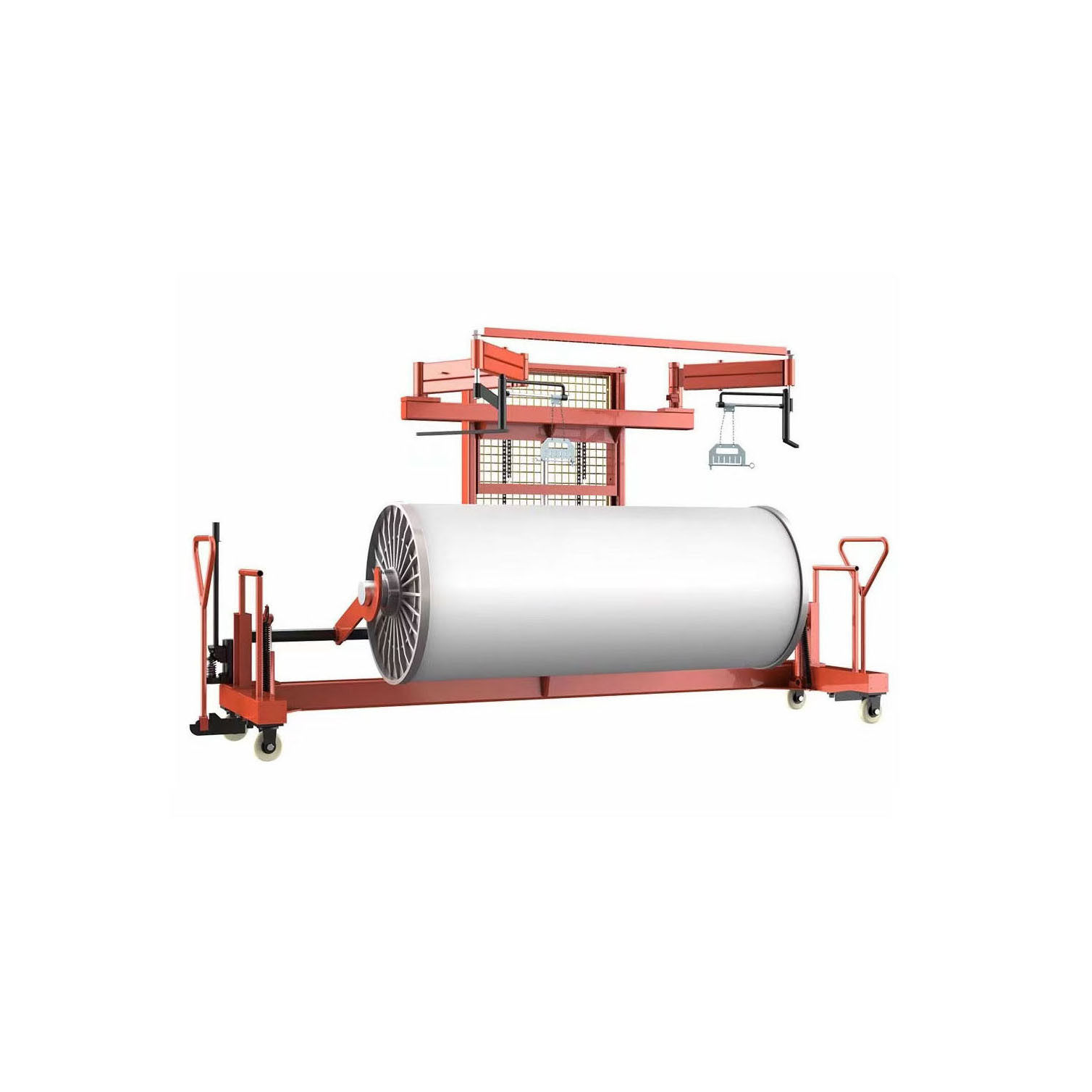

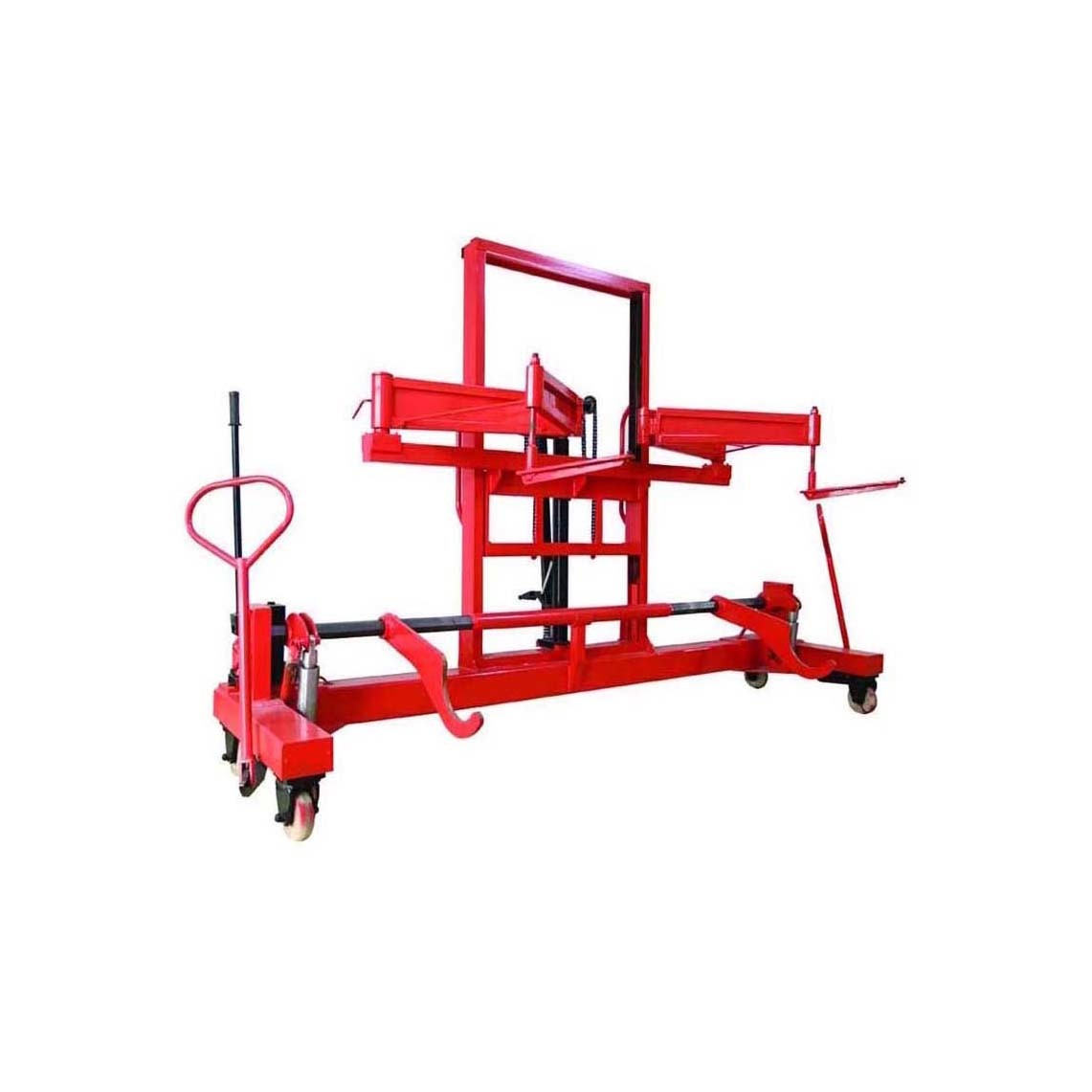

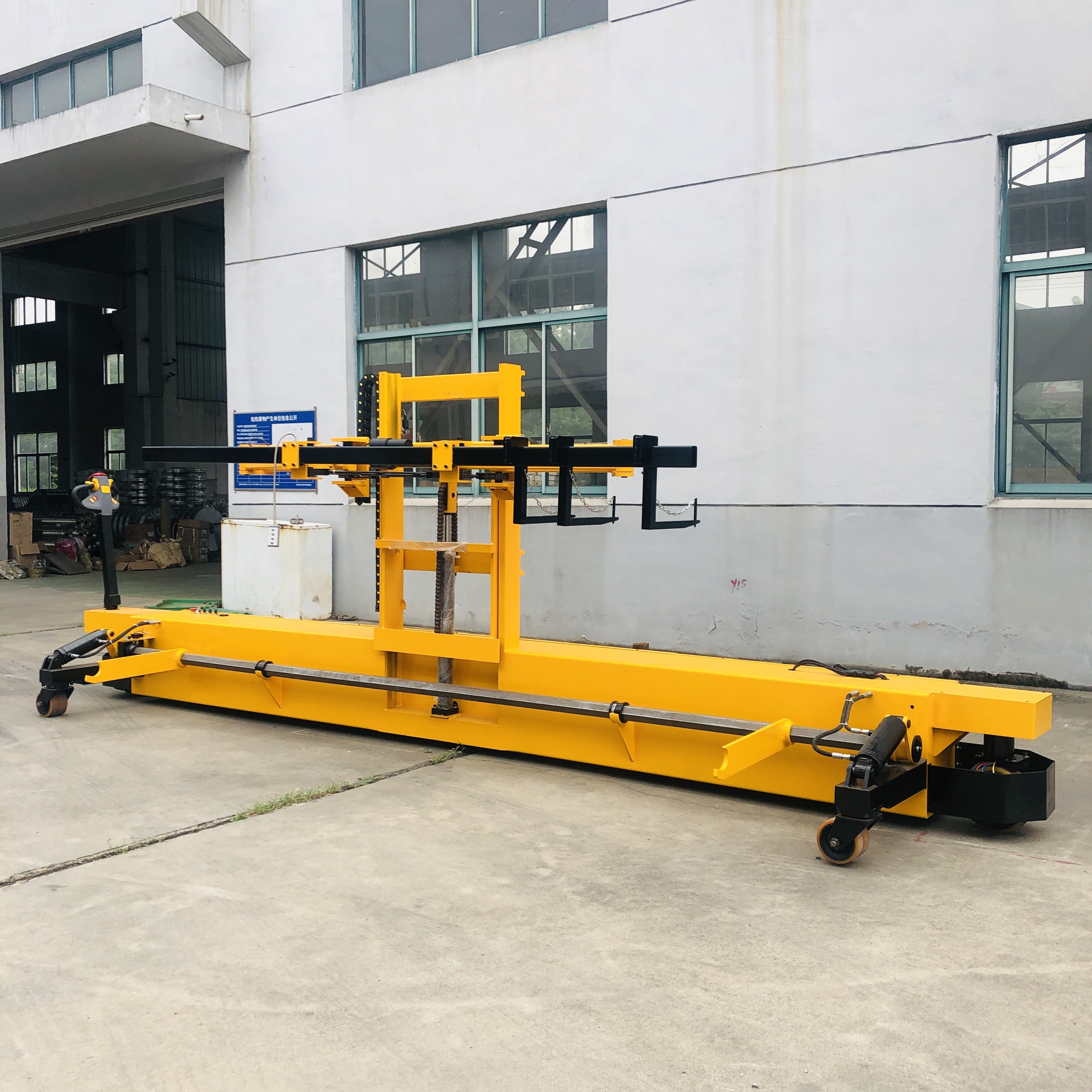

Motorized Hydraulic Heald Frame Beam Lifter and Carrier

Harness mounting device.The carrying arms are guided parallel to keep the warp tension even.

Separate steering by push/pull bar at both sides.
Steering in travelling direction fixable on the left and right side.
Two steered wheels and two guided wheels.

Name	Textile Hydraulic Lift Trolley
Place of Origin	Jiangsu, China
Brand Name	Xianchuang
Usage	Warp Beam Transport and Lift
Material	High-duty Steel Structure
Wheel	Four-wheel
Carrying Capacity	1000-1500kgs
Hydraulic Cylinders	Two
Hydraulic Unit	One
Weight	as per order
Beam flange diameter	Φ800-Φ1250mm
Beam barrel diameter	Φ100-Φ400mm
